Description
Achromatic doublet lenses consist of two optical components cemented together to form an achromatic doublet which is computer optimized to correct for on-axis spherical and chromatic aberrations. Our achromatic doublets are available with a single layer MgF2 coating or a broadband multi-layer coating for the visible spectrum. NIR achromatic doublets and edge blackened achromatic doublets are also available.

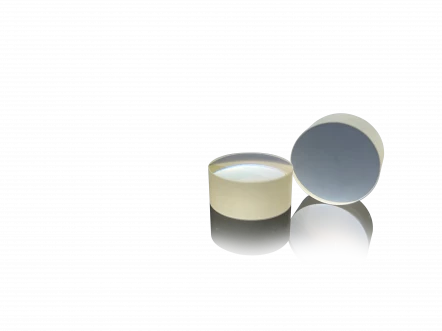

Optical achromatic lenses
Specifications |
|
|---|---|
| Mounting: | Mounted |
| Optimal Wavelength Range: | 400 – 700 nm |
| Diameter: | 25 mm |
| Focal Length: | 70 mm |
| Achromat Type: | Doublet |
| Material : | optical glass |
| Surface Quality : | 40/20 |
| Surface Accuracy : | 1/4Lambda |
| Centration: | 2arcmin |
| Coating: | AR@400-700NM |
Features
- Designed for 0° Angle of Incidence
- Less Than 1.75% Reflectance Per Surface @ 400 - 700nm
- VIS 0° and VIS-NIR Coated Achromats Also Available
Achromatic doublet lenses are far superior to simple lenses for multi-color ("white light") imaging. The two elements composing an achromatic doublet lens (literally, "a lens with no color") are paired together for their ability to correct the color separation inherent in glass. Having eliminated the problematic chromatic aberrations, achromatic doublet lenses become the most cost-efficient means for good polychromatic illumination and imaging.
Applications
Camera ,Imaging
Frequently Asked Questions
Achromatic doublet lenses are used for multi-color ("white light") imaging and good polychromatic illumination.
Achromatic doublet lenses are superior to simple lenses because they can correct for color separation and eliminate chromatic aberrations.
Achromatic doublet lenses are available with a single layer MgF2 coating or a broadband multi-layer coating for the visible spectrum. NIR achromatic doublets and edge blackened achromatic doublets are also available.
The achromatic doublet lenses have less than 1.75% reflectance per surface at the range of 400 - 700nm.
The achromatic doublet lenses are made of optical flint glass and crown glass, with a diameter ranging from 6mm to 200mm, focal length ranging from 50mm to 2000mm, and center thickness ranging from 2mm to 50mm. The surface quality, surface accuracy, clear aperture, and centration also vary based on customer's request.
