Description
Mounted Achromatic Triplet Lenses are designed as an air-spaced three-lens system with infinite conjugate ratios. These lenses offer minimal chromatic and spherical aberrations, making them ideal for fluorescence and spectroscopy research applications.
The lenses come with black anodized aluminum housing, providing robustness and easy integration into optical setups. Custom size triplets are available upon request, and optional mounting threads and AR coatings are also offered. These mounted achromatic triplet lenses are a cost-effective and convenient solution for correcting primary aberrations.

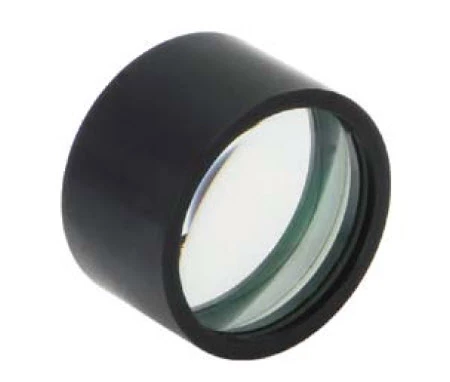

14ATL56-35 Mounted Achromatic Triplet Lens
Specifications
| Mounting: | Mounted |
|---|---|
| Optimal Wavelength Range: | 400 – 700 nm |
| Diameter: | 41 mm |
| Focal Length: | 56 mm |
| Achromat Type: | Triplet |
| Diameter Tolerance: | +0.0, -0.10 mm |
| Focal Length Tolerance: | ±1 % |
| Centration: | <3 arc minutes |
| Clear Aperture: | >90% of diameter |
| Surface Quality: | 60-40 scratch & dig |
| Wavefront Distortion: | λ/4 @ 632.8 nm |
| Housing Material: | black anodized alunimium |
| Mounting Thread: | optional |
Download Data Sheet
Features
- Air-spaced three-lens design with infinite conjugate ratios
- AR coatings available upon request
- Minimal chromatic and spherical aberrations
- Custom size triplets available upon request
- Mounted in robust aluminum housing for easy handling and integration
Applications
- Fluorescence and spectroscopy research
- Optical setups requiring minimal aberrations
- Precision imaging and focusing applications
- Scientific and industrial applications in visible wavelength range
Frequently Asked Questions
What is the 14ATL56-35 Acromatic Triplet used for?
The 14ATL56-35 Acromatic Triplet is commonly used in fluorescence and spectroscopy research applications.
What is the design of the 14ATL56-35 Acromatic Triplet?
The 14ATL56-35 Acromatic Triplet has an air-spaced computer optimized triplet design that corrects all primary aberrations.
What are the special options available for the 14ATL56-35 Acromatic Triplet?
The special options available for the 14ATL56-35 Acromatic Triplet include mounting threads, triplets of greater apertures, and AR coatings.
What is the housing material of the 14ATL56-35 Acromatic Triplet?
The housing material of the 14ATL56-35 Acromatic Triplet is black anodized aluminium.
How can I order the 14ATL56-35 Acromatic Triplet?

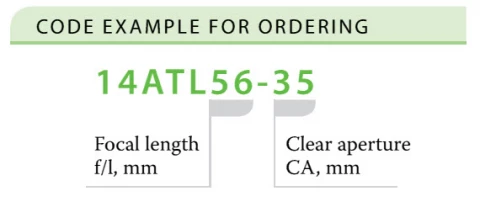

To order the 14ATL56-35 Acromatic Triplet, you need to provide the code example which is 14ATL56-35.
