Yb:CaF2 Laser Crystal

Nanjing Crylink Photonics Co.,Ltd
REQUEST QUOTE

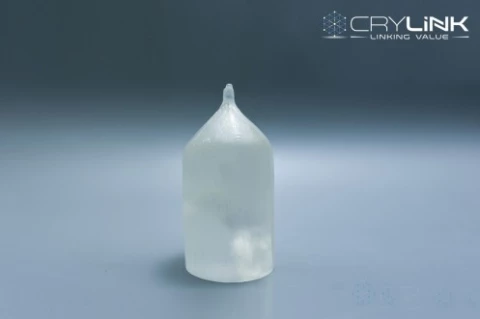

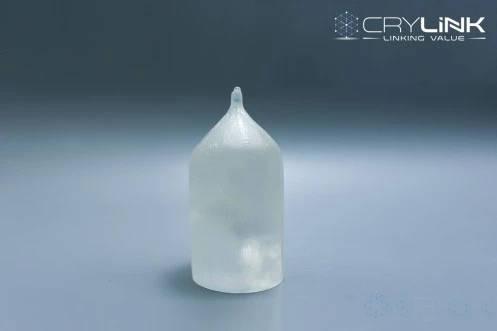

Yb:CaF2 Laser Crystal

OVERVIEW

Yb: CaF2 is a new laser crystal which is formed by doping Yb into CaF2. The main emission peak are reported to be at 1033 nm and 1050 nm with the emission linewidth of 70 nm. Because of the absence of undesired loss transitions such as up-conversion, excited state-absorption and concentration quenching, their low quantum defect, a comparably long fluorescence lifetime, high thermal conductivity and wide emission linewidth, ytterbium-doped CaF2 is preferably utilized for high-power diode-pumped systems and laser amplifiers with high optical-to-optical conversion efficiencies, diode-pumped femtosecond (fs) lasers and amplifiers are one of the important potential application. Furthermore, at the current point of view the crystal growth technologies of Yb: CaF2 promise to be scalable, which allows for the production of excellent optical quality material.

SPECIFICATION

  • Type Of Crystal: TeO2
  • Crystal Diameter: 6 mm
  • Crystal Length: 20 mm
  • AR Coating: One side
  • Concentration Tolerance (atm%): 0.5 mol % ~ 30 mol %
  • Emission Band Width: 70 nm
  • Orientation: [111] or [100] < ±0.5°
  • Laser Transition: 2F5/2→2F7/2
  • Laser Wavelength: 1033/1050
  • Absorption Coefficient: 1.0 cm-1 ~ 7 cm-1
  • Pump Wavelength: 980 nm
Download Data Sheet

Applications

Kerr-lens mode-locked oscillator
Yb: CaF2 thin-disk laser
Diode-pumped Yb: CaF2 amplifier

KEY FEATURES

Wide emission linewidth
Low quantum defect
Comparably long fluorescence lifetime
High thermal conductivity
Thermo-optical coefficient
