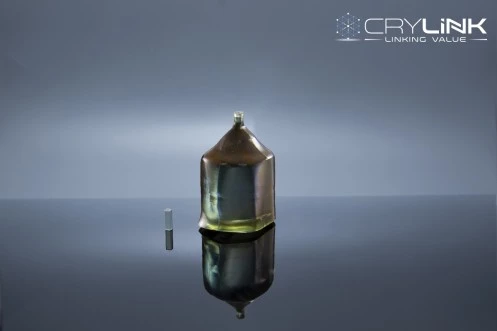

Nd:YVO4 Laser Crystal

Description

Nd-doped YVO4 crystal is an excellent laser crystal for making the diode-pumped solid lasers. The main and greatest advantages of Nd: YVO4 are high absorption coefficient, big stimulated emission cross-section and wide absorption band, the absorption peak is about 808 nm. Because of these advantages, small crystal can be used to make smaller laser device. The another feature of Nd: YVO4crystal is this uniaxial, which makes it emit linearly polarized lights. Combining with frequency-doubled crystal, all-solid-state lasers with green, blue and red wavelength can be realized.

Specifications

Type Of Crystal:	Nd:Ce:YAG
Crystal Diameter:	3 mm
Crystal Length:	8 mm
AR Coating:	One side
Materials:	Nd: YVO4
Concentration Tolerance (atm%):	0.5%, 1.1%, 2.0%, 3.0%
Orientation:	A-cut or C-cut
Laser Wavelength:	1064nm, 1342nm
Pump Wavelength:	808nm
Emission Cross Section:	25×10-19cm2@1064nm
Gain Bandwidth:	0.96nm @1064nm
Gain Bandwidth:	0.96 nm (257 GHz) @ 1064 nm

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High absorption coefficient
Large stimulated emission cross-section
Wide absorption bang
High damage threshold
Uniaxial crystal
Good physical and optical property

Applications

Optical Communication

457nm laser

Holography

671nm laser

Request Quote

To: Crylink
Re: Nd:YVO4 Laser Crystal

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Crylink
On FindLight:: since 2019

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the advantages of Nd:YVO4 crystal?

The main advantages of Nd:YVO4 crystal are high absorption coefficient, big stimulated emission cross-section, and wide absorption band. It has a high damage threshold and emits linearly polarized light.

What are the physical and chemical properties of Nd:YVO4 crystal?

Nd:YVO4 crystal has a tetragonal crystal structure, a density of 4.22 g/cm3, and lattice constants of a=b=7.12 and c=6.29. It has a melting point of 1825°C, an absorption coefficient of 0.02 cm-1 at 1064 nm, and a thermal conductivity of 7 W·m-1·K-1 at 25°C.

What is Nd:YVO4 crystal used for?

Nd:YVO4 crystal is an excellent laser crystal for making diode-pumped solid lasers. It has applications in optical communication, holography, military field, medical test, and materials processing.

What is the absorption peak of Nd:YVO4 crystal?

The absorption peak of Nd:YVO4 crystal is about 808 nm.

What is the damage threshold of Nd:YVO4 crystal?

The damage threshold of Nd:YVO4 crystal is greater than 1 GW/cm2 for 1064 nm, TEM00, 10 ns, and 10 Hz (AR-coated).
