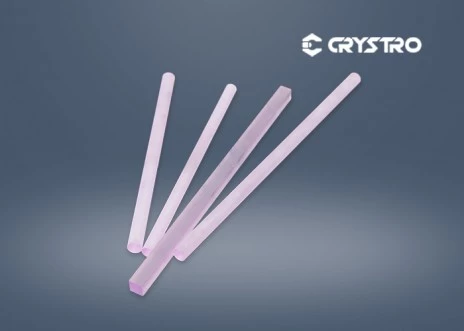

Nd:YAG Crystal Rod
Description
Nd:YAG is a common laser crystal.Because of its many basic performance,Nd:YAG is still often used in near-far-infrared solid-state lasers.
Nd:YAG Crystal Rod
Specifications |
|
|---|---|
| Type Of Crystal: | Nd:YAG |
| Crystal Diameter: | 2,5,6,8,10,12 mm |
| Crystal Length: | up to 190 mm |
| AR Coating: | Both sides |
| Dimension: | D3 - D40 mm |
| Nd Dopent Level: | 0.3-1.5% |
| Wave Front Distortion: | L/8@632 |
| Diameter Tolerance: | ±0.05mm |
| Surface Quality: | 10/5 |
| Coating : | R<0.2%@1064nm |
Features
High gain
Low threshold
High efficiency
Low loss at 1064nm
High Optical quality
Applications
Applicable to many laser working modes
(continuous,pulse,Q-switch,mode lock)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Nd:YAG crystal rod is commonly used in near-far-infrared solid-state lasers due to its many basic performance features.
Nd:YAG crystal rod has high gain, low threshold, high efficiency, low loss at 1064nm, and high optical quality.
Nd:YAG crystal rod is applicable to many laser working modes, including continuous, pulse, Q-switch, and mode lock.
Nd:YAG crystal rod exhibits high gain, low threshold, high efficiency, and low loss at 1064nm, making it ideal for various laser applications.
Nd:YAG is a common laser crystal that is frequently used in near-far-infrared solid-state lasers due to its excellent basic performance.
