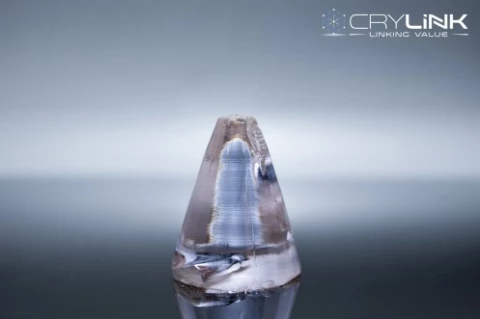

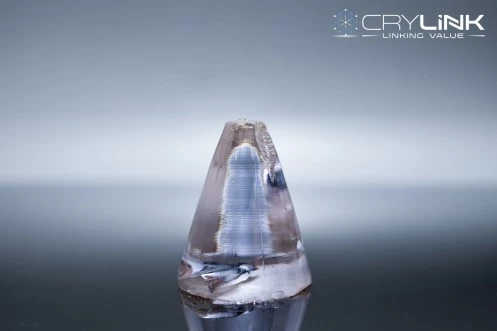

Nd:YAG Laser Crystal
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Description
The Nd:YAG laser crystal, a mature and well-developed technology, is created by doping Nd ions into a YAG crystal. This process results in a robust and versatile laser medium with absorption bandwidths ranging from 730-760 nm and 790-820 nm. Typically, Nd:YAG crystals are pumped using either a flash-tube or a laser diode. The most common laser emission peak is at 1064 nm; however, with specific modifications, emissions at 946 nm, 1120 nm, 1320 nm, and 1440 nm can also be achieved. By employing techniques such as Q-switching and mode-locking, the laser can produce different wavelengths (e.g., 532 nm, 266 nm, 213 nm) and pulse widths (10-25 ns), making it highly adaptable for various applications.
Nd:YAG crystals are widely used across numerous fields due to their flexibility and performance. In biophysics, medicine, and military applications, these crystals provide reliable and precise laser outputs. They are also valuable in scientific research and architectural projects, offering a range of wavelengths and pulse widths to suit specific needs. High concentration doped crystals are preferred for pulse laser applications, while low concentration doped crystals are more suitable for continuous wave output, providing users with options tailored to their operational requirements.
The Nd:YAG laser crystal is renowned for its excellent optical, mechanical, and physical properties. Its high gain coefficient and low lasing threshold, combined with a wide absorption bandwidth, make it a preferred choice for various laser applications. This adaptability and efficiency ensure that Nd:YAG crystals remain a cornerstone in the development and advancement of laser technology.
Nd:YAG Laser Crystal
Specifications |
|
|---|---|
| Type Of Crystal: | Nd:YAG |
| Crystal Diameter: | 8 mm |
| Crystal Length: | 165 mm |
| AR Coating: | One side |
| Nd Concentration Tolerance (atm%): | 0.1- 2.5(+/-0.1)atm% |
| Orientation: | [001] or [110] or [111] <±0.5° |
| Damage Threshold: | >750 MW/cm2@1064 nm 10 ns 10 Hz |
| Thermal Conductivity/(W·m-1·K-1@25°C): | 0.14 W |
| Laser Transition: | 4F3/2 →> 4I11/2 |
| Photon Energy: | 1.86×10-19 J |
| Laser Transition Wavelength, λl (nm): | 1064 |
| Fluorescence Lifetime: | 230 µs |
Features
- High Gain Coefficient: Achieve efficient laser amplification with minimal input energy.
- Low Lasing Threshold: Initiate lasing at lower energy levels, enhancing efficiency.
- Excellent Optical, Mechanical, and Physical Properties: Ensures durability and performance in various applications.
- High Slope Efficiency: Converts input power to output power effectively.
- Wide Absorption Bandwidth: Allows for versatile pumping options, enhancing adaptability.
Applications
- Laser Rangefinder: Precision distance measurement for various fields.
- Laser Cosmetic Instrument: Utilized in dermatological and cosmetic procedures.
- Laser Marker: High precision marking for industrial use.
- Laser Medicine: Used in medical treatments and surgeries.
- Optical Communication: Enhances data transmission with optical signals.
- Radar and Ranging: Critical for navigation and detection systems.
- Holography: Creation of three-dimensional images for various applications.
- Medical Applications: Broad use in medical diagnostics and treatments.
Frequently Asked Questions
Nd:YAG laser crystal has a huge application in biophysics, medicine, military, machine, scientific research, and architecture. It is commonly used in material processing, optical communication, radar and ranging, holography, medical applications, laser rangefinder, laser cosmetic instrument, laser marker, and laser medicine.
Nd:YAG laser crystal has a cubic crystal structure, a density of 1950°C, and a melting point of 0.14W. It also has a high gain coefficient, low lasing threshold, excellent optical, mechanical, and physical properties, and wide absorption bandwidth.
The typical laser emission peak is 1064 nm, but the wavelength of 946 nm, 1120 nm, 1320 nm and 1440 nm lasers can also be emitted through some measures.
Nd:YAG is a laser crystal obtained by doping Nd ion into YAG crystal, which has a wide absorption bandwidth and is usually pumped by flashtube or laser diode.
What is the difference between high concentration doped crystal and low concentration doped crystal?
The high concentration doped crystal is applied into pulse laser, while the low concentration doped one is usually used in continuous wave output.
