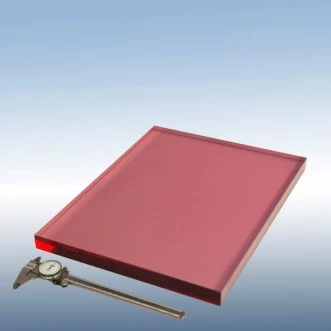

NAP Neodymium-Doped Phosphate Glass
Description
NAP Neodymium-doped phosphate glass is created specially for high average power applications. NAP2 and NAP4 are two types of new laser glass with high thermal shock resistance properties, which have higher thermal conductivity, lower coefficient of thermal expansion and modest emission cross section. They are served for laser systems with high repetition rates and high energy rates and high energy, which have broad applications in laser ranger, laser peening and pump laser for OPCPA systems.
NAP Neodymium-Doped Phosphate Glass
Specifications |
|
|---|---|
| Type Of Crystal: | Other |
| Crystal Diameter: | 5 mm |
| Crystal Length: | 5 mm |
| AR Coating: | Both sides |
| Effective Bandwidth (nm): | 25.4 |
| Type: | NAP2 |
| Fluorescence Peak Wavelength(nm): | 1052 |
| Dn/dt(10-6/℃)(20~100℃）: | -9 |
Features
- High thermal shock resistance properties
- Higher thermal conductivity
- Lower coefficient of thermal expansion
- Modest emission cross section
Applications
- High average power laser
- Laser ranger
- Pump laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Nanjing Metalaser Photonics Co.,Ltd. -
On FindLight:
since 2018
Frequently Asked Questions
NAP Neodymium-doped phosphate glass is used in high average power laser, laser ranger, and pump laser for OPCPA systems.
NAP2 and NAP4 are two types of new laser glass with high thermal shock resistance properties, higher thermal conductivity, lower coefficient of thermal expansion, and modest emission cross section.
The optical specifications of NAP2 and NAP4 include absorption coefficient, non-linear refractive index coeff., refractive index, Abbe value, and dn/dt.
The thermal specifications of NAP Neodymium-doped phosphate glass include transformation temp., softening temp., coeff. of linear thermal expansion, thermal conductivity, and specific heat.
NAP Neodymium-doped phosphate glass is a type of laser glass created specifically for high average power applications.
