Description

Calcium Fluoride (CaF2) Crystals are renowned for their exceptional optical properties, making them a popular choice in various high-performance applications. These crystals are particularly noted for their broad transparency range, spanning from the ultraviolet (UV) to the infrared (IR) spectrum. This unique characteristic allows CaF2 to be effectively used in a wide array of optical components, where clarity and precision are paramount.

One of the standout features of CaF2 is its ability to maintain transparency across an extensive wavelength range, approximately from 0.13 to 10 micrometers. This broad spectrum makes it an ideal material for spectroscopic windows, where accurate light transmission is critical. Additionally, pure grades of Calcium Fluoride are highly sought after for their utility in UV applications, particularly as windows for UV Excimer lasers. These lasers are integral in various scientific and industrial processes, where precision and reliability are crucial.

The optical quality of CaF2 is further highlighted by its excellent surface properties, including scratch resistance and minimal dig, ensuring durability and longevity in demanding environments. The material's flatness and parallelism specifications ensure that it meets the rigorous standards required for high-precision optical systems. Overall, Calcium Fluoride crystals are a versatile and indispensable component in the optics industry, valued for their exceptional performance and adaptability across a range of applications.

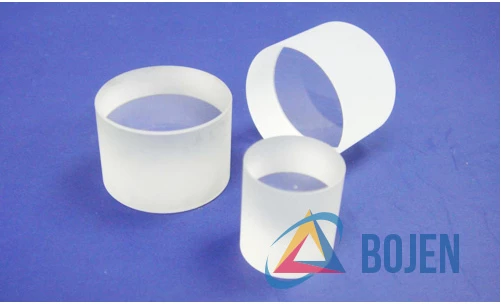

Calcium Fluoride CaF2 Crystal

Specifications

Type Of Crystal: CaF2
AR Coating: Both sides
Scratch & Dig: 80/50~20/10
Flatness: λ/2~λ/8
Parallelism: 3 arc min~30 arc sec
Wavelength Range: 0.13–10 µm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wide Wavelength Range: Calcium Fluoride (CaF2) windows are transparent over an extremely wide range of wavelengths, from 0.13 to 10 micrometers, making them highly versatile for various applications.
  • High Optical Quality: The scratch and dig specifications range from 80/50 to 20/10, ensuring high optical quality for precise applications.
  • Excellent Flatness: The flatness of CaF2 windows ranges from λ/2 to λ/8, providing superior optical performance.
  • Precise Parallelism: With parallelism specifications from 3 arc minutes to 30 arc seconds, these windows offer excellent alignment capabilities.
  • IR Applications: Widely used in infrared (IR) applications, CaF2 windows serve as spectroscopic windows due to their broad transmission range.
  • UV and Excimer Laser Applications: Pure grades of Calcium Fluoride are particularly useful in ultraviolet (UV) applications, including as windows for UV Excimer lasers.

Applications

  • Spectroscopic Windows: Calcium fluoride (CaF2) is widely used for spectroscopic windows due to its transparency over a broad wavelength range from 0.13 to 10 micrometers.
  • Infrared Applications: CaF2 is frequently utilized in infrared applications, making it a popular choice for IR optics.
  • UV and Excimer Laser Windows: Pure grades of calcium fluoride are especially valuable in ultraviolet applications, including use as UV excimer laser windows.
  • Optical Components: CaF2 is used in various optical components due to its low refractive index and high transmission properties.

Frequently Asked Questions

What is the wavelength range that the Calcium Fluoride window is transparent over?
The Calcium Fluoride window is transparent over an extremely wide range of wavelength 0.13-10um.
What are the applications of the Calcium Fluoride window?
The Calcium Fluoride window has widespread IR application as spectroscopic windows, especially pure grades of Calcium Fluoride find useful application in the UV and as UV Excimer laser windows.
What are the scratch and dig specifications for the Calcium Fluoride window?
The scratch and dig specifications for the Calcium Fluoride window are 80/50~20/10.
What is the flatness specification for the Calcium Fluoride window?
The flatness specification for the Calcium Fluoride window is λ/2~λ/8.
What is the parallelism specification for the Calcium Fluoride window?
The parallelism specification for the Calcium Fluoride window is 3arc min~30 arc Sec.

Got more questions? Use the inquiry form to ask the supplier directly.
