OSCOM TECHNOLOGY - Small Special Fiber Splicer - XQ7230
Description

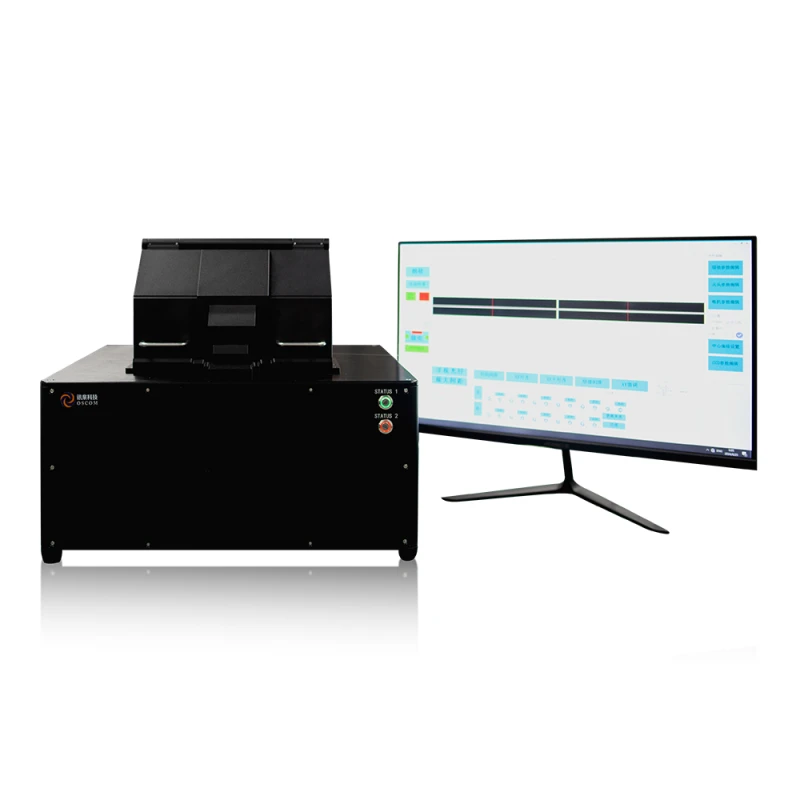

XQ7230B is a small special fiber splicing system that based on electric heat source as heat source, it is designed independently by OSCOM. The system is mainly used in the splicing process of various optical fiber products.

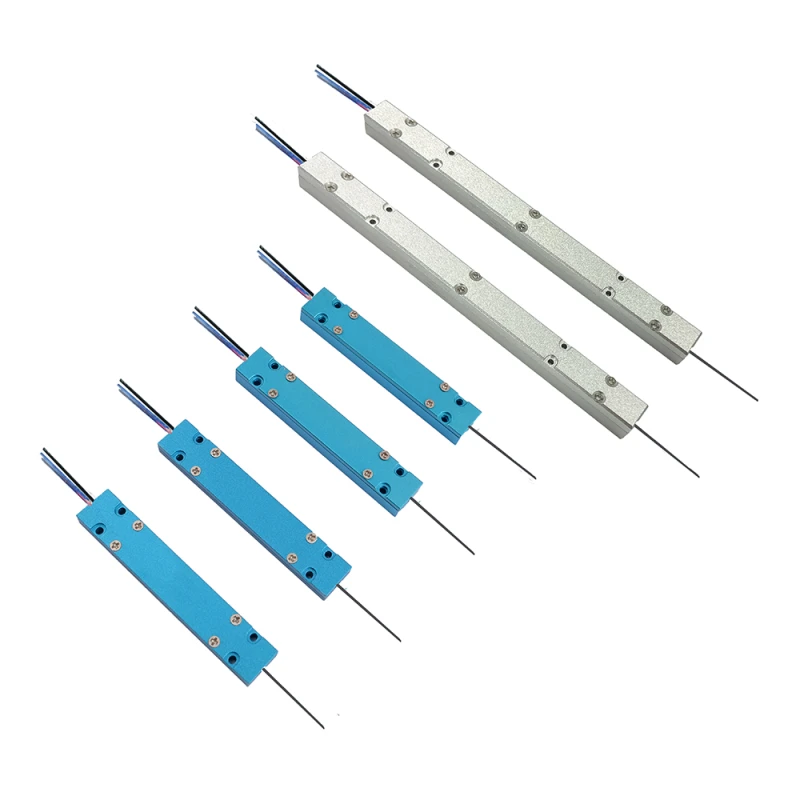

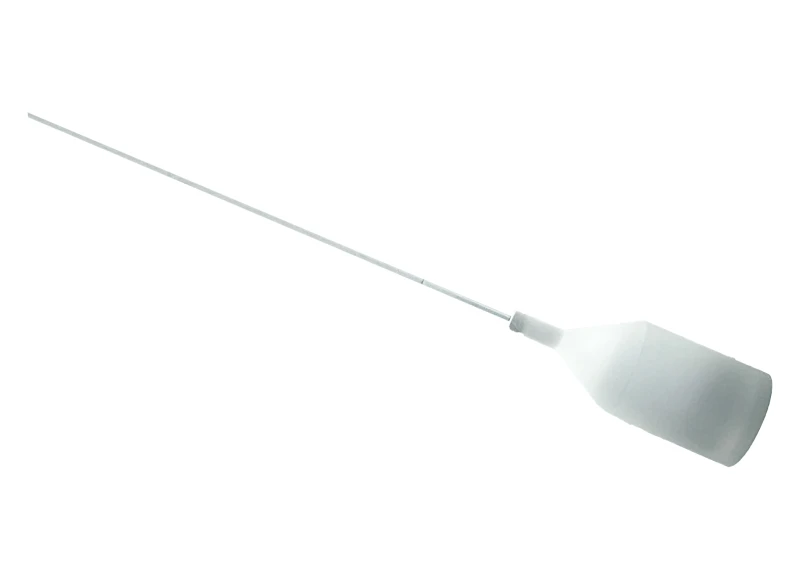

For example, in the process of making combiner, the splicing of fiber bundles, the splicing of coarse fibers, and the splicing of fibers and end caps; It can realize the splice of combiner cone waists (include 2x1, 3x1, 7x1, (6+1)x1, (18+1)x1, 19x1 etc.) and the output fiber.
The accepted fiber sizes are Φ400μm to Φ800μm, and can be customized from Φ125μm to Φ1200μm, or more than Φ1200μm if there are special requirements.
OSCOM TECHNOLOGY - Small Special Fiber Splicer - XQ7230
Specifications |
|
|---|---|
| Supported Fiber Diameter: | 125 – 1200 um |
| Parameter: | XQ7230B |
| Heat Source: | Electric heat source |
| Heat Source Temperature Field: | 800-1800℃ |
| Heat Source Position: | Z moving direction |
| Accepted Fiber Sizes: | 125-1200μm |

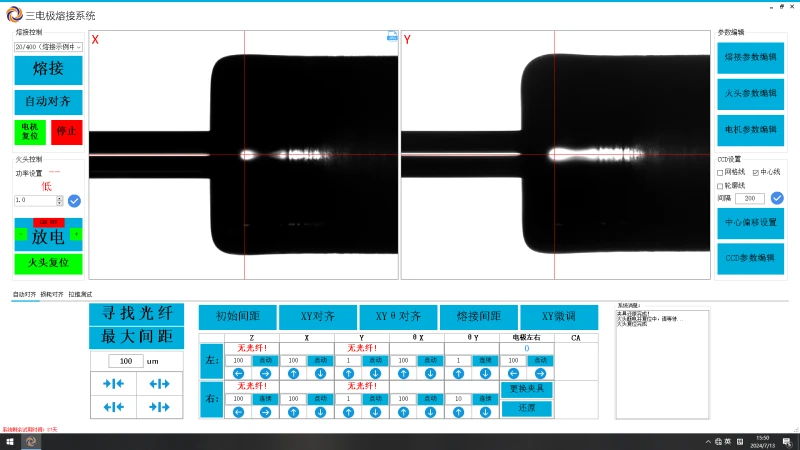

| CCD View: | 2.8x2.1mm or customization |
| Panoramic View: | X/Y independent side imaging |
| Axis Accuracy Of X/Y Axis: | 1μm |
| Travel Ranges Of X/Y Axis: | ±5.5mm |
| Axis Accuracy Of θ Axis: | 0.1° |
| Axis Range Of θ Axis: | ±5° |
| Accuracy Of Z Axis: | 1μm |
| Travel Ranges Of Z Axis: | 40mm |
| Alignment Mode: | Automatic alignment of cladding |
| Clamping Method: | Magnetic adhesion |
| Splicing Mode: | Standard splicing/User-defined splicing |
| Operating Environment: | Temperature: 0-40℃/Humidity: 5-95%RH |
| Power Supply: | AC100-240V/50-60Hz |
| Dimensions (LxWxH): | 470x395x360mm |
| Weight: | 42Kg |
Applications
Industrial Lasers、 Optical Fiber Communication、 Optical Fiber Sensing、 Biomedicine、 Laser Radar、 Military Industry
