Description
The QBD-mini Pockels cell drivers are Q-switch drivers, relatively simple, allow to change output voltage level and pulse repetition rate. They provide pulses with fast leading edge (< 20 ns) and relatively slow (some μs) trailing edge.

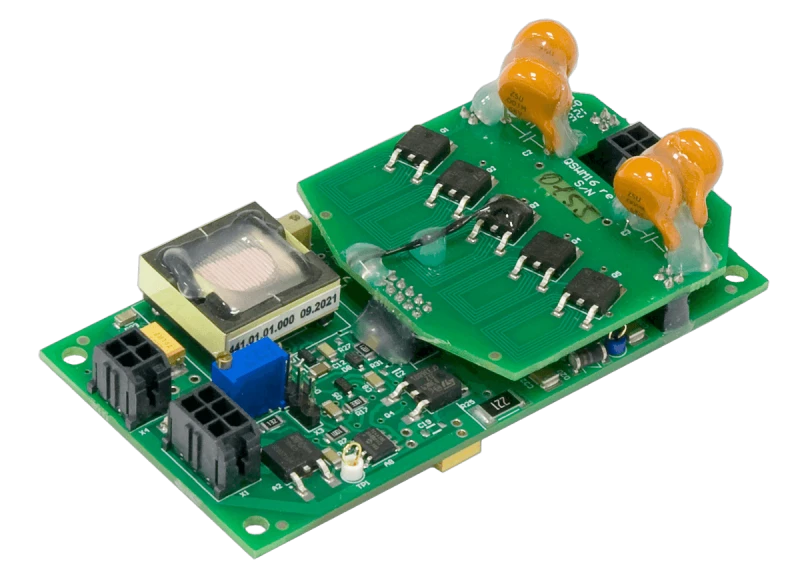

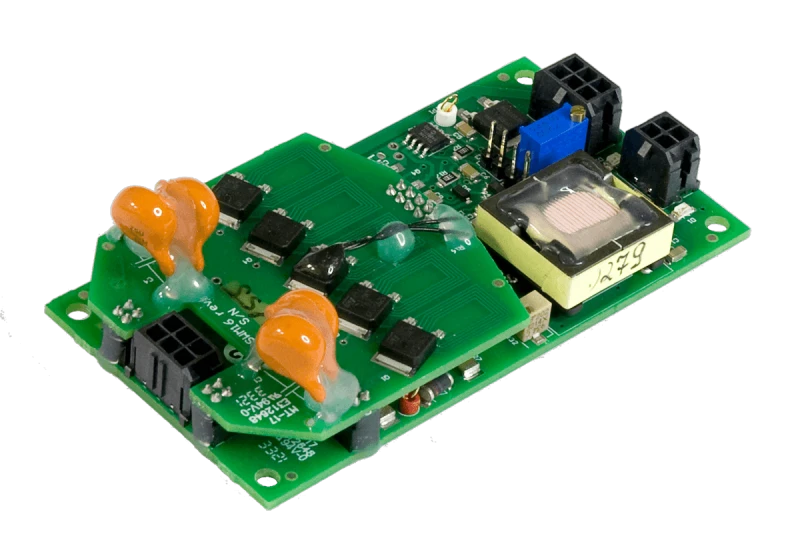

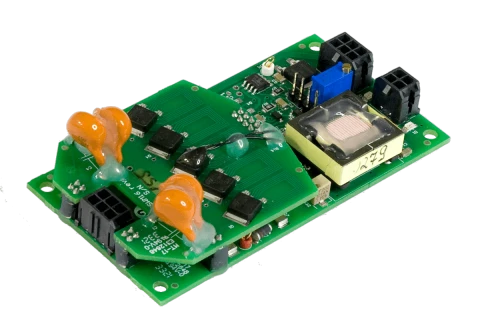

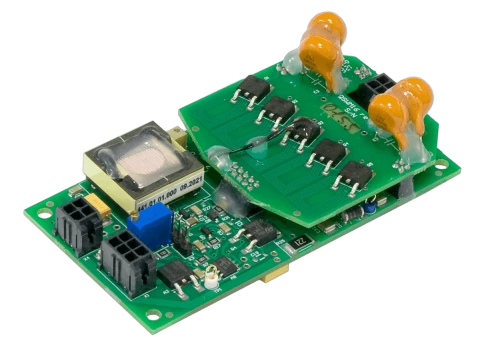

They are meticulously engineered to provide precise control and adaptability for various applications. Designed with a compact form factor, these drivers are ideal for integration into systems where space is at a premium. The board layout features three Molex microfit connectors, two jumpers, and a trimmer potentiometer, ensuring a streamlined and efficient setup process. This thoughtful design facilitates easy configuration and adjustment, enabling users to achieve optimal performance with minimal effort.
One of the standout elements of the QBD-mini Pockels cell drivers is the **"ENABLE" JUMPER**, which offers users the flexibility to choose between using the jumper or the "ENABLE" signal. This dual-option setup allows for greater adaptability in various operational environments. Similarly, the **"HV PROGRAM" JUMPER AND TRIMPOT** provide a straightforward method for setting the output voltage, enhancing user control over the device's functionality.
These drivers are built to withstand a range of operating conditions, with an operational temperature range from +10°C to +40°C, and they can be customized for broader temperature ranges upon request. The compact size of 90x50x20 mm and lightweight design at 0.1 kg make these drivers an excellent choice for diverse applications where both performance and space efficiency are crucial.
We offer also other Pockels cell drivers:
Tiny 1-3 ns Fast Q-switch QBD nano
6 kV QBU Driver with Both Edges Fast
We offer laboratory drivers in a case, which have user-friendly interface. More 60 models of Pockels cell drivers in our portfolio. Please, don't hesitate to ask us for details!
Q-switch Pockels Cell Driver, 4 kV, 100kHz Repetition Rate - QBD-mini
Specifications |
|
|---|---|
| Input: | +24V DC |
| Risetime Or Falltime: | <20ns |
| Recovery Time: | 5-10us typ. |
| HV Pulse Amplitude: | up to 4 kV |
| Repetition Rate: | up to 100kHz |
| Jitter: | 10 ns |
| Delay Time: | 1 us |
| Size (LxWxH): | 90x50x20 mm |
| Weight: | 0,1 kg |
Features
- Compact Design: The QBD-mini Pockels cell drivers feature a compact board layout with dimensions of 90x50x20 mm and a lightweight build of 0.1 kg, making it ideal for space-constrained applications.
- Flexible Connection Options: Equipped with three Molex microfit connectors, two jumpers, and a trimmer potentiometer, providing versatile connection configurations for different operational needs.
- Enable Functionality: The "ENABLE" jumper can be used as an alternative to the "ENABLE" signal (PIN4 of INTERFACE), offering flexibility in control options. Ensure not to use both simultaneously.
- High Voltage Programming: Utilize the "HV PROGRAM" jumper and trimpot to adjust the output voltage without the need for an external "HV PROGRAM" signal (PIN6 of INTERFACE). Avoid using both the jumper and signal at the same time.
- Part Number Variations: Available in multiple configurations to suit different voltage requirements:
- QBD-mini-4016-DN / QBD-mini-4016-UP: 4000V max, 1600V min
- QBD-mini-3012-DN / QBD-mini-3012-UP: 3000V max, 1200V min
- QBD-mini-2008-DN / QBD-mini-2008-UP: 2000V max, 800V
Applications
Q-switch drivers : relatively simple, allow to change output voltage level and pulse repetition rate. They provide pulses with fast leading edge (< 20 ns) and relatively slow (some μs) trailing edge.
