Description
QBX-08 Pockels Cell Driver
The QBX-08 is a specialized Pockels cell driver meticulously engineered for scenarios where the voltage on the Pockels cell needs to be continuously adjustable. This driver is constructed using a voltage amplifier schematic, with a standard maximum output voltage of 800V. However, for more tailored applications, other voltage configurations ranging from lower voltages up to 1600V are available upon request. The QBX-08 boasts an impressive amplification factor of 100:1, ensuring precision and reliability in voltage control.

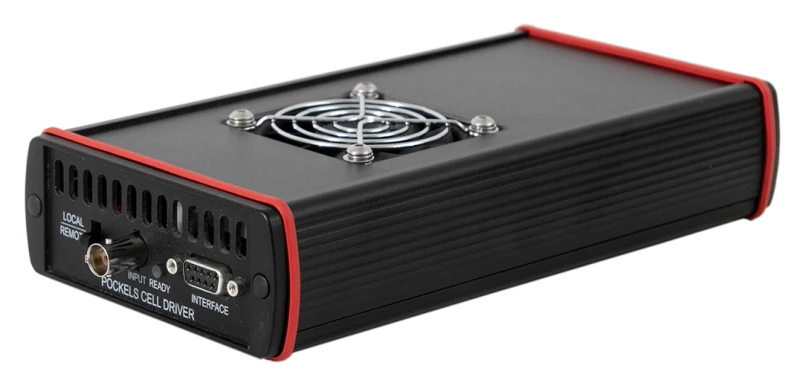

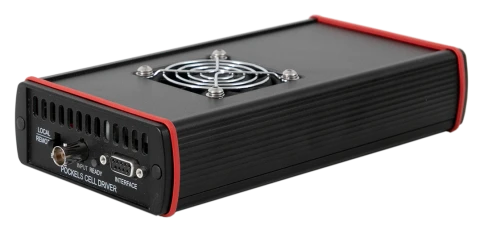

Designed with efficiency in mind, the QBX-08 incorporates forced air cooling, facilitated by an integrated fan. This feature not only enhances the durability of the device but also ensures optimal performance even under demanding conditions. The driver is available in both PCB and enclosed versions, providing flexibility for various installation requirements and preferences.
The QBX-08 Pockels cell driver is a robust and adaptable solution for professionals seeking a high-performance device with adjustable voltage capabilities. Its design and functionality make it an ideal choice for applications requiring precise voltage control, while the option for custom voltage configurations broadens its applicability across different fields and needs.
Voltage Amplifyer, QBX-08 Pockels Cell Driver with Ajustable Pulse Form, 800V Output
Specifications |
|
|---|---|
| Maximum Output Voltage: | 800V |
| Amplification Factor: | 100:1 |
| Input Power: | 24VDC, 1.5A typ. |
| Signal: | Analog signal 0-8V |
| Input Impedance: | 50Ohm |
| Output Polarity: | Positive |
| Amplitude: | 0-800V |
| Repetition Rate: | Up to 1MHz |
| Rise/fall Time (full Slope): | <1us |
| Delay Time: | <1us |
| Load Type: | Capacitive |
| Load Capacitance: | <60pF |
| Cooling: | Forced air cooling with integrated fan |
| Size (LxWxH): | 206x85x45 mm |
| Weight: | Approx. 0.6 kg |
Features
- Adjustable Voltage Output: The QBX-08 Pockels cell driver allows for continuous voltage adjustment, with a maximum output voltage of 800V. Custom voltage options up to 1600V are available upon request.

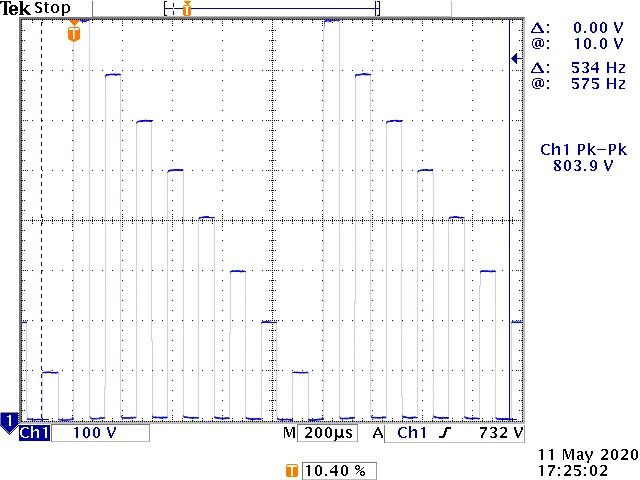

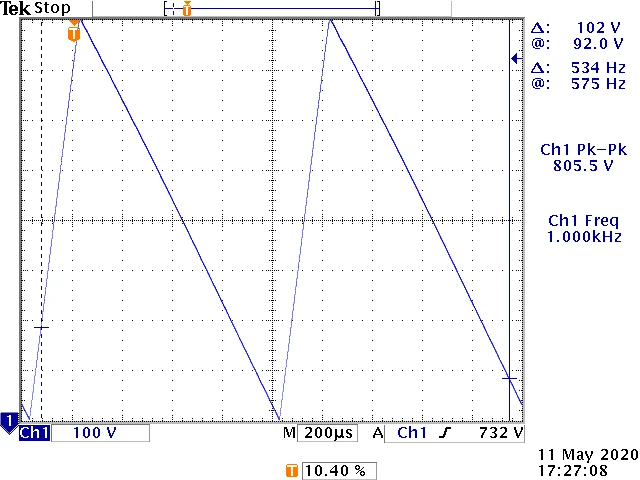

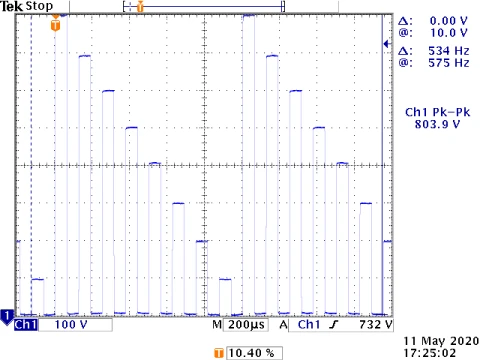

- Amplification Factor: A low-voltage input analog signal (0-8 V) with an arbitrary waveform is amplified with 100:1 factor and delivered to a Pockels cell.
- Capacitive Load Compatibility: Designed for capacitive loads, with a load capacitance of less than 60pF. Custom load types and capacitances are available upon request.
- Compact and Lightweight Design: With dimensions of 206x85x45 mm and a weight of approximately 0.6 kg, the driver is both portable and space-efficient.
Applications
- Electro-optics (light modulation, beam deflection, beam steering)
- Piezo actuators, MEMS actuators
- Ultrasonic devices
- As single channel signal amplifier
- For double-pulse LIBS with one resonator Nd:YAG laser
Frequently Asked Questions
The QBX-08 is a dedicated Pockels cell driver designed for applications where the voltage on the Pockels cell should be continuously adjustable. It uses a voltage amplifier schematic with a maximum output voltage of 800V, and an amplification factor of 100:1.
The QBX-08 requires a power input of 24VDC and 1.5A (typical). It accepts an analog signal input of 0-8V with an input impedance of 50 Ohm.
The maximum output voltage of the QBX-08 is 800V, but other voltages both smaller and higher up to 1600V are available on request.
The QBX-08 is cooled using forced air cooling with an integrated fan.
The QBX-08 can achieve a repetition rate of up to 1MHz at smaller loads and voltages. The repetition rate is also limited by the formula fMAX*C*U^2=2W, for example, ~50kHz at 800V and 60pF, or ~130kHz at 500V and 60pF.
The QBX-08 is designed for capacitive loads with a load capacitance of less than 60pF, although other load types and capacitances are available on request.
The QBX-08 operates within a temperature range of +10 to +40 degrees Celsius. Its dimensions are 206x85x45 mm and it weighs approximately 0.6 kg.
