QBU-BT-10kV Pockels Cell Driver, Adjustable Voltage and Pulse Width
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2020
Description

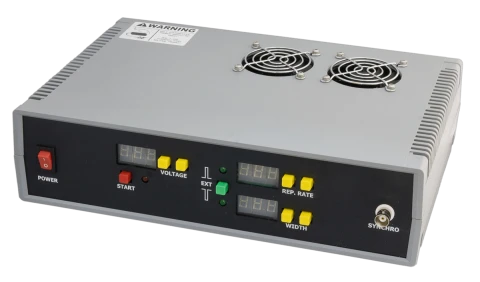

The **QBU-BT-10kV Pockels Cell Driver** series, which includes models **QBU-BT-9036**, **QBU-BT-8032**, and **QBU-BT-7028**, is designed to deliver high-voltage pulses with exceptional precision and flexibility.
These drivers are engineered to handle high repetition rates with fast rise and fall times, making them ideal for demanding applications in the laser industry. The adjustable voltage amplitude and pulse width provide users with the flexibility to tailor the output to their specific needs, ensuring optimal performance in various scenarios. With the capability to output voltages up to 10 kV, these drivers support Pockels cells under half-wave voltage schemes and can accommodate larger crystals. This high output voltage is crucial for applications requiring precise control and high power, enabling users to achieve superior results in their optical systems.
The user-friendly interface allows for easy adjustments of voltage levels, operating frequency, and pulse width either via RS-232 or directly from the front panel, providing seamless integration into existing setups.
The QBU-BT-10kV series offers versatile triggering options, either through an internal clock or an external device signal. This flexibility ensures that the drivers can be synchronized with a wide range of systems, enhancing their adaptability and usability in various industrial and research environments. Additionally, the bipolar output of the module, which forms a 4kV pulse by producing +2kV on one wire and -2kV on another, ensures that all high-voltage outputs are accurately described in terms of voltage differences, providing clarity and precision in operation.
The other Pockels cell driver models are:
QBU-BT-10kV Pockels Cell Driver, Adjustable Voltage and Pulse Width
Specifications |
|
|---|---|
| Input: | 100-240 VAC, 50/60 Hz; 1.0 A max |
| Output Voltage: | up to 10 kV |
| Pulse Width: | 200ns – DC in external synchronization mode; 1 us – 1/f in internal synchronization modes |
| Rise Time: | <20ns |
| Fall Time: | <25ns |
| Jitter: | ±1.5ns |
| Delay Time: | <150ns |
| Size: | Approx. 300x220x80mm |
| Weight: | <2.0kg |
Features
- High Voltage Output: Capable of producing up to 10 kV, ideal for operating Pockels cells under half-wave voltage schemes or with larger crystals.
- Adjustable Parameters: Users can select voltage level, operating frequency, and pulse width via RS-232 or from the front panel.
- Bipolar Output: Produces pulses by generating positive and negative voltages on separate wires, ensuring accurate voltage differences.
- Fast Rise and Fall Times: Rise time of less than 20ns and fall time of less than 25ns, ensuring rapid pulse transitions.
- Wide Pulse Width Range: From 200ns in external synchronization mode to 1us in internal synchronization modes.
- High Repetition Rate: Capable of reaching up to 100 kHz in burst mode at low operating voltage and load capacitance.
Applications
- The 10kV Pockels cell driver QBU-BT-10kV is an extension of QBU-BT-series operating voltage range up to 10 kV (bipolar). High output voltage allows to use Pockels cells under half-wave voltage schemes or deal with larger crystals.
- Advanced Q-switching
- Pulse picking, pulse slicing
Frequently Asked Questions
The QBU-BT-10kV Pockels cell driver is a device that produces high voltage pulses with high repetition rates, fast rise and fall times, and adjustable voltage amplitude and pulse width. It is used to operate Pockels cells under half-wave voltage schemes or with larger crystals.
The QBU-BT-10kV can operate in pulses up mode, pulses down mode, and external synchronization mode, where it can repeat an external signal.
The voltage level, operating frequency, and pulse width can be selected by the user within the working range via RS-232 or from the front panel.
The QBU-BT-10kV can produce output voltages up to 10 kV.
The QBU-BT-10kV operates best in temperatures ranging from +10 to +40 °C, and can be stored in temperatures from -20 to +60 °C. It can operate in humidity levels from 0 to 90%, non-condensing.
The rise time is less than 20 ns and the fall time is less than 25 ns.
The performance of the QBU-BT-10kV is optimized for load capacitances typical to Pockels cells used in the laser industry (5-7pF). Higher load capacitance decreases the performance.
