Description

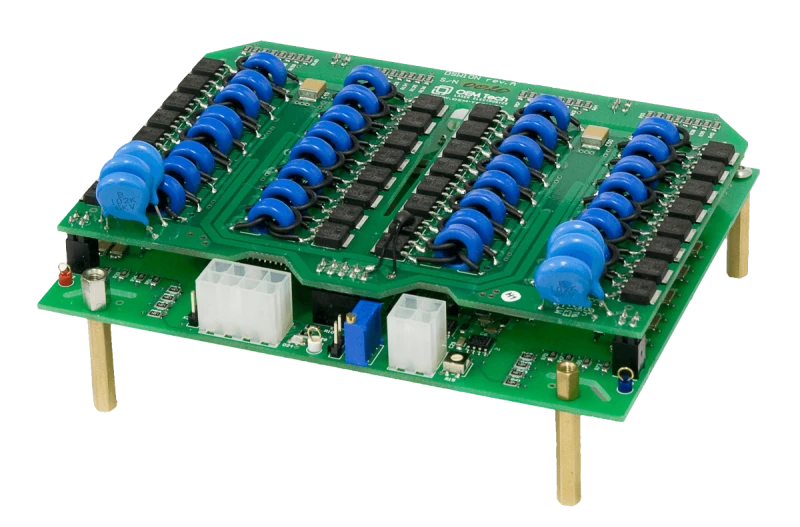

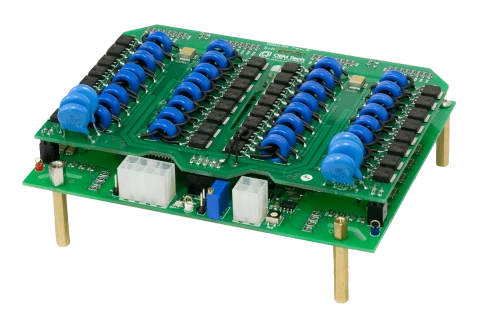

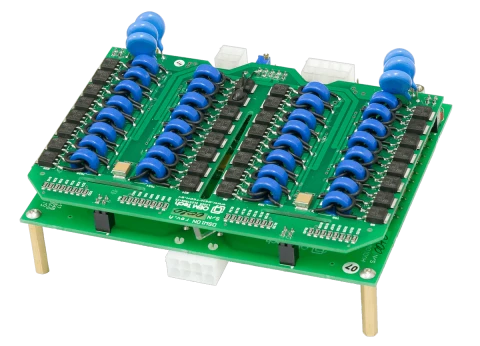

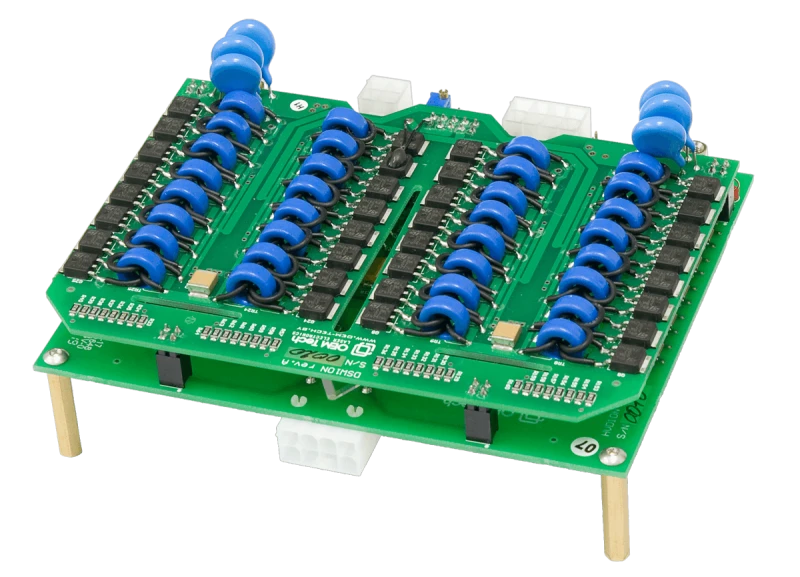

The QBU-10kV Pockels Cell Driver series, including models QBU-9036, QBU-8032, and QBU-7028, is engineered to deliver high-voltage pulses with exceptional repetition rates, fast rise and fall times, and customizable voltage amplitude and pulse width. These drivers are capable of generating output voltages up to 10 kV, making them suitable for applications that require half-wave voltage schemes or involve larger crystals.
Designed for efficiency and versatility, these modules operate with a +24 V DC power supply and require a pulse generator to define the operating frequency and pulse width. The QBU series offers flexibility with two control types: manual and automatic. Users can manually adjust the output voltage using an onboard configuration trimpot or opt for remote control by applying a DC voltage to the designated pin, allowing for seamless integration into various operational setups.
The QBU-10kV series stands out for its adaptability to different load capacitances, particularly those typical in the laser industry, such as 5-7pF. This adaptability ensures optimal performance, although it should be noted that higher load capacitance may reduce the maximum permissible repetition rate. The bipolar nature of the module's output is another noteworthy feature, as it generates pulses by producing equal but opposite voltages on two output wires. This design consideration is crucial for users to understand the voltage difference descriptions provided.
The output is triggered by an arbitrary external TTL signal, i.e. it is possible to set a pulse width for every pulse
The other Pockels cell driver models are:
- 6 kV QBU
- 6 kV encased QBU-BT
- 10 kV encased QBU-BT-10kV
10 kV QBU-10kV Pockels Cell Driver, Fast Rise, Fast Fall - 20 ns
Specifications |
|
|---|---|
| Input: | +24V DC; 1.5A max |
| Pulse Width: | 200ns – DC |
| Rise Time (Fall Time): | <20ns (<25ns) |
| Jitter: | ±1.5ns |
| Delay Time: | <150ns |
| Protections: | from overheating (approx. 72 °C) |
| Size (LxWxH): | 133x104x50mm |
| Weight: | <0.2kg |
| Max. Repetition Rate Depends On System: | Up to 75 kHz |
Features
- High Voltage Output: Capable of producing output voltages up to 10 kV, suitable for half-wave voltage schemes and larger crystals.
- Adjustable Parameters: Features adjustable voltage amplitude and pulse width for tailored performance to specific applications.
- Fast Switch Times: Offers fast rise and fall times, with rise time under 20 ns and fall time under 25 ns, ensuring quick operation.
- Dual Control Options: Includes both manual and automatic control modes, allowing voltage levels to be set manually via onboard trimpot or remotely through DC voltage.
- High Repetition Rate: Designed for high repetition rates, with performance optimized for load capacitance typical to Pockels cells (5-7 pF).
- Bipolar Output: Generates bipolar output, essential for applications requiring precise voltage differences.
- Protection Features: Integrated protection from overheating at approximately 72 °C to ensure safe operation.
- Compact and Lightweight Design: Measures 133x104x50 mm and weighs less than 0.2 kg, making it easy to integrate into various setups.
Applications
- Laser Industry: Ideal for driving Pockels cells with typical load capacitance of 5-7pF, commonly used in laser applications.
- High Voltage Applications: Suitable for applications requiring high voltage pulses up to 10kV.
- Advanced Q-switching
- Pulse picking, pulse slicing
Frequently Asked Questions
The QBU-10kV Pockels cell driver is a device that produces high voltage pulses with a high repetition rate, fast rise and fall times, adjustable voltage amplitude, and pulse width. It is used to operate Pockels cells, which are used in laser applications.
The QBU-10kV driver requires a +24 V DC power supply.
The output voltage of the QBU-10kV can be controlled either manually using an onboard configuration trimpot or automatically by applying a DC voltage to the respective pin.
The optimal performance of the QBU-10kV driver is achieved with a load capacitance typical to Pockels cells used in the laser industry, which is around 5-7pF.
The maximum output voltage of the QBU-10kV driver is 10 kV.
The dimensions of the QBU-10kV driver are 133x104x50mm, and it weighs less than 0.2 kg.
The operating temperature range for the QBU-10kV driver is +10 to +40 °C.
