QBD-BT Series Laboratory Pockels Cell Driver

Description

The QBD-BT series Q-switch Pockels Cell Driver is a laboratory encased solution for generating high voltage pulses with precision and reliability. Designed for both pull-down (QBD-BT-…-DN) and push-up (QBD-BT-…-UP) schemes, these Q-switch Pockels cell drivers are engineered to deliver fast risetimes and fall times (leading edge) of less than 20 nanoseconds. With adjustable voltage amplitudes, these drivers provide flexibility and control, ensuring optimal performance for various applications.

One of the standout features of the QBD-BT series Q-switch Pockels Cell Driver is its ability to operate at high repetition rates, ranging from single shots to over 100 kHz. This capability makes it suitable for demanding environments where rapid pulse generation is critical. The high voltage pulse amplitude is adjustable within a specified range, allowing users to tailor the output to their specific needs. Furthermore, the recovery time is efficiently managed between 5 to 10 microseconds, depending on the HV pulse amplitude and load capacitance.

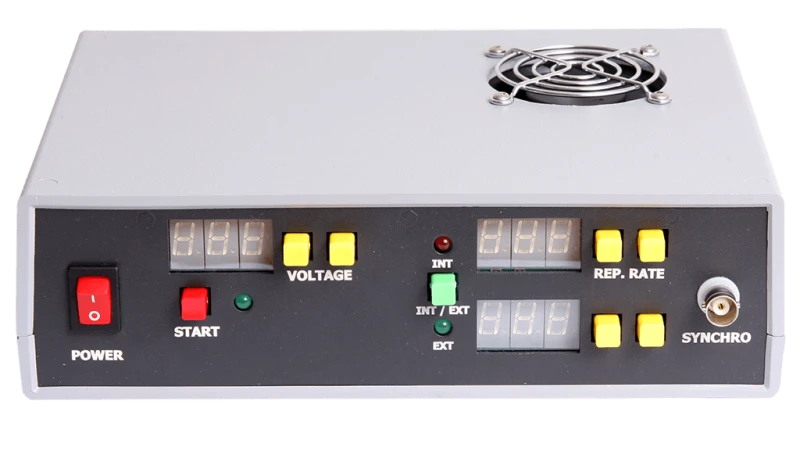

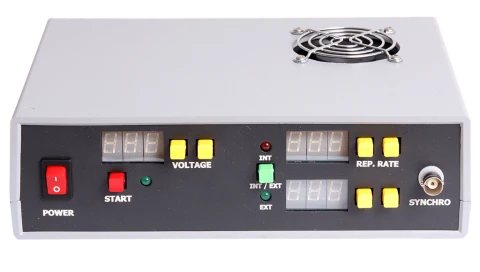

The front panel of the QBD-BT series Q-switch Pockels cell driver is designed for user-friendly operation, featuring a POWER switch, VOLTAGE and REP. RATE indicators, and buttons for adjusting these parameters. The module can operate in either internal or external synchronization modes, providing versatility in pulse initiation. Internal mode utilizes an internal clock, while external mode relies on TTL synchronization pulses. The back panel includes a MAINS connector for power, an HV OUTPUT connector for load connection, and an RS-232 connector for computer interfacing, ensuring comprehensive connectivity options.

Technical performance is highly dependent on load capacitance, with optimal results achieved at 23pF or lower. The module's output is bipolar, meaning a 4kV pulse is formed by applying +2kV to the positive output wire and -2kV to the negative. This bipolar configuration is crucial for understanding the voltage differences described in the module's specifications.

Specifications

Risetime Or Falltime (leading Edge):	<20 ns
Recovery Time:	5-10 us
Repetition Rates:	single shot to 100 kHz and higher
Mains Input Voltage:	100-240 VAC
Mains Frequency:	50/60 Hz
Load Capacitance For Full Performance:	23 pF
Output Voltage:	Bipolar 4kV (+2kV to -2kV)

Download Data Sheet

Features

High Voltage Pulse Generation: The QBD-BT series Pockels cell drivers produce high voltage pulses with adjustable amplitude, suitable for various applications.

Fast Risetimes/Falltimes: Achieve risetimes and falltimes of less than 20 ns, ensuring rapid pulse transitions.

Adjustable Pulse Amplitude: Customize the HV pulse amplitude within the HVmin to HVmax range to suit your specific requirements.

High Repetition Rates: Capable of operating from a single shot to over 100 kHz, providing flexibility for different operational needs (Depends on your system parameters).

Dual Operation Modes: Switch between internal synchronization mode and external synchronization mode with ease using the INT/EXT button.

User-Friendly Front Panel: Includes power switch, voltage and repetition rate indicators, and control buttons for easy operation.

Bipolar Output: The module's output is bipolar, generating a 4kV pulse by applying +2kV and -2kV to respective outputs.

Load Capacitance: Optimal performance is achieved with a load capacitance of 23pF or below, affecting the repetition rate.

Applications

Q-switch in laser systems

Add to Watchlist (My Watchlist)

Ships from:

Poland

Sold by:

OEM Tech

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the QBD-BT series Q-switch Pockels Cell Driver ?

The QBD-BT series Pockels cell driver is a device that produces high voltage pulses with high repetition rates, fast risetimes or falltimes, and adjustable voltage amplitude. It is available in two modifications: QBD-BT-…-DN for pull-down scheme and QBD-BT-…-UP for push-up scheme.

What are the typical risetime and falltime for the QBD-BT series Q-switch Pockels Cell Driver?

The typical risetime and falltime for the QBD-BT series are less than 20 nanoseconds, measured at the 10-90% level.

What is the recovery time for the QBD-BT series Pockels cell driver?

The recovery time for the QBD-BT series Pockels cell driver is between 5 to 10 microseconds, depending on the HV pulse amplitude and load capacitance.

How can the QBD-BT series Q-switch Pockels Cell Driver be synchronized?

The QBD-BT series driver can be synchronized in two modes: internal synchronization mode, where output pulses are initiated by an internal clock, and external synchronization mode, where output pulses are initiated by TTL synchronization pulses applied to the SYNCHRO connector.

What is the range of repetition rates for the QBD-BT series?

The repetition rates for the QBD-BT series range from single shot to 100 kHz and higher, depending on the HV pulse amplitude and load capacitance.

What power supply is required for the QBD-BT series driver?

The QBD-BT series driver requires a mains connection of 100-240 VAC, 50/60 Hz, and it includes a 5A fuse.

How does load capacitance affect the performance of the QBD-BT series Q-switch Pockels Cell Driver?

The performance of the QBD-BT series driver greatly depends on load capacitance. Full performance is achievable with a load capacitance of 23pF or below. Higher load capacitance decreases the maximal allowed repetition rate.
