The QBU-BT series Pockels cell driver is a state-of-the-art device designed to deliver high voltage pulses with exceptional precision and flexibility. This advanced driver is ideal for applications requiring high repetition rates, fast rise and fall times, as well as adjustable voltage amplitude and pulse width. Its user-friendly interface allows for easy selection of voltage levels, operating frequency, and pulse width, either through RS-232 or directly from the front panel, offering seamless integration into various setups.
One of the standout features of the QBU-BT series is its versatile triggering options. Users can choose between an internal clock or an external device signal, providing flexibility in synchronization with other equipment. The driver’s performance is optimized for load capacitances typical to Pockels cells used in the laser industry, ensuring reliable and consistent operation.
It is important to note the bipolar nature of the module’s output, which means that a 4kV pulse is produced by generating +2kV on one output wire and -2kV on the other. This design consideration is crucial for understanding voltage differences as described in the product documentation. Additionally, the QBU-BT series includes a refresh mechanism to maintain optimal performance, which may introduce a slight delay in output switching if a command is received during the refresh period.
For accurate output voltage measurement, a symmetrical (differential) high voltage probe is recommended to prevent potential failures due to inappropriate equipment. The inclusion of differential probes in the measurement setup is essential, as they contribute to the overall load capacitance, which can impact the driver's performance.

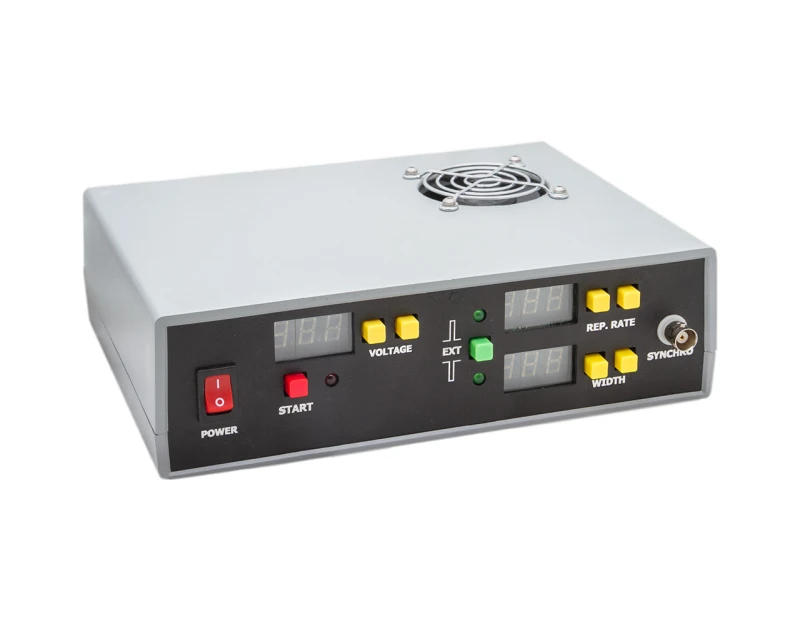

6kV Encased Pockels Cell Driver QBU-BT Series for Laboratory
Specifications |
|
|---|---|
| Input: | 100-240VAC, 50/60 Hz; 1.0A max |
| HV High Level (pulse Amplitude): | adjustable in HVmin – HVmax range |
| HV Low Level (pulse Basement): | fixed, 0V |
| Pulse Width: | 200ns – DC in external synchro mode; 1us – 1/f in internal synchro modes |
| Rise Time / Fall Time: | <15ns (10-90% level, guaranteed at load capacitance 11pF and below) |
| Jitter: | ±1ns |
| Delay Time: | <100ns |
| Protections: | from overheating (approx. 72 °C) |
| Humidity: | 0…90%, non-condensing |
| Size (LxWxH): | Approx. 225x180x70mm |
| Weight: | <1.5kg |
Features
- High Voltage Pulses: The QBU-BT series delivers high voltage pulses with fast rise and fall times, ensuring optimal performance for laser industry applications.
- Adjustable Parameters: Users can adjust voltage amplitude, pulse width, and operating frequency via RS-232 or the front panel, providing flexibility in various applications.
- Multiple Triggering Options: The device can be triggered by an internal clock or an external device, offering versatility in synchronization.
- Bipolar Output: The module produces a bipolar output, allowing for efficient high voltage pulse formation with a voltage difference description.
- Delay Management: The driver includes a refresh feature to manage output delays, ensuring consistent performance even with extended pulse widths or intervals.
- Symmetrical Measurement: Output voltage should be measured using a symmetrical high voltage probe to prevent equipment failure and ensure accuracy.
Applications
QBU-BT is a high-voltage regulated power supply, either pulsed or continuous, allowing to control a birefringence of an electro-optical crystal (KTP, KD*P, BBO, etc.) in order to drive the polarization direction of the light propagating through the crystal.
Bench-top Pockels cell drivers are suitable for laboratory modules. Input from mains, easy-to-control interface. Many adjustable parameters.
Frequently Asked Questions
The QBU-BT series Pockels cell driver is used to produce high voltage pulses with high repetition rates, fast rise and fall times, adjustable voltage amplitude, and pulse width, typically for applications involving Pockels cells in the laser industry.
The voltage level, operating frequency, and pulse width can be selected by the user within the working range via RS-232 or from the front panel.
The bipolar output means that a high voltage pulse, such as 4kV, is formed by producing +2kV on one output wire and -2kV on the other, with all HV output descriptions given in terms of voltage differences.
The output should be measured with a symmetrical (differential) high voltage probe only, as using inappropriate equipment can cause driver failure. The capacitance of differential probes should be considered part of the load capacitance.
The operating temperature range is +10 to +40ºC, and the storage temperature range is -20 to +60ºC.
The QBU-BT series has protections against overheating, activating at approximately 72 °C.
The QBU-BT series driver has approximate dimensions of 225x180x70mm and weighs less than 1.5kg.
