Description

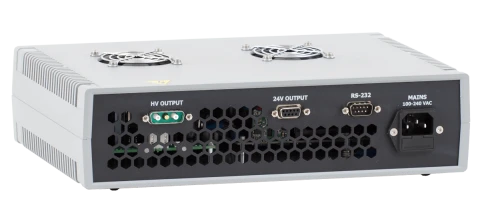

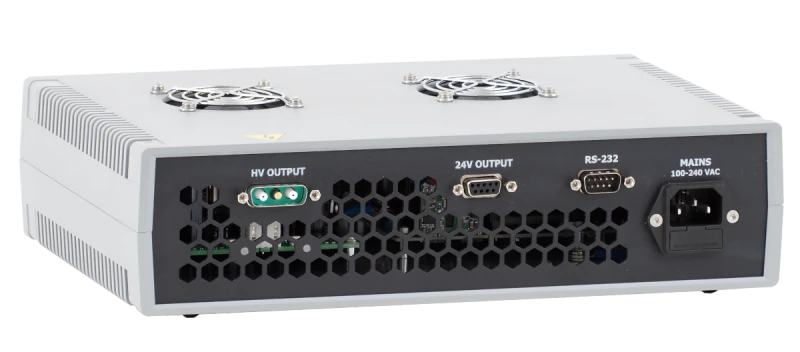

The HVPS-BT-300 is a cutting-edge high voltage power supply designed for precision and reliability, featuring a bipolar output. This advanced configuration ensures that the output connector is equipped with three pins: Ground, HV positive, and HV negative. The bipolar nature of the device guarantees that the HV positive and HV negative pins maintain an equal distance from the Ground potential, providing a balanced and stable output. For instance, a 2kV output voltage is achieved by generating +1kV at the HV positive pin and -1kV at the HV negative pin.
This power supply is specifically engineered to meet the demands of high voltage, high repetition rate Pockels cell drivers, which are frequently utilized in the laser industry. With an input range of 100-240VAC, the HVPS-BT-300 delivers a robust DC high voltage output, with modifications available up to 4kV. The maximum output power of the unit exceeds 300W, ensuring it can handle demanding applications with ease.
The HVPS-BT-300 is equipped with a built-in fan for forced air cooling, ensuring optimal performance and longevity. While the default configuration includes analogue interfaces, digital interfaces can be provided upon request, offering flexibility to suit various operational needs.

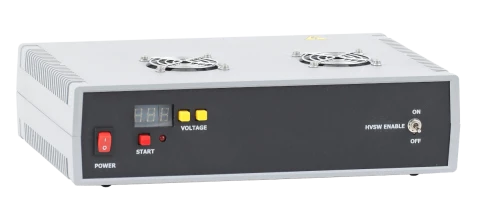

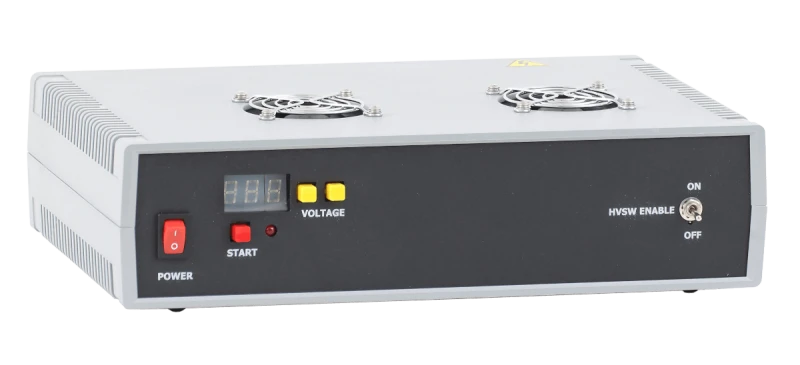

HVPS-BT-300 Bipolar High Voltage Power Supply, 300W, 100-240VAC Input
Specifications
| Input: | 100-240VAC, 1ph |
|---|---|
| HV Output: | Bipolar |
| Output Voltage: | up to 4kV |
| Output Power: | >300W |
| Voltage Accuracy: | <0.5% |
| Ripple: | <0.2% pk-pk |
| Efficiency: | >85% |
| Size (LxWxH): | 300x200x77mm |
| Weight: | <2.0kg |
Download Data Sheet
Features
- Bipolar Output Design: The HVPS-BT-300 features a unique bipolar output, with three pins: Ground, HV positive, and HV negative. This design ensures that the positive and negative high voltages are equidistant from the ground potential, making it ideal for applications like high repetition rate Pockels cell drivers in the laser industry.
- Versatile Voltage Range: Capable of modifications up to 4kV, the HVPS-BT-300 can be tailored to meet specific voltage requirements, ensuring flexibility for various applications.
- High Power Output: The power supply delivers more than 300W of output power, particularly effective in the 80-100% VMAX region, providing robust performance for demanding tasks.
- Advanced Cooling System: Equipped with a built-in fan, the HVPS-BT-300 is forced air cooled, ensuring reliable operation and extended lifespan even under high load conditions.
- Precision and Stability: With a voltage accuracy of less than 0.5% and ripple below 0.2% peak-to-peak, this power supply offers exceptional stability and precision in output, crucial for sensitive applications.
- High Efficiency: Operating at over 85% efficiency, the HVPS-BT-300 ensures energy is used effectively, reducing waste and operational costs.
- Comprehensive Protection: Designed with overheating protection, this power supply ensures safe operation under various environmental conditions.
- Compact and Lightweight: Measuring 300x200x77mm and weighing less than 2.0kg, the HVPS-BT-300 is compact and easy to integrate into existing systems.
- Wide Operating Range: Suitable for operation in temperatures ranging from +10 to +40 °C and storage from -20 to +60 °C, with a humidity tolerance of up to 90% non-condensing, this power supply is built for diverse environments.
- Customizable Interfaces: While analogue interfaces are standard, digital interfaces can be provided upon request, allowing for tailored integration into various control systems.
Applications
- High Voltage Power Supply for Pockels Cell Drivers: The HVPS-BT-300 is designed to feed high voltage high repetition rate Pockels cell drivers, commonly used in the laser industry.
- Bipolar Output: Features a bipolar output with three pins – Ground, HV positive, and HV negative. This ensures the potentials of HV positive and HV negative are always equidistant from the Ground potential.
Frequently Asked Questions
What is the HVPS-BT-300?
How does the bipolar output work?
What is the input power requirement for the HVPS-BT-300?
What is the maximum output power of the HVPS-BT-300?
What are the environmental operating conditions for the HVPS-BT-300?
What is the efficiency of the HVPS-BT-300?
Are digital interfaces available for the HVPS-BT-300?
