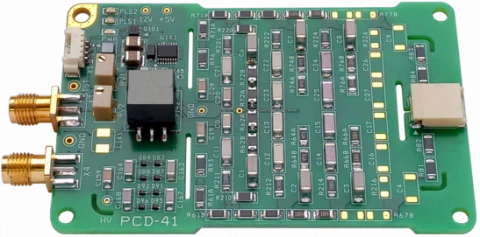

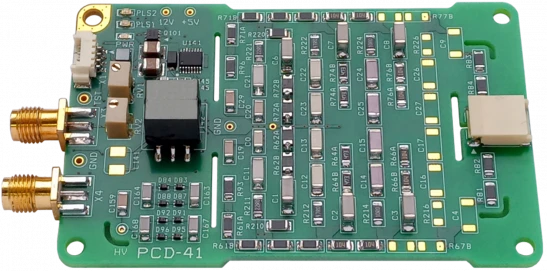

High-Voltage Pockels Cell Driver PCD-41
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
VIGITEK, INC. -
On FindLight:
since 2022
Description
The PCD‐041 Pockels Cell Driver is an advanced device designed to generate high-voltage quasi-rectangular pulses with exceptional precision. This driver is engineered to deliver nanosecond rising and falling edges, ensuring rapid response times essential for high-speed applications. The duration of the high-voltage output is directly influenced by the trigger pulse duration, providing users with precise control over the pulse characteristics. This makes the PCD‐041 an ideal choice for ultrafast optical beam modulation and deflection, as well as for controlling laser regenerative amplifiers and pulse pickers.
One of the standout features of the PCD‐041 is its ability to produce quasi-rectangular high-voltage pulses, which are crucial for maintaining signal integrity in demanding applications. The device is equipped with a built-in pulsed high-voltage source, allowing for seamless integration into various systems. Additionally, the pulse amplitude can be adjusted using a trimmer or an external analog signal, offering flexibility in operation. The low voltage power supply requirement of 12V and a trigger pulse of 5V with an impedance of 50Ω make it compatible with a wide range of setups.
The PCD‐041 series offers different models, each tailored to specific voltage amplitude requirements, ranging from 1300V to 5800V. This versatility ensures that users can select the model that best fits their application needs. The device also boasts a pulse jitter of less than 200 picoseconds, ensuring consistent performance. With a pulse repetition rate of up to 2000 Hz, the PCD‐041 is well-suited for high-frequency operations. Its robust design and precise control capabilities make it an indispensable tool for professionals seeking reliable and efficient high-voltage pulse generation.
High-Voltage Pockels Cell Driver PCD-41
Specifications |
|
|---|---|
| Low Voltage Power Supply: | 12 V |
| Trigger Pulse: | 5 V |
| Trigger Pulse Impedance: | 50 Ω |
| Pulse Repetition Rate: | up to 2000 Hz |
| Output High Voltage Amplitude (PCD-041-5800): | 4400 ÷ 5800 V |
| Output High Voltage Amplitude (PCD-041-4800): | 3600 ÷ 4800 V |
| Output High Voltage Amplitude (PCD-041-3800): | 2600 ÷ 3800 V |
| Output High Voltage Amplitude (PCD-041-2800): | 1800 ÷ 2800 V |
| Output High Voltage Amplitude (PCD-041-2000): | 1300 ÷ 2000 V |
| Unevenness Of The Amplitude On The Plateau: | < 5 % |
| Output Voltage Pulse-to-pulse Instability: | < 1 % |
| Max Pulsed Current: | 20 A |
| Optimal Load Capacitance: | 4 ÷ 10 pF |
| HV Pulse Rise Time: | 1 ÷ 3 nsec |
| HV Pulse Fall Time: | 1 ÷ 3 nsec |
| HV Pulse Duration: | 2 ÷ 600 nsec |
Features
- Quasi-Rectangular High Voltage Pulse: Ideal for applications requiring precise pulse shapes.
- Nanosecond Rise and Fall Times: Ensures rapid response for ultrafast optical applications.
- Controlled Pulse Duration: Adjustable via trigger pulse duration or internal trimmer.
- Low Pulse Jitter: Less than 200 picoseconds, providing high precision.
- Built-in Pulsed High Voltage Source: Simplifies setup and integration.
- Adjustable Pulse Amplitude: Modify using a trimmer or external analog signal.
- Additional Output Signal: For high voltage pulse amplitude measurement.
- Low Voltage Power Supply: Operates on a 12V power supply for convenience.
- Trigger Pulse: 5V with 50Ω impedance for reliable triggering.
- High Pulse Repetition Rate: Up to 2000 Hz, suitable for high-speed applications.
Applications
- Ultrafast Optical Beam Modulation: Precise control of beam timing and shape.
- Laser Regenerative Amplifiers: Accurate pulse picking and synchronization.
- Pulse Pickers: Controlled HV pulse durations for high-speed optical systems.
- Laser Deflection Systems: Enables fast and reliable optical steering.
Frequently Asked Questions
The PCD-041 Pockels Cell Driver is used for generating high-voltage quasi-rectangular pulses with nanosecond rising and falling edges. It is suitable for ultrafast optical beam modulation and deflection, control of laser regenerative amplifiers, and pulse pickers.
In the PCD-041 model, the HV pulse duration is determined by the duration of the trigger pulse at connector X3. In the PCD-041T model, it is determined by the delay between the rises of trigger pulses at X3 and X4. In the PCD-041P model, the duration is controlled by an internal trimmer RV2.
The distinctive features include quasi-rectangular high voltage pulses, nanosecond rise and fall times, controlled pulse duration, pulse jitter less than 200 psec, a built-in pulsed high voltage source, pulse amplitude adjustment by trimmer or external analog signal, an additional output signal for HV pulse amplitude measurement, and a low voltage power supply of 12V.
The pulse repetition rate of the PCD-041 can go up to 2000 Hz.
The output high voltage amplitude ranges are as follows: PCD-041-5800: 4400 ÷ 5800 V, PCD-041-4800: 3600 ÷ 4800 V, PCD-041-3800: 2600 ÷ 3800 V, PCD-041-2800: 1800 ÷ 2800 V, PCD-041-2000: 1300 ÷ 2000 V.
The maximum pulsed current for the PCD-041 is 20 A.
The high-voltage pulse rise and fall times for the PCD-041 are between 1 and 3 nanoseconds.
