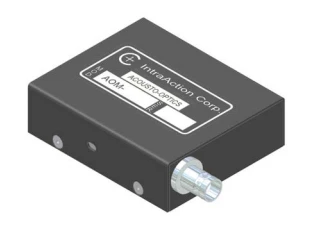

AOM-802AF1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER

Description

MODEL AOM-AF1 SERIES ACOUSTO-OPTIC MODULATOR / FREQUENCY SHIFTER.

Specifications

Center Wavelength:	570 nm
Operational Wavelength Range:	440 – 700 nm
Acoustic Mode:	Transverse, Longitudinal
Operating Frequency:	80 MHz
Light Polarization:	Random, Linear, Circular, Elliptical
Optical Power Density:	50 KW/cm2
Deflection Angle:	12.8 mrad

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

HIGH OPTICAL POWER CAPABILITY
INTENSITY MODULATION
OPTICAL FREQUENCY SHIFTING
LASER BEAM DEFLECTION
HIGH RELIABILITY
EXCELLENT TEMPERATURE STABILITY

Request Quote

To: IntraAction Corp
Re: AOM-802AF1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: IntraAction Corp
On FindLight:: since 2019

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the AOM-802AF1 Acousto-Optic Modulator/Frequency Shifter?

The AOM-802AF1 is a high-power capability acousto-optic modulator/frequency shifter that can be used for intensity modulation, optical frequency shifting, and laser beam deflection.

What is the drive power of the AOM-802AF1?

The drive power of the AOM-802AF1 is 2 Watts (633 nm).

What is the modulation bandwidth of the AOM-802AF1?

The modulation bandwidth of the AOM-802AF1 is 2.7 MHz for a 1.0 mm beam diameter and 1.8 MHz for a 1.5 mm beam diameter.

What is the optical wavelength range of the AOM-802AF1?

The optical wavelength range of the AOM-802AF1 is 440 to 700 nm.

What is the size of the AOM-802AF1?

The size of the AOM-802AF1 (less connector) is 0.88 H x 2.94 D x 2.46 W inches or 22.4 H x 74.7 D x 62.5 W mm.
