Description
MODEL AOM-40AF SERIES ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER.

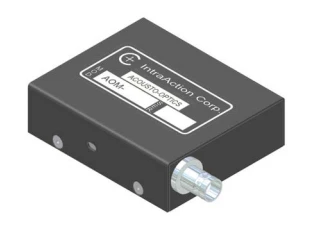

AOM-402AF4 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER
Specifications
| Center Wavelength: | 1064 nm |
|---|---|
| Operational Wavelength Range: | 1064 – 1064 nm |
| Acoustic Mode: | Transverse, Longitudinal |
| Operating Frequency: | 40 MHz |
| Light Polarization: | Random, Linear, Circular, Elliptical |
| Optical Power Density: | 50 KW/cm2 |
| Deflection Angle: | 11.7 mrad |
Download Data Sheet
Features
INTENSITY MODULATION
OPTICAL FREQUENCY SHIFTING
LASER BEAM DEFLECTION
HIGH OPTICAL POWER CAPABILITY
HIGH RELIABILITY
EXCELLENT TEMPERATURE STABILITY
Frequently Asked Questions
What is the AOM-402AF4 Acousto-Optic Modulator/Frequency Shifter used for?
The AOM-402AF4 is used for intensity modulation, optical frequency shifting, and laser beam deflection.
What is the drive power of the AOM-402AF4?
The drive power of the AOM-402AF4 is 5 watts.
What is the optical frequency shift range of the AOM-402AF4?
The optical frequency shift range of the AOM-402AF4 is ±(30 to 50) MHz.
What is the size of the AOM-402AF4?
The size of the AOM-402AF4 (less connector) is 0.88 H x 2.94 D x 2.46 W inches or 22.4 H x 74.7 D x 62.5 W mm.
What is the static optical insertion loss of the AOM-402AF4?
The static optical insertion loss of the AOM-402AF4 is 2 percent (633nm).
