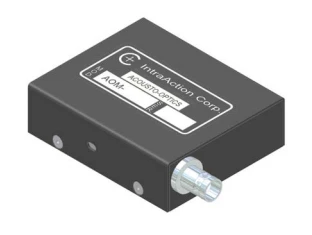

AOM-402AF1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER

Description

MODEL AOM-40AF SERIES ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER.

Specifications

Center Wavelength:	570 nm
Operational Wavelength Range:	440 – 700 nm
Acoustic Mode:	Transverse, Longitudinal
Operating Frequency:	40 MHz
Light Polarization:	Random, Linear, Circular, Elliptical
Optical Power Density:	50 KW/cm2
Deflection Angle:	6.9 mrad

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

INTENSITY MODULATION
OPTICAL FREQUENCY SHIFTING
LASER BEAM DEFLECTION
HIGH OPTICAL POWER CAPABILITY
HIGH RELIABILITY
EXCELLENT TEMPERATURE STABILITY

Request Quote

To: IntraAction Corp
Re: AOM-402AF1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: IntraAction Corp
On FindLight:: since 2019

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the features of the AOM-402AF1?

The AOM-402AF1 has several features, including high optical power capability, high reliability, excellent temperature stability, and the ability to perform intensity modulation, optical frequency shifting, and laser beam deflection.

What is the AOM-402AF1 Acousto-Optic Modulator/Frequency Shifter?

The AOM-402AF1 is a model in the AOM-40AF series of Acousto-Optic Modulators/Frequency Shifters. It is an instrument used for intensity modulation, optical frequency shifting, and laser beam deflection.

What is the drive power of the AOM-402AF1?

The drive power of the AOM-402AF1 is 1.8 watts (633 nm).

What is the optical frequency shift range of the AOM-402AF1?

The optical frequency shift range of the AOM-402AF1 is ±(30 to 50) MHz.

What is the static optical insertion loss of the AOM-402AF1?

The static optical insertion loss of the AOM-402AF1 is 2 percent (633nm).
