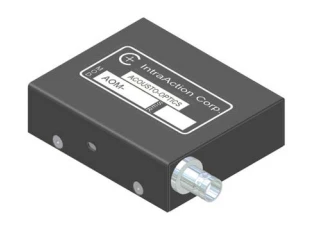

Thumbnail of AOM-1002AF1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER photo 1

Description

MODEL AOM-AF1 SERIES ACOUSTO-OPTIC MODULATOR / FREQUENCY SHIFTER.

AOM-1002AF1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER

Visit the IntraAction Corp Store

Specifications

Center Wavelength: 570 nm
Operational Wavelength Range: 440 – 700 nm
Acoustic Mode: Transverse, Longitudinal
Operating Frequency: 100 MHz
Light Polarization: Random, Linear, Circular, Elliptical
Optical Power Density: 50 KW/cm2
Deflection Angle: 17.3 mrad

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

HIGH OPTICAL POWER CAPABILITY
INTENSITY MODULATION
OPTICAL FREQUENCY SHIFTING
LASER BEAM DEFLECTION
HIGH RELIABILITY
EXCELLENT TEMPERATURE STABILITY

Frequently Asked Questions

What is the AOM-1002AF1 Acousto-Optic Modulator/Frequency Shifter used for?
The AOM-1002AF1 is a device used for high optical power capability, intensity modulation, optical frequency shifting, laser beam deflection, high reliability, and excellent temperature stability.
What is the modulation bandwidth of the AOM-1002AF1?
The modulation bandwidth of the AOM-1002AF1 is 2.7 MHz (1.0 mm beam diameter) and 1.8 MHz (1.5 mm beam diameter) at -3db.
What is the optical wavelength range of the AOM-1002AF1?
The optical wavelength range of the AOM-1002AF1 is 440 to 700 nm.
What is the size of the AOM-1002AF1?
The size of the AOM-1002AF1 (less connector) is 0.88 H x 2.94 D x 2.46 W inches or 22.4 H x 74.7 D x 62.5 W mm.
What is the static optical insertion loss of the AOM-1002AF1?
The static optical insertion loss of the AOM-1002AF1 is 2 percent (633nm).
