ACM-402AA1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER
Description
MODEL ACM SERIES ACOUSTO-OPTIC MODULATOR / FREQUENCY SHIFTER.
ACM-402AA1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER
Specifications |
|
|---|---|
| Center Wavelength: | 1400 nm |
| Operational Wavelength Range: | 1200-1600nm |
| Acoustic Mode: | Transverse, Longitudinal |
| Operating Frequency: | 40 MHz |
| Light Polarization: | Random, Linear, Circular, Elliptical |
| Optical Power Density: | 50 KW/cm2 |
| Deflection Angle: | 24.6 mrad |
Features
NEAR IR WAVELENGTH RANGE
INTENSITY MODULATION
OPTICAL FREQUENCY SHIFTING
OPTICAL ISOLATION
LOW RF DRIVE POWER
HIGH RELIABILITY
HIGH OPTICAL POWER CAPABILITY
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
External Vendor
Claim IntraAction Corp Page to edit and add data
Frequently Asked Questions
The different models available in the ACM series are ACM-402AA1, ACM-502AA1, ACM-802AA1, and ACM-1002AA1.
The ACM-402AA1 features near IR wavelength range, intensity modulation, optical frequency shifting, optical isolation, low RF drive power, high reliability, and high optical power capability.
The specifications of the ACM-402AA1 include acousto-optic material AMTIR-1, chalcogenide glass optical wavelength range of 11.2 to 1.6 µm, optical power capability of 50 kWatts/cm2, and RF drive power of 3600 milliwatts (1.55 µm).
The ACM-402AA1 is a model of the ACM series Acousto-Optic Modulator/Frequency Shifter.

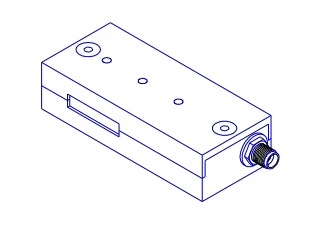

The size of the ACM-402AA1 is 2.80 L x 1.25 W x 0.70 H inches or 71.2 L x 31.8 W x 17.8 H mm (less connector).
