Description
Gentec-EO's Calorimeters are the pinnacle of reliability for measuring laser beams, particularly for the most substantial and highest energy laser beams. These calorimeters, crafted with precision and expertise, offer unrivaled performance for high-energy inertial confinement fusion calorimetric measurements.
With over 40 years of experience, Gentec-EO has become the foremost authority in manufacturing, calibrating, and servicing calorimeters, ensuring the highest level of accuracy and repeatability in energy measurement.
Custom Calorimeter 351nm 400mm Rectangular Aperture
Specifications
Aperture Shape: | Rectangular |
---|---|
Aperture Size (larger Dimension): | 400 mm |
Spectral Range: | 1053 nm, 532 nm, 351 nm |
Maximum Energy: | 5000 J |
Features
- Customized Solutions: Designed for a wide range of applications, from 16 kJ beams to delicate 50 mJ applications
- Wide Spectral Range: Covers wavelengths from 190 nm to 25 microns, with the ability to push these limits even further
- Accuracy: NIST traceable sources and calibration techniques ensure calibration uncertainties of ±3%
- High Sensitivity: Offers outstanding signal-to-noise ratios for precise measurements.
- Vacuum Compatibility: Suitable for use in vacuum environments
- Attention to Detail: Craftsmanship honed over four decades of experience in thermal-based energy measurement
Applications

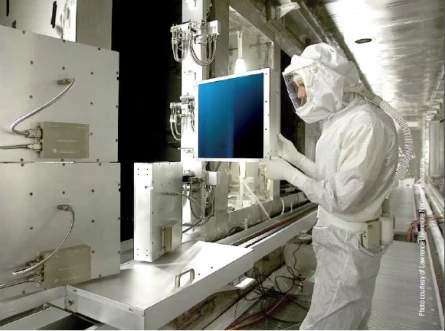

- Laser Fusion Experiments: Used to measure the energy generated in inertial confinement fusion experiments where laser beams rapidly heat the fusion target, replicating energy processes in the sun's core
- Femtosecond Lasers: Essential for high-power femtosecond lasers with peak powers in the Petawatts range and beam sizes too small for standard detectors
- Power Measurement: Ideal for high-energy laser pulses and power measurement applications
Frequently Asked Questions
What is a Gentec-EO calorimeter?
A Gentec-EO calorimeter is a reliable solution for measuring the largest and highest energy laser beams. It is manufactured, calibrated, and serviced by Gentec-EO, which has become an expert in this field through cooperation with leading research facilities around the world.
What are the features of the Custom Calorimeter 351nm 400mm Rectangular Aperture?
The Custom Calorimeter 351nm 400mm Rectangular Aperture has outstanding signal to noise ratios, high sensitivity, vacuum compatibility, and attention to detail and workmanship. It also uses NIST traceable sources and proven calibration techniques to ensure accuracy.
What is the aperture size of the largest beam that the calorimeter can measure?
The calorimeter can measure beams as large as 420 x 427 mm in aperture size, and can withstand pulse energy densities of more than 15 J/cm2.
What is the wavelength range of the calorimeter?
The calorimeter can measure energy in the range from 190 nm to 25 microns.
What is the calibration uncertainty of the calorimeter?
The calibration uncertainty of the calorimeter is ±3%, and repeatabilities are better than ±2% for very large beams.
