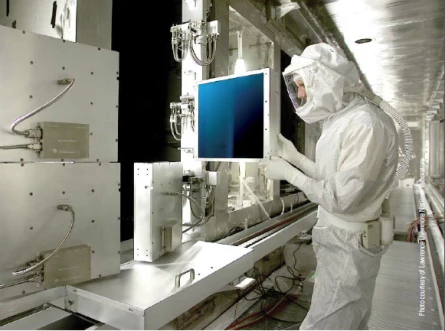

Thumbnail of Custom Calorimeter 351nm 110mm Rectangular Aperture photo 1

Description

Gentec-EO's Calorimeters are the pinnacle of reliability for measuring laser beams, particularly for the most substantial and highest energy laser beams. These calorimeters, crafted with precision and expertise, offer unrivaled performance for high-energy inertial confinement fusion calorimetric measurements.

With over 40 years of experience, Gentec-EO has become the foremost authority in manufacturing, calibrating, and servicing calorimeters, ensuring the highest level of accuracy and repeatability in energy measurement.

Custom Calorimeter 351nm 110mm Rectangular Aperture

Visit the Gentec-EO Store

Specifications

Aperture Shape: Rectangular
Aperture Size (larger Dimension): 110 mm
Spectral Range: 1053 nm, 532 nm, 351 nm
Calibration Uncertainty: ±3%
Repeatability: better than ±2%
Beam Energy: 16 kJ
Aperture Size: 420 x 427 mm
Pulse Energy Density: more than 15 J/cm²
Minimum Beam Energy: 50 mJ
Wavelength Range: 190 nm to 25 microns

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Customized Solutions: Designed for a wide range of applications, from 16 kJ beams to delicate 50 mJ applications
  • Wide Spectral Range: Covers wavelengths from 190 nm to 25 microns, with the ability to push these limits even further
  • Accuracy: NIST traceable sources and calibration techniques ensure calibration uncertainties of ±3%
  • High Sensitivity: Offers outstanding signal-to-noise ratios for precise measurements.
  • Vacuum Compatibility: Suitable for use in vacuum environments
  • Attention to Detail: Craftsmanship honed over four decades of experience in thermal-based energy measurement

Applications

  • Laser Fusion Experiments: Used to measure the energy generated in inertial confinement fusion experiments where laser beams rapidly heat the fusion target, replicating energy processes in the sun's core
  • Femtosecond Lasers: Essential for high-power femtosecond lasers with peak powers in the Petawatts range and beam sizes too small for standard detectors
  • Power Measurement: Ideal for high-energy laser pulses and power measurement applications

Frequently Asked Questions

What is a Gentec-EO calorimeter?
A Gentec-EO calorimeter is a reliable solution for measuring the largest and highest energy laser beams. It is manufactured, calibrated, and serviced by Gentec-EO, which has become an expert in the field.
What are the features of the Custom Calorimeter 351nm 110mm Rectangular Aperture?
The Custom Calorimeter 351nm 110mm Rectangular Aperture has outstanding signal to noise ratios, high sensitivity, vacuum compatibility, and attention to detail and workmanship. It is designed to provide the best solution for extreme energy measurement and for balancing in multi laser systems.
What is the accuracy of the Gentec-EO calorimeter?
Using NIST traceable sources and proven calibration techniques, the Gentec-EO calorimeter is always the most accurate large aperture measurement device on the market. With calibration uncertainties of ±3%, and repeatabilities better than ±2% for very large beams, it offers the very best solution for extreme energy measurement.
What is the range of the Gentec-EO calorimeter?
The Gentec-EO calorimeters span the band from 190 nm to 25 microns, and can be designed for beams as large as 420 x 427 mm in aperture size, to withstand pulse energy densities of more than 15 J/cm 2. They can also be provided for beam energies as low as 50 mJ for the most delicate applications.
What applications is the Custom Calorimeter 351nm 110mm Rectangular Aperture suitable for?
The Custom Calorimeter 351nm 110mm Rectangular Aperture is suitable for use in high energy inertial confinement fusion calorimetric measurement, particularly in laser fusion experiments. It is designed to measure the energy of high-energy laser beams accurately and reliably.

Got more questions? Use the inquiry form to ask the supplier directly.
