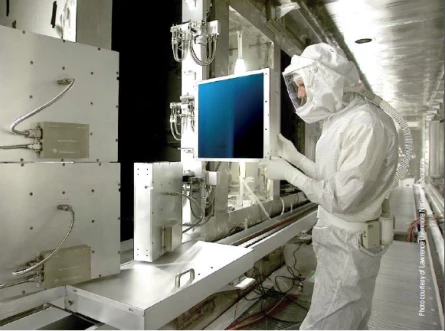

Thumbnail of Custom Calorimeter 1053nm Rectangular Aperture photo 1

Description

A Gentec-EO calorimeter is the only reliable solution available for the largest and highest energy laser beams. Through cooperation with several leading research facilities around the world, Gentec-EO has become the expert in manufacturing, calibrating and servicing calorimeters for use in high energy inertial confinement fusion calorimetric measurement.

Custom Calorimeter 1053nm Rectangular Aperture

Visit the Gentec-EO Store

Specifications

Aperture Shape: Rectangular
Aperture Size (larger Dimension): 427 mm
Spectral Range: 1053 nm
Calibration Uncertainty: ±3%
Repeatability: better than ±2%
Beam Energy: 16 kJ
Aperture Size: 420 x 427 mm
Pulse Energy Density: more than 15 J/cm²
Minimum Beam Energy: 50 mJ
Wavelength Range: 190 nm to 25 microns

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • OUTSTANDING SIGNAL TO NOISE RATIOS
  • HIGH SENSITIVITY
  • VACUUM COMPATIBILITY
  • ATTENTION TO DETAIL AND WORKMANSHIP

Applications

  • Laser Fusion Experiments
    • Inertial confinement fusion (ICF) involves initiating nuclear fusion reactions by heating and compressing a fuel target, usually a pellet containing deuterium and tritium.
    • High-energy laser beams deliver energy to the target's outer layer to compress and heat the fuel.
    • ICF aims to replicate the energy generation process occurring in the sun's core.
  • High Energy Measurement
    • Gentec-EO calorimeters are designed for measuring high energy laser beams.
    • They provide outstanding signal-to-noise ratios and high sensitivity.
    • Calorimeters are vacuum compatible and feature attention to detail and workmanship.
  • Large Aperture Measurement
    • Calorimeters are available for beams as large as 420 x 427 mm.
    • They can withstand pulse energy densities of more than 15 J/cm².
    • Suitable for beam energies as low as 50 mJ for delicate applications.
  • Custom Solutions
    • Gentec-EO offers state-of-the-art, accurate, and customized solutions.
    • They work with a wide range of materials, from surface coatings to robust volume absorbers.
    • Calorimeters span the band from 190 nm to 25 microns, with the ability to push these limits further.

Frequently Asked Questions

What is a Gentec-EO calorimeter?
A Gentec-EO calorimeter is a reliable solution for measuring high energy laser beams. It is manufactured, calibrated, and serviced by Gentec-EO, which is an expert in this field.
What are the features of the Custom Calorimeter 1053nm Rectangular Aperture?
The Custom Calorimeter 1053nm Rectangular Aperture has outstanding signal-to-noise ratios, high sensitivity, vacuum compatibility, and attention to detail and workmanship.
What is the accuracy of the Gentec-EO calorimeter?
The Gentec-EO calorimeter is the most accurate large aperture measurement device on the market, with calibration uncertainties of ±3% and repeatabilities better than ±2% for very large beams.
What is the range of beam energies that the Gentec-EO calorimeter can measure?
The Gentec-EO calorimeter can measure beam energies ranging from 50 mJ to 16 kJ, and it spans the band from 190 nm to 25 microns.
What applications is the Custom Calorimeter 1053nm Rectangular Aperture suitable for?
The Custom Calorimeter 1053nm Rectangular Aperture is suitable for laser fusion experiments, which involve compressing and heating a fuel target using high-energy beams of laser light.

Got more questions? Use the inquiry form to ask the supplier directly.
