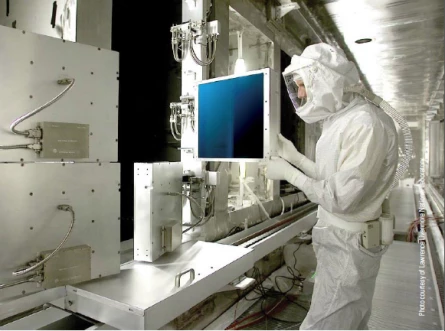

Thumbnail of Custom Calorimeter 190-1000nm Round Aperture photo 1

Description

A Gentec-EO calorimeter is the only reliable solution available for the largest and highest energy laser beams. Through cooperation with several leading research facilities around the world, Gentec-EO has become the expert in manufacturing, calibrating and servicing calorimeters for use in high energy inertial confinement fusion calorimetric measurement.

Custom Calorimeter 190-1000nm Round Aperture

Visit the Gentec-EO Store

Specifications

Aperture Shape: Round
Aperture Size (larger Dimension): 50 mm
Spectral Range: 190 - 10000 nm
Calibration Uncertainty: ±3%
Repeatability: better than ±2%
Beam Energy: 16 kJ
Aperture Size: 420 x 427 mm
Pulse Energy Density: more than 15 J/cm²
Minimum Beam Energy: 50 mJ
Wavelength Range: 190 nm to 25 microns

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • OUTSTANDING SIGNAL TO NOISE RATIOS
  • HIGH SENSITIVITY
  • VACUUM COMPATIBILITY
  • ATTENTION TO DETAIL AND WORKMANSHIP

Applications

  • Laser Fusion Experiments: Inertial confinement fusion (ICF) involves initiating nuclear fusion reactions by heating and compressing a fuel target, typically a pellet containing a mixture of deuterium and tritium. High-energy laser beams deliver energy to the outer layer of the target to compress and heat the fuel, replicating the energy generation process of the sun's core.
  • High Energy Inertial Confinement Fusion Calorimetric Measurement: Gentec-EO calorimeters are designed for the largest and highest energy laser beams, making them ideal for high energy inertial confinement fusion experiments.
  • Extreme Energy Measurement: With calibration uncertainties of ±3% and repeatabilities better than ±2%, Gentec-EO calorimeters provide the best solution for extreme energy measurement and balancing in multi-laser systems.
  • Large Aperture Measurement: Designed for beams as large as 420 x 427 mm in aperture size, these calorimeters can withstand pulse energy densities of more than 15 J/cm².
  • Delicate Applications: Highly sensitive calorimeters are available for beam energies as low as 50 mJ, suitable for the most delicate applications.
  • Broad Spectral Range: Calorimeters span from 190 nm to 25 microns, with the capability to extend these limits further.

Frequently Asked Questions

What is a Gentec-EO calorimeter?
A Gentec-EO calorimeter is a device used for high energy inertial confinement fusion calorimetric measurement.
What is the aperture size of the largest beam that the calorimeter can measure?
The calorimeter can measure beams as large as 420 x 427 mm in aperture size.
What is the wavelength range that the calorimeter can measure?
The calorimeter can measure beams in the range from 190 nm to 25 microns.
What is the calibration uncertainty of the Gentec-EO calorimeter?
The calibration uncertainties of the Gentec-EO calorimeter is ±3%.
What is the repeatability of the Gentec-EO calorimeter for very large beams?
The repeatability of the Gentec-EO calorimeter for very large beams is better than ±2%.

Got more questions? Use the inquiry form to ask the supplier directly.
