Custom Calorimeter 350-1100nm Round Aperture
Description
The Gentec-EO High Energy Calorimeters are the most reliable solution for measuring the largest and highest energy laser beams. Designed for extreme power applications, these calorimeters can handle beam energy levels up to 16 kJ and pulse energy densities exceeding 15 J/cm².

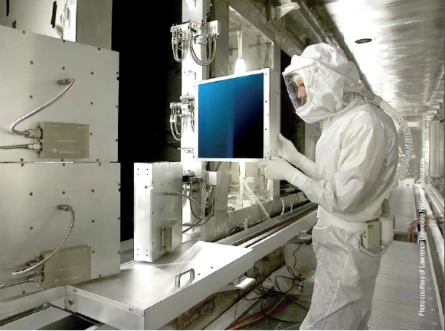

These devices are used extensively in inertial confinement fusion experiments, where high-energy laser beams are utilized to heat and compress fuel targets for nuclear fusion reactions. Gentec-EO calorimeters are trusted by leading research facilities worldwide due to their accuracy, robustness, and precision in energy measurement.
These calorimeters cover a spectral range from 190 nm to 25 µm, ensuring versatility across various laser types, including femtosecond lasers, which can feature peak powers in the petawatt range.
With a calibration uncertainty of ±3% and repeatability better than ±2%, Gentec-EO provides unparalleled performance for both high-energy and delicate laser measurement needs. Whether used for laser fusion research, laser-powered X-rays, or high-power laser systems, Gentec-EO calorimeters are the gold standard for precision.
Custom Calorimeter 350-1100nm Round Aperture
Specifications |
|
|---|---|
| Aperture Shape: | Round |
| Aperture Size (larger Dimension): | 310 mm |
| Spectral Range: | 350 - 1100 nm |
| Maximum Energy: | 1500 J |
| Minimum Energy: | 200 J |
| Aperture Size (Round): | 19 mm Ø - 310 mm Ø (varied by model) |
| Calibration Uncertainty: | ±3 % |
| Repeatability: | ±2 % |
| Power Sensitivity: | 2 mV/W |
| Power Density: | 36 kW/cm² |
| Vacuum Compatibility: | Yes |
Features
- High Energy Capacity: Measures energy levels up to 16 kJ, with pulse energy densities greater than 15 J/cm²
- Large Aperture Sizes: Designed to handle beam sizes up to 420 x 427 mm
- Broad Spectral Range: Works with lasers from UV to NIR (190 nm to 25 µm)
- Accurate Calibration: Calibration uncertainty of ±3% and repeatability of ±2%
- High Sensitivity: Provides reliable readings for both high and low energy laser beams
- Versatile Applications: Compatible with femtosecond, nanosecond, and picosecond pulse durations
- Vacuum Compatibility: Suitable for use in high-vacuum environments
Applications
- Laser Fusion Experiments: Essential for measuring high-energy lasers in nuclear fusion research
- Femtosecond and Picosecond Laser Measurements: Perfect for extremely high peak power lasers with small beam sizes
- Inertial Confinement Fusion: Accurate energy measurement for laser heating and compression in fusion targets
- High-Power Laser Systems: Ideal for measuring large beams in research and industrial applications
- Energy Source Development: Supports clean energy research by ensuring precise energy measurement for laser-based experiments
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
A Gentec-EO calorimeter is a reliable solution for measuring the largest and highest energy laser beams.
The Gentec-EO calorimeter has high sensitivity and outstanding signal to noise ratios.
The Gentec-EO calorimeter can measure beam energies ranging from 50 mJ to 16 kJ.
The calibration uncertainty of the Gentec-EO calorimeter is ±3%, with repeatabilities better than ±2% for very large beams.
The Gentec-EO calorimeter can measure beams as large as 420 x 427 mm in aperture size, and can withstand pulse energy densities of more than 15 J/cm2.
