Description
The Gentec-EO High Energy Calorimeter is a state-of-the-art solution designed for accurately measuring extremely high-energy laser beams. With over 40 years of experience in thermal-based energy measurement, Gentec-EO is the trusted choice for applications that demand precision and reliability.

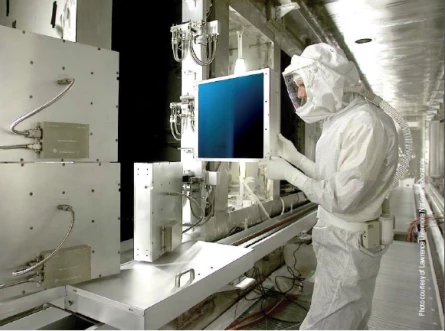

Our calorimeters are used in inertial confinement fusion (ICF) experiments and for monitoring femtosecond lasers, providing the most accurate large aperture measurement available on the market.
Custom Calorimeter 190-2500nm Round Aperture
Specifications
Aperture Shape: | Round |
---|---|
Aperture Size (larger Dimension): | 19 mm |
Spectral Range: | 190 - 25000 nm |
Maximum Energy: | 2.3 J |
Minimum Energy: | 1 mJ |
Features
- Customized Design: Our calorimeters are designed to accommodate beams ranging from 50 mJ to 16,000 J, with aperture sizes up to 420 x 427 mm, making them suitable for a wide range of applications
- Accuracy: Gentec-EO calorimeters are calibrated using NIST traceable sources and proven techniques, ensuring accuracy with calibration uncertainties of ±3% and repeatabilities better than ±2% for large beams
- Broad Spectral Range: These calorimeters cover a spectral range from 190 nm to 25 microns, offering flexibility for various laser systems
- Vacuum Compatibility: Designed to operate under vacuum conditions for specialized applications
- High Sensitivity: Gentec-EO calorimeters provide outstanding signal-to-noise ratios and high sensitivity, making them ideal for demanding energy measurement tasks
- Remote System Diagnostic: Validate calibration and verify signal response and data acquisition remotely, ensuring reliable measurements
Applications
- Laser Fusion Experiments: Used in inertial confinement fusion experiments where high-energy lasers initiate nuclear fusion reactions
- Femtosecond Lasers: Ideal for monitoring high-power femtosecond lasers with peak powers in the Petawatts (10^15 W) range
- Custom High-Energy Laser Applications: Suited for applications requiring precise energy measurements in the most extreme conditions
Frequently Asked Questions
What is a Gentec-EO calorimeter?
A Gentec-EO calorimeter is a reliable solution for measuring high energy laser beams. It is manufactured, calibrated, and serviced by Gentec-EO, which has become an expert in this field through cooperation with leading research facilities around the world.
What are the features of a Gentec-EO calorimeter?
A Gentec-EO calorimeter has outstanding signal to noise ratios, high sensitivity, vacuum compatibility, and attention to detail and workmanship. It is designed to work with a wide range of materials and can measure beam energies from 50 mJ to 16 kJ across a band from 190 nm to 25 microns.
What is the accuracy of a Gentec-EO calorimeter?
A Gentec-EO calorimeter is the most accurate large aperture measurement device on the market, with calibration uncertainties of ±3% and repeatabilities better than ±2% for very large beams. It is calibrated using NIST traceable sources and proven calibration techniques.
What applications are Gentec-EO calorimeters used for?
Gentec-EO calorimeters are used for high energy inertial confinement fusion calorimetric measurement, as well as for balancing in multi laser systems. They are also used for laser fusion experiments, where they measure the energy delivered to the outer layer of a fuel target using high-energy beams of laser light.
What is the largest aperture size that Gentec-EO has built a calorimeter for?
Gentec-EO has built calorimeters for beams as large as 420 x 427 mm in aperture size, to withstand pulse energy densities of more than 15 J/cm2.
