PINAMP Mini-DIL Optical Receivers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description

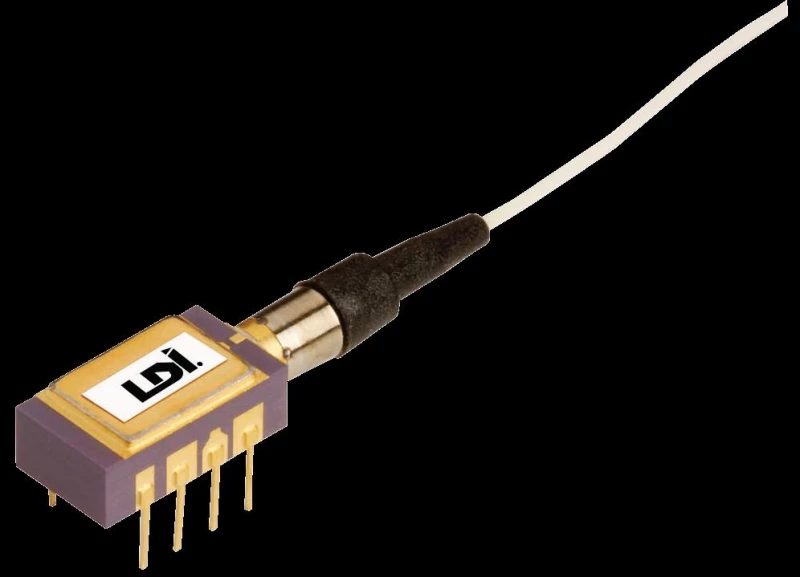

The PINAMP Mini-DIL Optical Receivers from OSI Laser Diode Inc. are designed to deliver exceptional performance in a compact form factor. Engineered for precision and reliability, these optical receivers are housed in a hermetic package, ensuring durability and protection against environmental factors. The hermetic seal not only enhances the lifespan of the product but also maintains its performance integrity over time, making it an ideal choice for various demanding applications.
These optical receivers are optimized for high sensitivity and wide dynamic range, utilizing an InGaAs PIN detector. This advanced detector technology ensures high responsivity and low dark current, providing accurate and efficient signal detection. The receivers are capable of operating across a range of data rates, including 4Mb/s, 52Mb/s, 155Mb/s, and 622Mb/s, making them versatile for different communication needs. With a single supply capability, the PINAMP Mini-DIL Optical Receivers simplify integration into existing systems, reducing the complexity and cost of deployment.
The design of the PINAMP Mini-DIL Optical Receivers adheres to the GR-468-CORE standards, ensuring they meet stringent industry requirements for performance and reliability. This adherence to standards underscores their suitability for critical applications in supervisory channels, long haul and short haul transmission networks, and data communications. The robust construction and superior performance characteristics of these optical receivers make them a valuable component in any optical communication system.
PINAMP Mini-DIL Optical Receivers
Specifications |
|
|---|---|
| Diode Type: | InGaAs |
| Wavelength Of Operation: | 1310 nm |
| Dark Current: | 0.5 nA |
| Operating Temperature: | C |
| Detector Bias: | -10 V |
Features
- Wide Data Rate Support: Operates at 4, 52, 155, and 622 Mb/s
- High Sensitivity: BER 10⁻⁹ performance with minimum -48 dBm sensitivity
- InGaAs PIN Detector: Delivers high responsivity and low dark current
- Wide Dynamic Range: Supports signal detection over a broad power range
- Hermetically Sealed Package: Ensures long-term reliability
- Single +5 V Supply: Simplified power integration
- Telcordia GR-468-CORE Compliant: Meets industry reliability standards
Applications
- Supervisory Channel Monitoring: Enables reliable overhead data signaling
- Long-Haul Transmission: Supports backbone telecom networks
- Short-Haul Networks: Ideal for metro and access networks
- DWDM Transponders: Compatible with dense wavelength division systems
- SDH/SONET Single-Mode Systems: Suitable for standard telecom frameworks
- Instrumentation & Testing: Excellent for lab and field use
- Data Communications: For high-integrity optical data links
Frequently Asked Questions
The PINAMP Mini-DIL Optical Receiver is a high sensitivity and wide dynamic range optical receiver that includes an InGaAs pin detector and is capable of 4Mb/s, 52Mb/s, 155Mb/s, and 622Mb/s data rates.
The PINAMP Mini-DIL Optical Receiver is suitable for a variety of applications, including supervisory channels, long haul and short haul transmission networks, DWDM transponders, SDH/SONET single mode applications, instrumentation and testing, and data communications.
The performance of the PINAMP Mini-DIL Optical Receiver varies depending on the data rate, but includes sensitivity, overload, transfer gain, dark current, responsivity, output impedance, supply voltage, and supply current.
The PIN assignment for the PINAMP Mini-DIL Optical Receiver includes 1 for -5 Volt Det Bias, 2 for Gnd, 3 for Gnd, 4 for Output, 5 for Gnd, 6 for Gnd, 7 for +5 Volts, and 8 for Gnd.
The operating temperature range for the PINAMP Mini-DIL Optical Receiver is -40 to +85 degrees Celsius, while the storage temperature range is also -40 to +85 degrees Celsius.
