Description
Polycrystalline PbSe is still one of the best MWIR detectors on the market for high performance without cooling. The detectors can be used uncooled at a wavelength up to 4.7 μm. At low temperatures, they achieve even higher performance levels and the wavelength shifts to 5.2 μm.

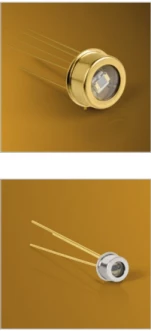

PbSe Detectors PB-Series
Laser Components USA, Inc.
Specifications
Diode Type: | PbSe |
---|---|
Wavelength Of Operation: | 5200 nm |
Max Frequency Response: | Not Specified |
Active Area Size: | Not Specified |
Dark Current: | Not Specified |
Package Type: | Not Specified |
Built-In Amplifier: | Not Specified |
Applications: | Not Specified |
Features
- Spectral range from 1 μm to 5.2 μm
- Room temperature or cooled operation
- Active area from 1 mm to 3 mm
- Good price-to-performance ratio at a high sensitivity and a good time constant
Applications
- Non-dispersive infrared gas analysis
- Medical CO2 detection
- Non-contact temperature measurement
- Flame detection
- Moisture monitoring
Frequently Asked Questions
What is a PbSe detector?
A PbSe detector is a type of infrared detector that is made from polycrystalline lead selenide.
What is the spectral range of the PbSe detector?
The PbSe detector has a spectral range from 1 μm to 5.2 μm.
Can the PbSe detector be used without cooling?
Yes, the PbSe detector can be used uncooled at a wavelength up to 4.7 μm.
What are some applications of the PbSe detector?
The PbSe detector can be used for non-dispersive infrared gas analysis, medical CO2 detection, non-contact temperature measurement, flame detection, and moisture monitoring.
What is the active area of the PbSe detector?
The PbSe detector has an active area from 1 mm to 3 mm.
