InGaAs PIN Photodiode Modules for Telecom Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description

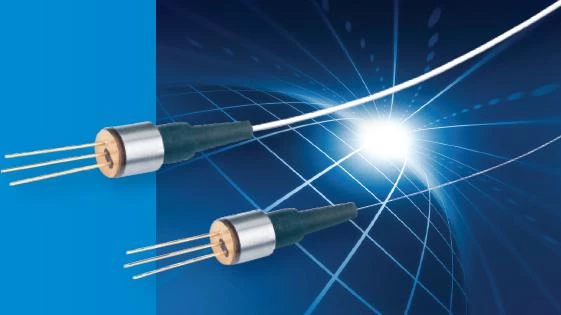

The OSI Laser Diode Inc. InGaAs PIN photodiode modules are engineered to deliver superior performance in a compact form factor, making them ideal for telecom applications. These modules are housed in a miniature coaxial package, ensuring both space efficiency and high reliability.
With a focus on maintaining low polarization-dependent loss (PDL), these photodiodes are designed to meet the stringent requirements of TELCORDIA GR-468-CORE, ensuring durability and consistent performance in demanding environments. Each module features an InGaAs PIN detector that provides high responsivity and low dark current, making it well-suited for high-speed data transfer and optical signal monitoring.
The modules are RoHS compliant, aligning with global environmental standards and ensuring safe usage and disposal. The design allows for efficient integration into various systems, enhancing the performance of DWDM system monitors, EDFA tap monitors, and high-speed receivers. OSI Laser Diode Inc. offers these photodiode modules with a commitment to quality and customer satisfaction.
The modules are available in different configurations to meet specific customer needs, with various connector options to facilitate easy integration into existing systems. Each unit undergoes rigorous testing to ensure compliance with industry standards, providing peace of mind to users who rely on these components for critical telecom applications. For more information or to place an order, customers are encouraged to contact OSI Laser Diode Inc. directly or through their network of representatives.
InGaAs PIN Photodiode Modules for Telecom Applications
Specifications |
|
|---|---|
| Diode Type: | InGaAs |
| Wavelength Of Operation: | 13101550 nm |
| Bandwidth: | 2.5 GHz |
| Detector Diameter: | 75 um |
| Responsivity: | A/W |
| Input Power: | 10 dBm |
Features
- InGaAs PIN Photodiode: Advanced photodiode technology offering superior performance.
- Low Dark Current: Ensures minimal noise for clearer signal detection.
- High Responsivity: Enhanced sensitivity with high responsivity at 1.3 µm and 1.55 µm.
- Low Polarization Dependent Loss (PDL): Consistent performance across varying polarizations.
- Miniature Package: Compact design suitable for space-constrained applications.
- RoHS Compliant: Environmentally friendly with compliance to RoHS standards.
- High Reliability: Meets TELCORDIA GR-468-CORE standards for dependable performance.
- Operating Temperature Range: -40°C to 85°C, suitable for various environmental conditions.
- Bandwidth: Up to 2.5 GHz, supporting high-speed data applications.
- Multiple Model Options: Available in models LPD 3080-P M1, M2, M3, and M4.
- Connector Options Available: Flexibility in integration with different systems.
Applications
- DWDM System Monitor: Reliable power monitoring in dense wavelength systems
- EDFA Tap Monitor: Efficient gain and noise monitoring in optical amplifiers
- High-Speed Optical Receivers: Optimized for data rates up to 10 Gbps
- SDH/SONET Receiver: Ensures signal integrity in synchronous optical networks
- Fiber Optic Instrumentation: Ideal for lab-grade test and measurement setups
Frequently Asked Questions
The OSI Laser Diode Inc. InGaAs PIN detector is a small-sized and high-performance detector module designed for telecom applications.
The detector module features high responsivity, low leakage, low back reflection, and low polarization dependent loss (PDL).
The LPD 3080 coaxial devices are available with either Corning SMF 28-CPC6 or Corning 900um TBII Fiber types.
The detector module can be used for DWDM System Monitor, EDFA Tap Monitor, High Speed Receivers, and SDH/SONET Receiver.
The operating temperature range is from -40°C to 85°C, and the storage temperature is also from -40°C to 85°C.
