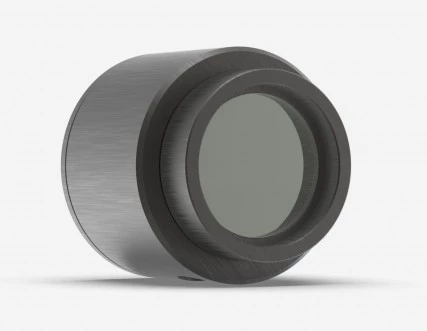

PH100-Si-HA-OD2-D0 Photodiode Laser Power Detector 750 mW

Specifications

Diode Type: Si
Wavelength Of Operation: 630 nm
Maximum Average Power: 750 mW
Noise Equivalent Power: 1 nW
Spectral Range: 630 - 1080 nm
Typical Rise Time: 0.2 sec
Power Calibration Uncertainty (630 - 980 Nm): ±4.0 %
Power Calibration Uncertainty (981 - 1049 Nm): ±5.0 %
Power Calibration Uncertainty (1050 - 1080 Nm): ±7.0 %
Peak Sensitivity: 0.5 A/W @ 980 nm
Maximum Average Power Density: 100 W/cm²
Aperture Diameter: 10 mm
Absorber: Si
Dimensions: 38.1Ø x 36D mm
Weight: 0.14 kg
Distance To Sensor Face: 13.7 mm
Document icon Download Data Sheet Download icon

Features


  • Large Apertures: Features a 10 mm diameter for the silicon sensors, allowing for efficient laser power detection.

  • Multiple Versions:

    • Silicon: 350 - 1080 nm, up to 750 mW

    • Silicon-UV: 210 - 1080 nm, up to 38 mW

    • Germanium: 800 - 1650 nm, up to 500 mW



  • Choice of Attenuators:

    • OD0.3: 50% transmission (for PH100-SI UV only)

    • OD1: 10% transmission

    • OD2: 1% transmission



  • High Accuracy: The PH100-SI-HA offers the lowest calibration uncertainty to date, ensuring precise measurements.

  • Precise Calibration: Allows wavelength selection in 1 nm steps for tailored measurements.

  • Smart Interface: Contains all the calibration data for easy setup and use.

  • Compatible Stand: STAND-D-233

  • Compatible Displays & PC Interfaces:

    • MAESTRO

    • TUNER

    • UNO

    • P-LINK (USB)

    • M-LINK

    • P-LINK (RS-232)

    • P-LINK-4 (USB)

    • P-LINK-4 (Ethernet) V2



  • Measurement Capabilities:

    • Maximum Average Power: 750 mW

    • Noise Equivalent Power: 1 nW

    • Spectral Range: 630 - 1080 nm

    • Typical Rise Time: 0.2 sec

    • Power Calibration Uncertainty:

      • ±4.0% (630 - 980 nm)

      • ±5.0% (981 - 1049 nm)

      • ±7.0% (1050 - 1080 nm)



    • Peak Sensitivity: 0.5 A/W @ 980



Applications



  • Laser power detection

  • Laser optics

  • Spectroscopy

  • Metrology
