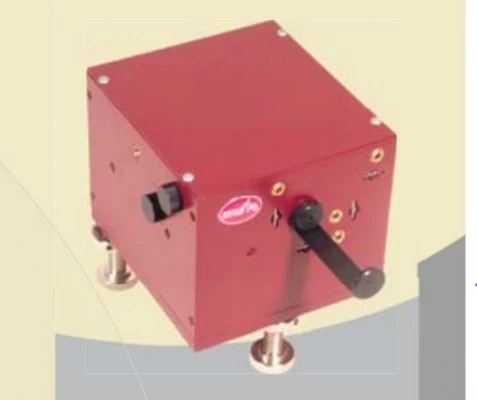

Reef-RTD Scanning Autocorrelator
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The Reef-RTD Real-Time Autocorrelator is an advanced instrument designed for the precise measurement of femtosecond and picosecond pulse durations. This state-of-the-art device is ideal for those working with various laser systems, offering a seamless experience in monitoring pulse durations ranging from 10 femtoseconds to 6 picoseconds. With multiple models available, users can select from different wavelength ranges, and the versatile Reef-RTDM model even combines these ranges using interchangeable photodetectors and optics. This flexibility ensures that the Reef-RTD can meet the diverse needs of scientific and industrial applications.
Equipped with a USB interface, the Reef-RTD easily connects to any PC running Windows OS, allowing for straightforward data acquisition and analysis. The accompanying software provides a suite of tools for visualizing, storing, and exporting pulse duration data, with real-time calculations of the autocorrelation function and full-width at half-maximum (FWHM) pulse duration. Users can also benefit from Gaussian or sech2 fitting options and observe intensity functions. The statistical viewer feature further enhances the data analysis capabilities by enabling the comparison of multiple pulse measurements.
The compact design of the Reef-RTD, measuring just 132x123x118 mm, ensures it fits seamlessly into any experimental setup, even those with stringent space constraints. For users requiring flexibility, an optional fiber input is available, which maintains the device's capability for free-space measurement. This feature allows for fast and reliable pulse duration measurement in various optical fibers, expanding the device's applicability across different experimental conditions.
Reef-RTD Scanning Autocorrelator
Specifications |
|
|---|---|
| Device Type: | Autocorrelator |
| Measurable Pulse Width: | 10 – 6000 fs |
| Wavelength Range: | 450 – 2000 nm |
| Input Polarization: | Horizontal, Vertical |
| Input Repetition Rate: | 8 kHz |
| Sensitivity: | 100 mW^2 |
| Scanning Rate: | Hz |
Features
- Wide Pulse Duration Range: Measures pulse durations from 10 fs to 6 ps, accommodating various laser systems.
- Versatile Wavelength Coverage: Models cover wavelength ranges of 450-2000 nm, with the Reef-RTDM model offering interchangeable optics and photodetectors.
- USB Connectivity: Easily connects to a PC with Windows OS for data visualization, storage, and export.
- Real-Time Data Processing: Displays autocorrelation function and FWHM pulse duration in femtoseconds with Gaussian or sech² fitting options.
- Compact Design: The Reef-RTD measures 132x123x118 mm, ideal for setups with limited space.
- Optional Fiber Input: Offers fast and reliable pulse duration measurement in various optical fibers while maintaining free-space measurement capability.
- High Scanning Rate: Scanning rate ranges from 0.1 to 20 Hz for efficient data acquisition.
- Low Linear Distortion: Linear distortion is less than 1%, ensuring accurate measurements.
- All-Reflective Optics: Ensures high-quality optical performance.
- Fringe-Resolved Autocorrelation: Provides detailed pulse analysis with fringe-resolved autocorrelation function.
- Frictionless Movement: Ensures smooth and precise operation.
- External Photodetector Option: Allows for enhanced measurement capabilities.
Applications
- Smooth and Fast Measurement: Offers real-time measurement of femtosecond and picosecond pulse duration.
- Wide Wavelength Range: Different models cover several wavelength ranges, with the Reef-RTDM model combining ranges using interchangeable photodetectors and optics.
- Flexible Input Pulse Duration: Ranges from 10 fs to 6 ps, suitable for monitoring different laser systems.
- USB Interface: Easily connects to a PC with Windows OS for data acquisition and analysis.
- Comprehensive Software: Includes tools for data visualization, storage, export, and real-time calculation of autocorrelation function and FWHM pulse duration.
- Fitting Options: Supports Gaussian or sech2 fitting, with intensity function observation.
- Statistical Viewer: Allows comparison of data from multiple pulse measurements.
- Compact Design: The small dimensions (132x123x118 mm) fit strict space requirements in experimental setups.
- Optional Fiber Input: Enables fast and reliable pulse duration measurement in optical fibers while maintaining free-space measurement capability.
Frequently Asked Questions
The pulse duration range of the Reef-RTD scanning autocorrelator is 10-6000 fs.
The scanning rate of the Reef-RTD scanning autocorrelator is 0.1-20 Hz.
The sensitivity of the Reef-RTD scanning autocorrelator is 100 mW2.
The dimension of the Reef-RTD scanning autocorrelator is 132x123x118 mm.
The necessary equipment to use the Reef-RTD scanning autocorrelator is a PC with Windows OS or oscilloscope.
