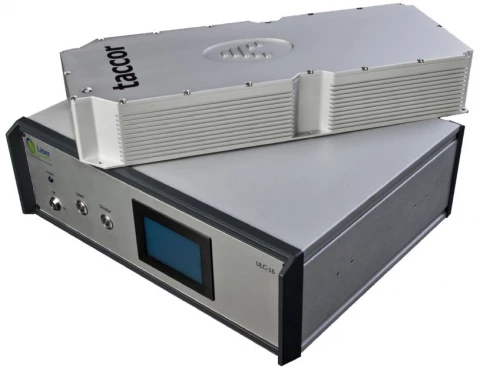

Novanta taccor tune: High-Precision Tunable Femtosecond Laser for Advanced Applications

Specifications

Mode Locked Power (avg.): 6 mW
Pulse Duration: 30 fs
Bandwidth (FWHM): 15 nm
Repetition Rate: 1000 – 15000 MHz
Pulse Energy: 0.1 nJ
Center Wavelength: 740 – 930 nm
Beam Size: 0.8 mm ± 0.3 mm for taccor powe and tune, 0.7 mm ± 0.3 mm for taccor X10
Divergence: 2 mrad ± 0.5 mrad for taccor powe and tune, < 10 mrad for taccor X10
M^2 Value: 1.2 - 1.5 model dependent
Power Stability: < 1%
Noise (RMS): < 0.05%
Polarization Ratio: > 100:1
Polarization Direction: Horizontal
Operating Temperature: 21° C ± 5° C
Document icon Download Data Sheet Download icon

Features


  • High Repetition Rates: Available in 1 GHz and 10 GHz models

  • Exceptional Power Output: Up to 1.8 W of average power

  • Ultrashort Pulse Duration: Pulses as short as <30 fs

  • Wavelength Tunability: Range from 740 nm to 930 nm

  • Intelligent Control: Monitors performance and conducts diagnostic analysis

  • Innovative Design: Compact, hermetically sealed, and vibration-resistant laser head

  • Optional Features: Active locking of repetition rate, pulse timing, and CEPLoQ™ technology for phase stabilization

  • Self-Locking and Maintenance: Ensures long-term stability and minimal downtime

  • Integrated Second Harmonic Generation: Available with HarmoniXX frequency converter for enhanced performance

Applications


  • Two photon microscopy

  • Two photon polymerization

  • Optical precision metrology

  • ASOPS

  • Optical spectroscopy

  • Ultrafast spectroscopy

  • Frequency comb generation

  • Arbitrary waveform generation

  • Calibration of spectographs (astrometry)
