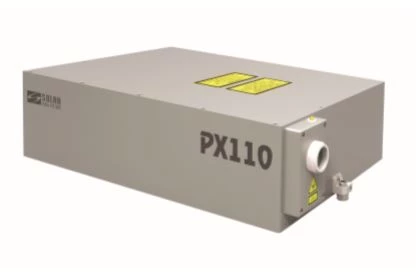

PICOSECOND DPSS Nd:YVO4 LASER PX110
Description
SOLAR LS presents a new family of high-power DPSS lasers generating laser pulses of 7 ps duration – the PX100 series. High peak and average power as well as excellent longterm radiation stability of these lasers make them an ideal tool for a wide variety of applications, from life sciences to materials processing.
The PX100 series lasers have an original optical scheme with longitudinal end-pumping and use the advanced SESAM® technology for obtaining the mode-locked regime. These solutions ensure superior TEM00 beam quality and unprecedentedly short warm-up time. The lasers of PX100 series can be easily integrated into any specialised equipment or complex measurement systems due to compact footprint, air cooling, built-in power meter module and full RS232/Ethernet interface for PC control. The lasers were developed specially for robust, low-maintenance operation. The cavity and nonlinear crystals of the PX100 series lasers are placed into a sealed rigid housing, thus ensuring reliable 24/7 operation. In the standard configuration the PX110 laser is supplied with the IR output. However, upon your request it can be supplemented with harmonic generators providing high-efficiency radiation conversion into the VIS and UV region thus expanding the laser’s capabilities for solving tasks in the field of nonlinear optics and laser spectroscopy.
PICOSECOND DPSS Nd:YVO4 LASER PX110
Specifications |
|
|---|---|
| Mode Locked Power (avg.): | 6000 mW |
| Pulse Duration: | 7000 fs |
| Bandwidth (FWHM): | N/A nm |
| Repetition Rate: | 75-75MHz |
| Pulse Energy: | 80 nJ |
| Center Wavelength: | 1064-1064nm |
Features
- Diode-pumped solid-state design
- Hermetically sealed laser head
- Air cooled
- Turn-key operation
- Low maintenance costs
Applications
Time resolved spectroscopy
Nonlinear spectroscopy
OPO pumping
Remote laser sensing
Laser cutting/ablation
LIDAR and ranging
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Belarus
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The PX100 series generates laser pulses of 7 ps duration.
The PX100 series lasers are ideal for a wide variety of applications, including time resolved spectroscopy, nonlinear spectroscopy, OPO pumping, remote laser sensing, laser cutting/ablation, and LIDAR and ranging.
The PX100 series lasers have an original optical scheme with longitudinal end-pumping and use the advanced SESAM® technology for obtaining the mode-locked regime.
Yes, upon request, the PX110 laser can be supplemented with harmonic generators providing high-efficiency radiation conversion into the VIS and UV region.
The PX100 series lasers have a full RS232/Ethernet interface for PC control.
