Description
The K2-1000-mini is a compact ultralow-noise 1 GHz femtosecond laser engineered for advanced spectroscopy, precision metrology, nonlinear imaging, and optical frequency comb applications. Designed as a turnkey ultrafast laser platform for OEM integration and research environments, the system combines high output power, ultrashort pulse generation, and exceptional timing stability in a compact all-in-one architecture.
The laser is available as both a traditional mode-locked femtosecond oscillator and an optional dual-comb source capable of generating two highly correlated pulse trains from a single cavity. This architecture enables highly stable dual-comb spectroscopy, precision ranging, and pump-probe measurements without the complexity typically associated with multi-laser synchronization systems.
Operating at a 1 GHz repetition rate with output power exceeding 1.5 W and pulse durations below 200 fs, the K2-1000-mini is optimized for applications requiring low relative intensity noise (RIN), ultralow timing jitter, and high signal-to-noise performance. The platform is suitable for nonlinear microscopy, supercontinuum generation, amplifier seeding, gas sensing, time-resolved spectroscopy, and frequency comb metrology.
Additional configuration options include sub-100 fs pulse operation, fiber-coupled output, wavelength extension via OPO systems, and passively cooled low-power versions for integration into compact photonic instruments.
Why Single-Cavity Dual-Comb Technology?
Traditional dual-comb systems typically require synchronization of two separate mode-locked lasers, increasing system complexity and sensitivity to environmental drift. The K2-1000-mini simplifies this architecture by generating two highly coherent pulse trains from a single cavity, enabling improved mutual coherence, reduced timing drift, and enhanced stability.
This approach supports compact, robust, and easier-to-integrate dual-comb systems for spectroscopy, ranging, and ultrafast measurement applications while reducing synchronization overhead and improving measurement reliability.
Key Advantages
- Ultralow Noise Performance
The K2-1000-mini delivers exceptional noise characteristics with timing-jitter PSD below 0.01 fs²/Hz above 1 kHz and relative intensity noise below -160 dBc/Hz above 1 MHz. These ultralow-noise characteristics are critical for precision spectroscopy, frequency comb applications, and high-sensitivity optical measurements. - Single-Cavity Dual-Comb Architecture
The optional dual-comb configuration generates two highly correlated pulse trains from a single laser cavity, enabling simplified synchronization, improved mutual coherence, reduced system complexity, and enhanced long-term stability for dual-comb spectroscopy and precision ranging applications. - High Repetition Rate Operation
With a 1 GHz repetition rate, the laser supports faster acquisition speeds, improved averaging performance, and enhanced signal quality in spectroscopy, microscopy, and ultrafast measurement systems. - Compact OEM-Ready Design
The compact all-in-one architecture enables straightforward integration into scientific instruments, OEM systems, and advanced photonic platforms while maintaining high performance and operational stability.

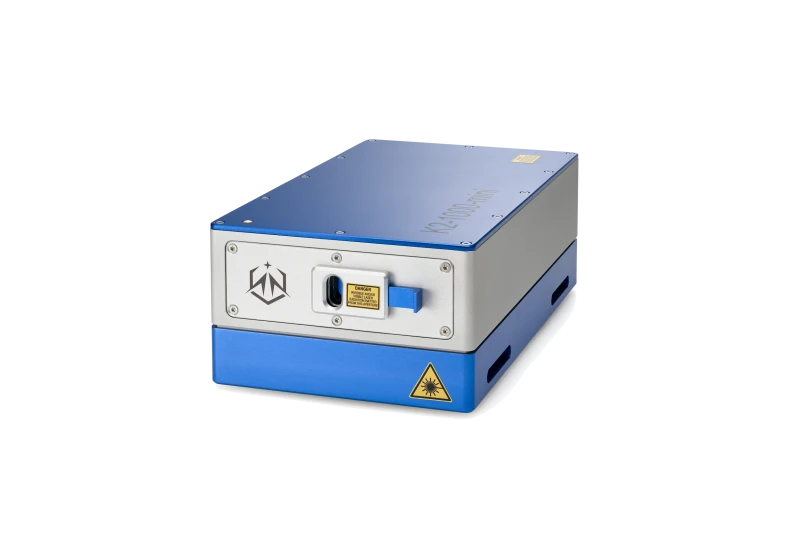

K2-1000-mini Ultralow-Noise 1GHz Laser for Spectroscopy and Nonlinear Applications
Specifications
| Center Wavelength (option 1): | 1040 – 1060 nm |
|---|---|
| Bandwidth (FWHM): | 20 nm |
| Pulse Duration: | 200 fs |
| Optional Pulse Duration: | 100 fs |
| Repetition Rate: | 900 – 1100 MHz |
| Mode Locked Power (avg.): | 1500 mW |
| Pulse Energy: | 1.5 nJ |
| Timing-jitter PSD: | <0.01 fs²/Hz for frequencies above 1 kHz |
| Individual Comb RIN: | <-160 dBc/Hz for frequencies above 1 MHz |
| Repetition Rate Difference: | Tunable between -100 kHz and +100 kHz |
| Relative Timing Noise: | <10 fs [100 Hz, 100 kHz] |
| Dimensions: | 240 x 140 x 85 mm |
| Beam Output Height: | 60 mm on (W) side |
| Operating Temperature: | 15 – 30°C with <25°C baseplate |
| Relative Humidity: | 20 – 70% (non-condensing) |
| Power Consumption: | <75 W |
| Electrical Requirements: | 24 VDC, 5 A |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Compact Solution for Spectroscopy: Designed for easy integration into various spectroscopy applications.
- High-Power for Nonlinear Applications: Delivers high power suitable for nonlinear optical applications.
- Ultralow RIN and Timing Noise: Ensures minimal relative intensity noise and timing noise for precision applications.
- 1 GHz Repetition Rate: Offers a stable 1 GHz repetition rate for consistent performance.
- High Power Operation: Capable of delivering over 1.5 W of output power.
- Ultrashort Pulses: Produces pulses with durations of less than 200 fs, with a sub-100 fs option available.
- Dual-Comb Option: Features a dual-comb mode-locked option for advanced applications.
- Fiber Coupled Option: Available with a fiber-coupled configuration for flexible deployment.
- Passively Cooled Version: Offers a low-power, passively cooled version for efficient operation.
- Wavelength Options via K2-OPO-mini: Provides customizable wavelength options through the K2-OPO-mini.
- Custom Options Available: Tailored solutions for specific application needs.
- Applications: Ideal for time-resolved spectroscopy, multi-species gas sensing, precision ranging, and nonlinear microscopy.
Applications
- Dual-Comb Spectroscopy
The K2-1000-mini enables high-speed dual-comb spectroscopy using two highly correlated pulse trains generated within a single cavity. Its ultralow timing noise and high mutual coherence support precise broadband spectral measurements for gas sensing, chemical analysis, and molecular fingerprinting applications. - Time-Resolved Spectroscopy
With pulse durations below 200 fs and excellent timing stability, the laser is well suited for ultrafast pump-probe and time-resolved spectroscopy experiments. The high repetition rate improves acquisition speed and averaging performance for weak transient signals. - Nonlinear Microscopy
The combination of high peak power, ultrashort pulses, and low noise makes the K2-1000-mini ideal for nonlinear imaging techniques such as two-photon excitation microscopy and harmonic generation microscopy. The compact footprint also supports integration into advanced biomedical imaging systems. - Precision Ranging and LiDAR
The optional dual-comb configuration supports precision optical ranging and interferometric distance measurements with high temporal precision and dead-zone-free operation. Applications include industrial metrology, distance measurement, and next-generation LiDAR systems. - Supercontinuum Generation
The laser’s high average power and femtosecond pulse characteristics make it suitable for nonlinear spectral broadening and supercontinuum generation in specialty fibers and photonic crystal fibers. - Optical Frequency Comb Metrology
The ultralow-noise architecture and GHz repetition rate support optical frequency comb applications requiring exceptional phase stability, low jitter, and precise timing synchronization.
