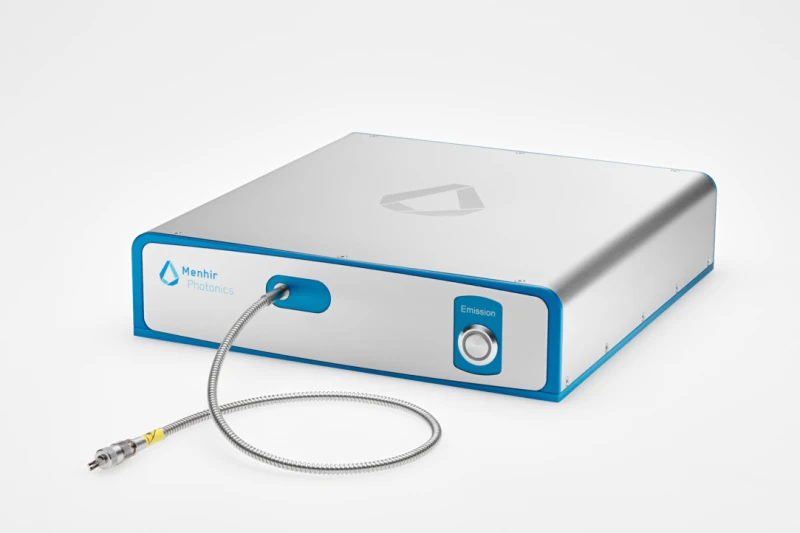

MENHIR-1030 Series Industrial-Grade Laser 1030 nm 1 GHz

Name: MENHIR-1030 Series Industrial-Grade Laser 1030 nm 1 GHz
Brand: Menhir Photonics AG
Availability: InStock

Description

The MENHIR-1030 Series is the first industrial-grade laser of its kind operating at 1030 nm, delivering the lowest phase noise and timing jitter available on the market. The system is fully self-contained and passively air-cooled, ensuring exceptional robustness and reliability. This document presents a comprehensive characterization of the laser operating at a repetition rate of 1 GHz.

Power and Repetition Rate Stability

The MENHIR-1030 SERIES is distinguished by its exceptional long-term power stability, maintaining consistent performance over extended periods. It operates with shot noise-limited performance above 4 MHz, ensuring minimal interference and maximum clarity. The laser's repetition rate stability is equally impressive, featuring ultra-low pulse-to-pulse jitter. This stability is further enhanced by the ability to synchronize the repetition rate to an external RF reference, providing flexibility and precision in demanding applications.

With its state-of-the-art design and superior performance characteristics, the MENHIR-1030 SERIES is a testament to Menhir Photonics AG's commitment to innovation and quality. Whether for industrial or research purposes, this laser series offers unmatched reliability and performance, making it a valuable asset for any high-precision application.

Specifications

Mode Locked Power (avg.):	30 mW
Pulse Duration:	300 fs

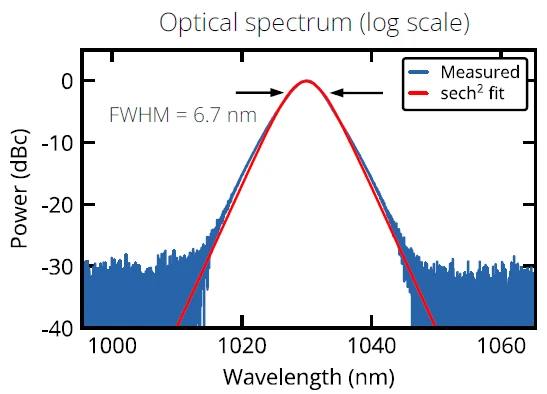

Bandwidth (FWHM):	5 nm
Repetition Rate:	1000 – 1000 MHz
Pulse Energy:	0.03 nJ
Center Wavelength:	1025 – 1035 nm
Power:	> 30 mW
Bandwidth:	> 5 nm
Pulse Width:	< 300 fs
Beam Characteristics:	TEM00, M2 < 1.05
Dimensions:	250 x 260 x 60 mm

Download Data Sheet

Features

Industrial-Grade Laser: The MENHIR-1030 SERIES is the first of its kind, operating at 1030 nm with the lowest phase noise and timing jitter available.
Compact Design: Dimensions of 250 x 260 x 60 mm3, making it suitable for integration into various systems.
Repetition Rate Stability: Features extreme repetition rate stability with ultra-low pulse-to-pulse jitter. Can be synchronized to an external RF reference.
Phase Noise: Free-running and locked phase noise measured on the 10th harmonic at 10 GHz.
Custom Modifications: Available upon request to meet specific application needs.

Applications

Ultra-Stable Frequency Source: The MENHIR-1030 SERIES operates at a repetition rate of 1 GHz, providing a highly stable frequency source for various applications.
Low Phase Noise and Timing Jitter: Achieves the lowest phase noise and timing jitter on the market, making it ideal for precision applications.
Industrial-Grade Design: The laser is passively air-cooled and fully self-contained, ensuring extreme robustness and reliability.
High Power Output: Delivers power greater than 30 mW, suitable for demanding applications.
Wavelength Range: Operates within a wavelength range of 1025 – 1035 nm, providing flexibility for different uses.
Clean Soliton Pulse: Produces a clean soliton pulse with a bandwidth greater than 5 nm and a pulse width of less than 300 fs.
Beam Quality: Features a TEM00 beam with an M2 value of less than 1.05, ensuring high beam quality.
Compact Dimensions: The laser's dimensions are 250 x 260 x 60 mm3, making it compact and easy to integrate.
Power Stability: Demonstrates high long-term power stability, shot noise-limited above 4 MHz.
Repetition Rate Stability: Offers extreme repetition rate stability and ultra-low pulse-to-pulse jitter, with the ability to synchronize to an external RF reference.
Custom Modifications: Custom modifications are available upon request to meet specific application needs.

Name

Work Email

Organization (recommended)

How many do you need?

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

Switzerland

Sold by:

Menhir Photonics AG

On FindLight:

since 2018

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the MENHIR-1030 SERIES?

The MENHIR-1030 SERIES is an industrial-grade laser that operates at 1030 nm, known for its low phase noise and timing jitter. It is passively air-cooled and fully self-contained, offering robustness and reliability.

What are the key specifications of the MENHIR-1030 SERIES?

The key specifications include a repetition rate of 1.000 GHz, power greater than 30 mW, wavelength range of 1025 – 1035 nm, bandwidth greater than 5 nm, pulse width less than 300 fs, and beam characteristics of TEM00 with M2 < 1.05.

What is the pulse width of the MENHIR-1030 SERIES laser?

The pulse width of the MENHIR-1030 SERIES laser is less than 300 fs, and it is transform limited.

How stable is the power output of the MENHIR-1030 SERIES?

The MENHIR-1030 SERIES demonstrates high long-term power stability and is shot noise-limited above 4 MHz.

Can the repetition rate of the MENHIR-1030 SERIES be synchronized?

Yes, the repetition rate of the MENHIR-1030 SERIES can be synchronized to an external RF reference.

What are the dimensions of the MENHIR-1030 SERIES laser?

The dimensions of the MENHIR-1030 SERIES laser are 250 x 260 x 60 mm.

What is the phase noise performance of the MENHIR-1030 SERIES?

The MENHIR-1030 SERIES features ultra-low pulse-to-pulse jitter and the phase noise is measured on the 10th harmonic, i.e., at 10 GHz.
