Description

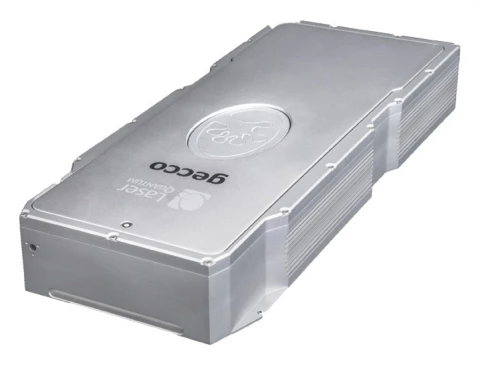

The Gecco ultrafast femtosecond laser, engineered by Laser Quantum, is a compact and fully equipped system designed for seamless integration into various scientific and industrial settings. With its robust, sealed enclosure, the Gecco delivers over 600 mW of average power and offers pulse durations of less than 20 fs, depending on the selected configuration.

Optimized for both precision and ease of installation, the Gecco features a vibration-resistant laser head with an integrated pump source, coupled with a separate, fully-featured control unit. This setup not only simplifies system integration but also enhances overall reliability and performance stability. The laser supports a standard repetition rate of 80 MHz, adjustable between 70-110 MHz, with optional locking to external sources for enhanced precision.

One of the standout features of the Gecco is its industry-leading lifetime and low ownership costs, backed by a 2-year or 5000-hour warranty that covers all operational specifications. These attributes make the Gecco an ideal choice for applications requiring high precision and stability, such as two-color pump-probe experiments, coherent optical phonon measurements, and other advanced optical diagnostics.

With its self-starting capability and robust design, the Gecco femtosecond laser is well-suited for researchers and engineers looking for a reliable, high-performance laser system that combines high power output with exceptional pulse quality and stability.

Gecco Ultrafast Femtosecond Laser: Compact, High-Precision Laser for Advanced Optical Applications

Specifications

Center Wavelength (option 1): 800 – 800 nm
Center Wavelength (option 2): Not Specified
Center Wavelength (option 3): Not Specified
Bandwidth (FWHM): 40 nm
Pulse Duration: 20 fs
Optional Pulse Duration: Not Specified
Repetition Rate: 70 – 110 MHz
Mode Locked Power (avg.): 600 mW
Pulse Energy: 7.5 nJ
Beam Size: 0.8 mm ± 0.3 mm
Divergence: <3 mrad
M^2: <1.2
Power Stability (RMS Within 24 Hours): <1%
RMS Noise: <0.1%, < 0.05% (with “Pure” option)
Polarization Ratio: >100:1
Polarization Direction: Horizontal

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Power Output: Delivers over 600 mW of average power
  • Ultra-short Pulses: Pulse durations available in <20 fs
  • Compact Design: Sealed, vibration-resistant laser head with integrated pump source
  • Optional Repetition Rate Locking: Active repetition rate control for locking to an external signal source
  • Ease of Integration: Designed for simple installation and system integration
  • Long Lifetime and Low Maintenance: Industry-leading lifetime with very low cost of ownership
  • Warranty: Comes with a 2-year/5000-hour warranty covering all operating specifications

Applications

  • Two-photon microscopy
  • Two-photon polymerization
  • Optical precision metrology
  • Asynchronous Optical Sampling (ASOPS)
  • Optical spectroscopy
  • Ultrafast spectroscopy
  • Frequency comb generation
  • Arbitrary waveform generation
  • Calibration of spectrographs (astrometry)

Frequently Asked Questions

What is the average power output of the Gecco Ultrafast Femtosecond Laser?
The Gecco laser offers an average power output of over 600 mW.
What are the available pulse durations for the Gecco laser?
Users can choose between pulse durations of less than 15 femtoseconds (fs) or less than 20 fs, depending on their specific application requirements.
What is the repetition rate of the Gecco Ultrafast Femtosecond Laser?
The laser operates at a repetition rate of 80 MHz, with options ranging from 70 to 110 MHz available upon order.
How does the Gecco laser ensure precise repetition rate control?
The Gecco laser offers optional repetition rate locking to an external source for enhanced precision. It utilizes motorized mirror movement and high-speed feedback through piezomechanic transducers, regulated by the TL-1000 repetition rate stabilization unit to achieve timing jitter of less than 100 femtoseconds (fs).
What applications is the Gecco laser suitable for?
The Gecco Ultrafast Femtosecond Laser is ideal for a wide range of applications including two-photon microscopy, optical precision metrology, ultrafast spectroscopy, frequency comb generation, and more.
What warranty does the Gecco laser come with?
The Gecco laser is covered by a comprehensive 2-year or 5000-hour warranty, ensuring reliability and performance consistency.
What are the key features of the Gecco Ultrafast Femtosecond Laser?
Key features include a compact, sealed enclosure design, integrated pump source, precise pulse duration options, high average power output, optional repetition rate locking, and a user-friendly control unit.
How quickly does the Gecco laser warm up for operation?
The Gecco laser has a warm-up time of less than 20 minutes, ensuring rapid readiness for use in research and industrial applications.
Is the Gecco laser suitable for use in challenging environments?
Yes, the Gecco laser is designed to be stable and robust, making it suitable for operation in demanding environments while maintaining high performance and reliability.
How can I integrate the Gecco Ultrafast Femtosecond Laser into my existing setup?
The Gecco laser is designed for simple installation and seamless integration into existing systems, ensuring ease of use and compatibility with various experimental setups and applications.
