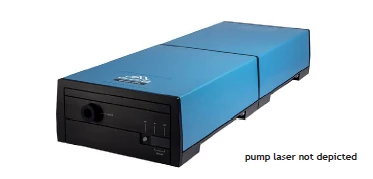

APE Levante Emerald Engine Pump Laser 532 nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The Levante Emerald is a state-of-the-art, widely tunable, and fully automated Near-Infrared Optical Parametric Oscillator (NIR-OPO). This advanced system offers an impressive output wavelength range from 640 nm to 2300 nm, making it a versatile choice for various scientific and industrial applications. Designed to work seamlessly with a green pump laser, the Levante Emerald accommodates pulse widths from 2 to 20 picoseconds and pump powers ranging from 2 to 20 watts. This adaptability ensures that the generated pulses are near the transformation limit, providing high beam quality and stable long-term operation. The robust mechanical design of the Levante Emerald guarantees excellent beam stability, making it a reliable tool for researchers and engineers.
The Levante Emerald stands out with its full automation capabilities, which include software-controlled tuning. This is achieved through cutting-edge control electronics and internal diagnostic systems, all managed via an intuitive software interface. The PC control software, equipped with a command interface via TCP/IP, allows for seamless integration into larger test setups and software-controlled environments. Users can effortlessly tune the wavelength by simply entering the desired value into the control software. The system accurately measures the actual wavelength and bandwidth of the OPO Signal with a high-resolution real-time spectrometer, while calibrated photodiodes ensure precise power measurement.
The Levante Emerald offers a sweep function for rapid tuning over a specific wavelength range, allowing for automatic transitions from an initial to a final wavelength in minimal time. This feature is complemented by predefined hold times for spectral steps, enhancing the user experience. The system simultaneously provides Signal and Idler beams, which are collinearly radiated from the OPO, ensuring perfect spatial and temporal overlap at the output.
This continuous tunability of photon energy differences between Signal and Idler makes the Levante Emerald an ideal choice for multi-color excitation experiments, such as Stimulated Raman Scattering (SRS) and Coherent Anti-Stokes Raman Scattering (CARS), as well as multi-photon microscopy. With its comprehensive automation, precise control, and versatile capabilities, the Levante Emerald is a powerful tool for researchers and professionals seeking advanced solutions in laser technology.
APE Levante Emerald Engine Pump Laser 532 nm
Specifications |
|
|---|---|
| Repetition Rate: | 80 MHz |
| Total Tuning Range: | 690 – 990 nm |
| Core Tuning Range: | 690 – 990 nm |
| Output Power (avg): | 4 W |
| Pulse Duration: | 6 fs |
| Idler Polarization: | Vertical |
| Signal Polarization: | Horizontal |
Features
- Tunable NIR-OPO: The Levante Emerald offers a tunable and fully automated near-infrared optical parametric oscillator (NIR-OPO) with an output wavelength range from 640 nm to 2300 nm.
- Adaptable to Green Pump Lasers: Works with green pump lasers with pulse widths between 2 ... 20 ps and pump powers from 2 ... 20 W.
- High Beam Quality: Produces pulses close to the transformation limit with excellent beam stability and robust mechanical design for stable long-term operation.
- Fully Automated Tuning: Features automated wavelength tuning by simply entering the desired wavelength using control software.
- Multiple Versions Available: Choose from 2 ps, 6 ps, or 15 ps versions to suit specific applications.
- Dual Tunable Output Beams: Provides two tunable output beams with different colors (Signal and Idler), which are overlapped in space and time. A beam separator is included.
- Ideal for Coherent Raman Imaging: Offers an ideal 2 ps pulse width for applications like Coherent Raman imaging.
- Remote Access: Remote access is available for customer support and error diagnosis.
- Automated Version: Full automation with state-of-the-art control electronics, internal diagnostic systems, and an intuitive software interface.
- Easy Integration: PC control software equipped with a command interface (via TCP/IP) for easy integration into larger test setups.
- Real-Time Spectrometer: Internal high-resolution real-time spectrometer measures actual wavelength and bandwidth, with power checked by calibrated photodiodes.
- Sweep Mode for Fast Tuning: Sweep function allows automatic tuning over a specific wavelength range with predefined hold times.
- Multi-Color Experiments: Signal and Idler are available simultaneously with perfect spatial and temporal overlap, ideal for experiments like SRS and CARS.
- Compatibility with Various Pump Lasers: Compatible with pump lasers like Emerald Engine (516 nm) and Coherent PALADIN Advanced (532 nm) for different pulse widths and powers.
- Output Power: Outputs > 0.7 W at 800 nm, with variations depending on the model and settings.
Applications
- Levante Emerald is a widely tunable and fully automated NIR-OPO. The output wavelength ranges from 640 nm to 2300 nm.
- The OPO is adaptable to work with a green pump laser with pulse widths between 2 ... 20 ps and pump powers from 2 ... 20 W.
- The pulses are close to the transformation limit and are of high beam quality. The Levante Emerald has a robust mechanical design that offers stable long-term operation and excellent beam stability.
- Fully automated tuning
- 2 ps or 6 ps or 15 ps Version
- Wavelength tuning from 640 ... 2300 nm
- Control Software: Simply enter the desired wavelength
- Two tunable output beams with different colors (Signal and Idler)
- Signal and Idler beams overlapped in space and time | Beam separator included
- Ideal 2 ps pulse width for Coherent Raman imaging
- Remote access available for customer support and error diagnosis
Frequently Asked Questions
The Levante Emerald NSP is a fully automated high power NIR light source of ps pulses that is based on a synchronously pumped optical parametric oscillator (OPO), with an external green ps laser as pump.
The Levante Emerald NSP has an output power of up to 6 W.
The Levante Emerald NSP is suitable for spectroscopy, nonlinear optics, biomedical engineering, and microscopy.
Yes, the Levante Emerald NSP is fully automated and can be controlled through software. The wavelength tuning is done by simply entering the desired wavelength into the Levante OPO control software.
Yes, the Levante Emerald NSP is ideal for multi-color excitation experiments such as SRS (Stimulated Raman Scattering) or CARS (Coherent Anti-Stokes Raman Scattering) because the photon energy difference between signal and Idler is continuously tunable.
