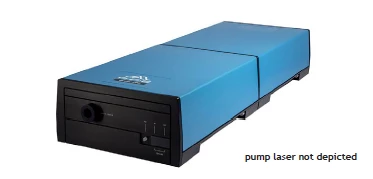

APE Levante Emerald Engine Pump Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The Levante Emerald is a state-of-the-art, widely tunable, and fully automated NIR-OPO designed to deliver precision and versatility in laser applications. With a remarkable output wavelength range from 640 nm to 2300 nm, this OPO is engineered to work seamlessly with green pump lasers, accommodating pulse widths from 2 to 20 picoseconds and pump powers ranging from 2 to 20 watts. The high beam quality and pulses close to the transformation limit ensure superior performance, while the robust mechanical design guarantees stable long-term operation and excellent beam stability.
The Levante Emerald offers a fully automated experience, featuring software-controlled tuning facilitated by cutting-edge control electronics and internal diagnostic systems. The intuitive PC control software, equipped with an additional TCP/IP command interface, allows for seamless integration into larger test setups and software-controlled environments. Users can effortlessly achieve wavelength tuning by simply entering the desired wavelength into the Levante OPO control software. An internal high-resolution real-time spectrometer measures the actual wavelength and bandwidth of the OPO Signal, while calibrated photodiodes ensure accurate power readings.
Equipped with a sweep function, the Levante Emerald enables fast tuning over specific wavelength ranges, allowing automatic transitions from initial to final wavelengths in minimal time. The system offers simultaneous availability of Signal and Idler beams, which are collinearly radiated to ensure perfect spatial and temporal overlap at the output. This continuous tunability of the photon energy difference between Signal and Idler makes the Levante Emerald an ideal choice for multi-color excitation experiments, such as SRS (Stimulated Raman Scattering) and CARS (Coherent Anti-Stokes Raman Scattering), as well as multi-photon microscopy.
APE Levante Emerald Engine Pump Laser
Specifications |
|
|---|---|
| Repetition Rate: | 80 MHz |
| Total Tuning Range: | 640 – 2030 nm |
| Core Tuning Range: | 640 – 960 nm |
| Output Power (avg): | 3 W |
| Pulse Duration: | 2000 fs |
| Idler Polarization: | Vertical |
| Signal Polarization: | Horizontal |
Features
- Wide Tunability: The Levante Emerald is a fully automated NIR-OPO with an output wavelength range from 640 nm to 2300 nm, adaptable to green pump lasers with pulse widths between 2 to 20 ps and pump powers from 2 to 20 W.
- High Quality Pulses: Delivers pulses close to the transformation limit with high beam quality, ensuring stable long-term operation and excellent beam stability.
- Fully Automated Tuning: Features a robust mechanical design and fully automated tuning capabilities, allowing easy control via intuitive software.
- Multiple Pulse Width Options: Available in 2 ps, 6 ps, or 15 ps versions for versatile applications.
- Dual Tunable Output Beams: Provides two tunable output beams with different colors (Signal and Idler), both overlapped in space and time, with an included beam separator.
- Remote Access: Offers remote access for customer support and error diagnosis, enhancing user convenience.
- Advanced Control Software: Simply enter the desired wavelength into the control software, equipped with an additional command interface (via TCP/IP) for easy integration into larger test setups.
- Real-Time Monitoring: Internal high-resolution real-time spectrometer measures the actual wavelength and bandwidth, with power checked by calibrated photodiodes.
- Sweep Mode Tuning: Fast tuning over a specific wavelength range with predefined hold times for spectral steps, ideal for multi-color excitation experiments like SRS or CARS.
- Multi-color Experiments & Multi-photon Microscopy: Perfect for experiments requiring simultaneous Signal and Idler beams with intrinsically perfect spatial and temporal overlap.
- Pump Laser Compatibility: Compatible with 516 nm and 532 nm pump lasers, including models like APE's Emerald Engine and Coherent PALADIN Advanced 532-20000.
- Output Power: Delivers output power of > 0.7 W at 800 nm and > 0.9 W, ensuring effective performance across various applications.
Applications
- Coherent Raman Imaging: Ideal 2 ps pulse width for SRS and CARS microscopy
- Multi-Photon Microscopy: Simultaneous multi-color excitation with tunable signal-idler separation
- Spectroscopy: High-resolution tunable source for nonlinear optical studies
- Quantum Optics & Photonics Research: Precise wavelength control and high beam quality
- Advanced Laser Development: Compatible with harmonic and difference frequency generation modules
Frequently Asked Questions
The Levante Emerald NSP is a fully automated high power NIR light source of ps pulses based on a synchronously pumped optical parametric oscillator (OPO).
The Levante Emerald NSP can have an output power of up to 6 W.
The Levante Emerald NSP is suitable for spectroscopy, nonlinear optics, biomedical engineering, and microscopy.
The Levante Emerald NSP has an output wavelength range from 640 nm to 2300 nm.
The Levante Emerald 2 ps has an ideal pulse width for Coherent Raman imaging, while the Levante Emerald 6 ps has a longer pulse width.
