Titan Mid-IR Broadly Tunable Laser for Spectroscopy and Metrology
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Spain
-
Sold by:
-
On FindLight:
since 2014
Description
The extraordinary Titan is the pioneer commercial mid-infrared continuous-wave optical parametric oscillator (CW OPO). Introduced to the market in 2018, Titan delivers continuously tunable output wavelengths in the mid-IR, across 1435 - 4138 nm (6969-2416 cm-1)*. The full spectral range is achieved with a single set of optics without the need to exchange any module.
Radiantis' unique expertise in frequency converted lasers has enabled the exceptional design of the Titan OPO family. As a sealed and fully-automated system, with excellent TEM00 beam quality (M2 < 1.3) and beam pointing stability (<40 μrad), Titan delivers high CW output power (>3 W at the peak of the tuning range) with a linewidth <100 MHz in the signal range.
Hands-free operation is ensured thanks to the all-digital control electronics and user control software which can be accessed through the PC GUI interface installed on a dedicated laptop delivered with the OPO. Titan can also be controlled via remote commands.

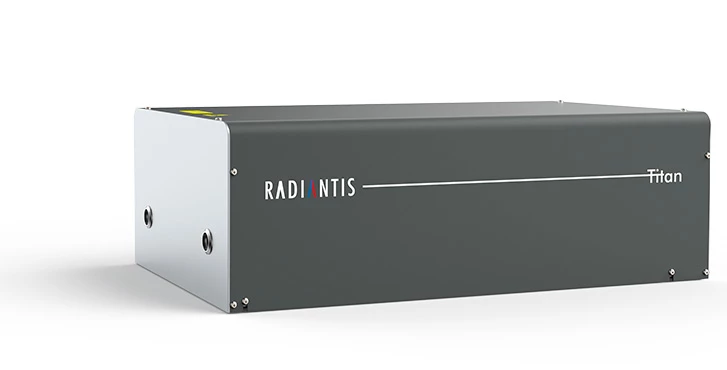

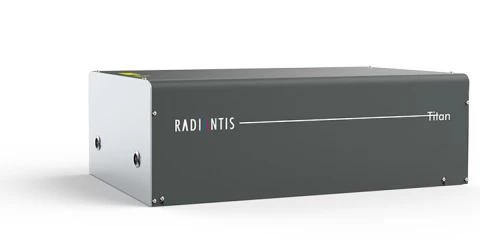

Titan integrates four key modules: a rack DFB fiber laser and amplifier unit, the OPO optical head, a rack OPO all-digital control electronics, and a rack compact water-cooler. The fiber laser, the OPO control electronics, and the water cooler are rackable. The OPO optical head needs to be positioned on an optical table to reduce vibrations and ensure maximum stability.
The broad wavelength range, narrow linewidth, and fully-automated tunability across the mid-IR enable cutting-edge research in diverse areas such as spectroscopy and microscopy for biotechnology, fundamental physics and chemistry, as well as material characterization, device calibration, and quantum technologies.
Several Titan models are available which provide different characteristics of average output power and wavelength coverage, catering to a wide range of scientific and technological applications.
Titan Mid-IR Broadly Tunable Laser for Spectroscopy and Metrology
Specifications |
|
|---|---|
| Repetition Rate: | 80 MHz |
| Total Tuning Range: | 1450 – 4000 nm |
| Core Tuning Range: | 1450 – 4000 nm |
| Output Power (avg): | 5 W |
| Idler Polarization: | Horizontal |
| Signal Polarization: | Horizontal |
| Output Mode: | CW |
| Power Stability (Signal): | <0.5% rms |
| Power Stability (Idler): | <0.5% rms |
| Size (W X L X H): | 610 x 350 x 200 mm (24.0 x 13.8 x 7.9 inch) |
Features
- Wide Wavelength Tuning: Achieve continuous tuning across 1435 - 4138 nm (6969 - 2416 cm-1).
- Hands-Free Motorized Tuning: Operate with ease using a GUI interface and available control drivers.
- Sealed and Compact Design: Enjoy a virtually maintenance-free system with a compact footprint.
- Spectral Monitoring: Integrated spectrometer for precise spectral analysis.
- High Beam Quality: Excellent TEM00 beam quality (M2 < 1.3) and stable beam pointing (<40 μrad).
- High Output Power: Delivers >3 W at the peak of the tuning range with a linewidth <100 MHz.
- Fully Automated System: All-digital control electronics for hands-free operation and remote command capability.
- Integrated Modules: Includes a rack DFB fiber laser and amplifier, OPO optical head, rack OPO control electronics, and a compact water-cooler.
- Versatile Applications: Ideal for high-resolution spectroscopy, microscopy, quantum technology, device characterization, and mid-IR communications.
- Proven Expertise: Designed by Radiantis, renowned for frequency converted lasers, ensuring exceptional performance and reliability.
Applications
- High-Resolution Spectroscopy: Ideal for molecular fingerprinting and absorption studies
- Microscopy: Enables advanced imaging in mid-IR spectral regions
- Quantum Technologies: Supports quantum optics and information research
- Device and Component Characterization: Accurate analysis of optical components and materials
- Mid-IR Communications: Facilitates development of mid-infrared optical communication systems
- Metrology: Provides precise measurements for fundamental and applied research
Frequently Asked Questions
The Titan CW OPO is suitable for diverse areas such as spectroscopy and microscopy for biotechnology, fundamental physics and chemistry, as well as material characterization, device calibration, and quantum technologies.
Yes, the Titan CW OPO is a sealed and fully-automated system with all-digital control electronics and user control software. It also comes with a PC GUI interface installed on a dedicated laptop.
The Titan CW OPO delivers high CW output power (>3 W at the peak of the tuning range) with a linewidth <100 MHz in the signal range.
No, the Titan CW OPO has hands-free motorized tuning with a GUI interface. Control drivers are also available.
The Titan CW OPO has a wavelength range of 1435 - 4138 nm (6969-2416 cm-1).
