Linear Axis Fast Scanning Mirror for Phase Light Modulation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description

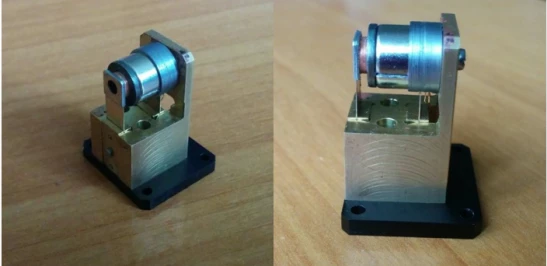

The Linear Axis Fast Scanning Mirror is a cutting-edge component designed for precision phase light modulation. This advanced linear mirror scanner is engineered to deliver exceptional performance in applications requiring high-speed and accurate scanning capabilities. Its compact design, weighing only 16 grams with dimensions of 12mm in width, 18mm in depth, and 22mm in height, makes it an ideal choice for integration into various optical systems where space is a premium.
One of the standout features of this scanning mirror is its ability to maintain a resonant frequency range between 200 and 500 Hz, with minimal parasitic angular deflection of reflected light, less than 10 arc seconds. This ensures that the mirror delivers precise and reliable performance, crucial for applications demanding high accuracy. The mirror's working aperture ranges from 5 to 8mm, and it can accommodate a wide wavelength range as required by specific applications.
Designed for efficiency, the Linear Axis Fast Scanning Mirror operates with a maximum current of 100mA and features a coil resistance of 2.9 Ohm ± 0.1 Ohm. It is powered by a standard sine wave generator with tunable parameters, allowing for regulated current up to 80 mA and a resonant frequency range of 280 to 350 Hz. This flexibility in operation makes it a versatile component for various optical and photonic systems.
Manufactured by OFH, this 1D actuator is a testament to advanced engineering and design, providing a reliable solution for high-speed scanning needs. Whether used in interferometry, optical coherence tomography, or other sophisticated optical applications, the Linear Axis Fast Scanning Mirror stands out as a high-performance, compact, and efficient choice for professionals in the field.
Linear Axis Fast Scanning Mirror for Phase Light Modulation
Specifications |
|
|---|---|
| Small Size: | 16 grams, width=12mm, depth=18mm, height=22mm |
| Mirror Working Aperture: | 5-8mm |
| Maximum Current: | 100mA |
| Coil Resistance: | 2.9 Ohm +/- 0.1 Ohm |
| Resonant Frequency Range: | 200 – 500Hz +/- 5 Hz |
| Regulated Current: | up to 80 mA |
| Resonant Frequency Range (Tunable): | 280 – 350 Hz |
Features
- Linear Vibration Stroke: Designed for precise linear motion, ideal for phase light modulation applications.
- Tunable Resonant Frequency: Adjustable resonant frequency range of 200 – 500 Hz, with a precision of +/- 5 Hz.
- Minimal Angular Deflection: Less than 10 arc seconds of parasitic angular deflection of reflected light, ensuring high accuracy.
- Compact and Lightweight: Weighs only 16 grams with dimensions of 12mm (width) x 18mm (depth) x 22mm (height).
- Customizable Wavelength Range: Adaptable to specific wavelength requirements for diverse applications.
- Efficient Power Usage: Maximum current of 100mA with a coil resistance of 2.9 Ohm +/- 0.1 Ohm.
- Wide Mirror Working Aperture: Available aperture sizes ranging from 5mm to 8mm.
- 1D Actuator by OFH: Powered with a standard sine wave generator, offering regulated current up to 80 mA and resonant frequency range of 280 – 350 Hz.
Applications
- Interferometry: Provides precise beam scanning for high-resolution interferometric measurements.
- Optical Coherence Tomography (OCT): Enhances imaging depth and resolution with stable linear scanning.
- Phase Light Modulation: Designed for applications requiring controlled light modulation.
- Advanced Optical Testing: Suitable for research and development in precision optical measurement systems.
Frequently Asked Questions
The Linear Mirror Scanner is used for phase light modulation in applications such as interferometry and optical coherence tomography.
The Linear Mirror Scanner can handle a maximum current of 100mA.
The resonant frequency range of the Linear Mirror Scanner is 280 – 350 Hz.
The Linear Mirror Scanner has a small size of 16 grams, width=12mm, depth=18mm, height=22mm.
