Description
The DTS0173 Pulse Compressor and Peak-Field Booster is a compact and lightweight device that utilizes nonlinear effects from an optical fiber to enhance the peak electric field generated by an ultrafast optical source.
With easy installation and alignment, this device allows for tunable pulse-width compression and spectral bandwidth expansion, resulting in a pulse with increased frequency content and shorter duration compared to the source.

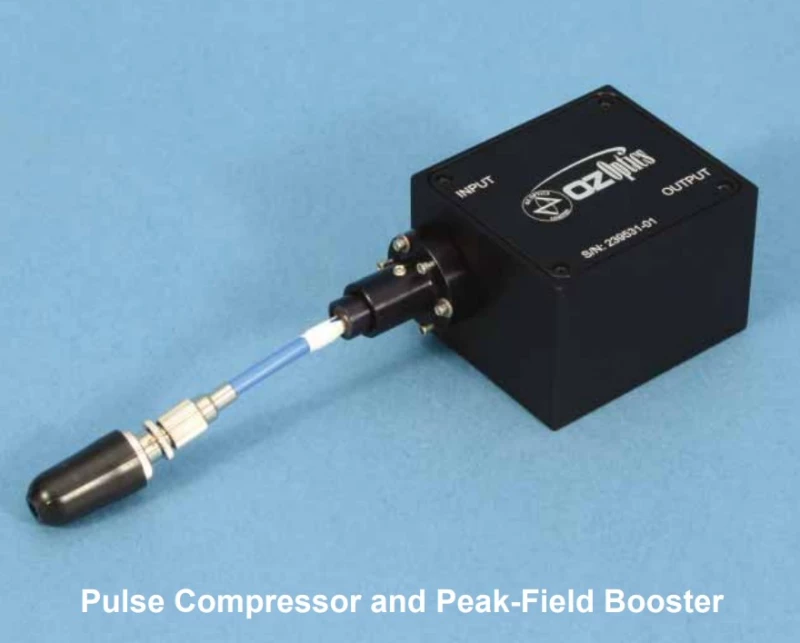

Pulse Compressor and Peak-Field Booster
Specifications
Wavelength: | 1035 nm |
---|---|
Input Peak Power (Measured At Ambient Temperature): | 41.7 kW |
Output Peak Power (Measured At Ambient Temperature): | 100.5 kW |
Pulse-width Compression Factor: | >3 |
Weight: | <0.3 kg |
Operating Temperature: | 15-25 °C |
Operating Relative Humidity: | 5-60 % |
Storage Temperature: | -40+40 °C |
Storage Relative Humidity: | 0-90 % |
Features
- Higher output peak field
- Easy installation and alignment
- Compact and lightweight platform
- Rugged and fiber-based design
- Tunable pulse-width compression
- Tunable spectral bandwidth expansion
Applications
- THz Generation and Detection
- Optical Microscopy
- Nonlinear Optics
Frequently Asked Questions
What is the purpose of the Pulse Compressor and Peak-Field Booster?
The Pulse Compressor and Peak-Field Booster enhances the peak electric field generated by an ultrafast optical source by utilizing nonlinear effects from an optical fiber.
What are the features of the Pulse Compressor and Peak-Field Booster?
The features include higher output peak field, easy installation and alignment, compact and lightweight platform, rugged and fiber-based design, tunable pulse-width compression, and tunable spectral bandwidth expansion.
What are the applications of the Pulse Compressor and Peak-Field Booster?
The applications include THz generation and detection, optical microscopy, and nonlinear optics.
How does the Pulse Compressor and Peak-Field Booster increase the peak electric field?
By fixing the device to the output of the source and making minor adjustments, the device can increase the peak electric field by a factor of more than two.
What are the performance specifications of the Pulse Compressor and Peak-Field Booster?
The performance specifications include a wavelength range of 1020-1050 nm, input peak power of 39.6-43.8 kW, output peak power of 95.4-105.5 kW, and a pulse-width compression factor greater than 3.
