Description
Compact spintronic terahertz emitter with integrated permanent magnet for plug-and-play operation.
Mounted inside a 360° rotation mount (1/2 Inch) for flexible adjustment of the terahertz polarization.
Ideally suited for focused excitation.

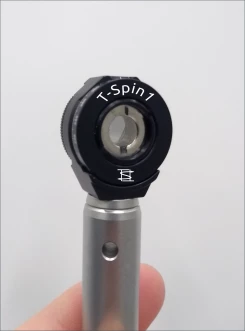

T-Spin1, Spintronic Terahertz Emitter
Features
- Ultrabroadband THz generation without spectral gaps
- High THz generation efficiency
- Fully passive operation
- Integrated magnet that allows full and easy 360° control of the linear THz polarization
- Long term stability
- Compatible with many optical setups
- THz beam parameters are inherited from the pump beam
- High efficiency for many pump wavelengths from the mid infrared to X rays
- Reflection and transmission geometry possible A THz pulse is emitted in forward and backward direction simultaneously
- Collinearity of pump and THz beam allow for easy implementation and straightforward alignment of your THz spectrometer
Applications
- Ultrabroadband linear THz spectroscopy
- Upscaling enables nonlinear THz spectroscopy
- THz near-field microscopy
- THz scanning tunneling microscopy
- X-ray beam tomography
- Ultrafast photodetector (THz pulse determined by pump pulse envelope)
Frequently Asked Questions
What is the T-Spin1 Spintronic Terahertz Emitter?
The T-Spin1 is a compact spintronic terahertz emitter with an integrated permanent magnet for easy operation. It is mounted inside a rotation mount for flexible adjustment of the terahertz polarization.
What are the features of the T-Spin1 Terahertz Emitter?
The T-Spin1 features ultrabroadband THz generation without spectral gaps, high THz generation efficiency, fully passive operation, and compatibility with many optical setups. It also has an integrated magnet for 360° control of the linear THz polarization.
What applications is the T-Spin1 Terahertz Emitter suitable for?
The T-Spin1 is suitable for ultrabroadband linear THz spectroscopy, nonlinear THz spectroscopy, THz near-field microscopy, THz scanning tunneling microscopy, X-ray beam tomography, and ultrafast photodetector applications.
What are the dimensions of the T-Spin1 Terahertz Emitter?
The dimensions of the T-Spin1 Terahertz Emitter are 11.4 mm outer diameter, 6.0 mm inner diameter, and 3.0 mm thickness.
What is the THz band-width and THz electric-field strength of the T-Spin1 Terahertz Emitter?
The THz band-width of the T-Spin1 is 0.1-30 THz with a pump pulse duration of 15 fs. The THz electric-field strength is 100 V/cm under ideal excitation conditions.
