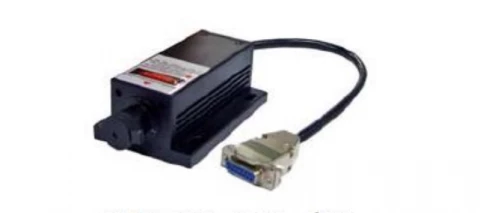

Thumbnail of FPYL-589-XXT-S Orange DPSS Laser photo 1

Description

The FPYL-589-XXT-S is an orange DPSS (Diode-Pumped Solid-State) laser designed for precision applications. With a wavelength of 589nm and adjustable output power ranging from 1mW to 50mW, this laser provides a stable and reliable performance.

It operates in continuous wave (CW) mode and features a TEM00 transverse mode, ensuring high-quality beam characteristics. The laser offers low power stability, quick warm-up time, and excellent pointing stability. It is suitable for a wide range of applications that require an orange laser source.

FPYL-589-XXT-S Orange DPSS Laser

Visit the FLC - Frankfurt Laser Company GmbH Store

Specifications

Wavelength: 589 nm
Max Output Power: 50 mW
Cooling Method: Active cooling
Tunability: Fixed Wavelength
Control Interface: Other (not specified)
Beam Diameter At The Aperture (1/e²): ~0.7 mm
Beam Divergence (full Angle): <1.5 mrad
Warm-up Time (minutes): <5
Pointing Stability After Warm-up: <0.05 mrad
Beam Height From Base Plate: 19 mm
Polarisation Ratio: >100:1
Modulation: TTL/Analogue (on request)
Operating Temperature: 10-35 °C
Expected Lifetime (hours): 10000
M² Factor: <1.5
Power Stability (RMS, Over 4 Hours): <5 %
Transverse Mode: TEM00

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Orange DPSS laser
  • Wavelength of 589nm
  • Adjustable output power from 1mW to 50mW
  • TEM00 transverse mode
  • Continuous wave (CW) operation
  • Low power stability (<2%, <3%, <5%*)
  • M² factor less than 1.5
  • Beam diameter at the aperture (1/e²) of approximately 0.7mm
  • Beam divergence (full angle) of less than 1.5mrad
  • Quick warm-up time (<5 minutes)
  • Excellent pointing stability after warm-up (<0.05mrad)
  • Beam height from base plate of 19mm
  • Polarisation ratio greater than 100:1
  • Modulation options available (TTL/Analogue, on request)
  • Operating temperature range of 10°C to 35°C
  • Expected lifetime of 10,000 hours

Applications

  • Laser alignment and positioning
  • Scientific research
  • Spectroscopy
  • Biomedical imaging
  • Optogenetics
  • Holography
  • Laser display and shows
  • Metrology and measurements

Frequently Asked Questions

What are the different types of laser products offered by FLC?
FLC offers a wide range of diode-pumped solid state laser products, including the smallest DPSS laser heads, low cost modules, low power and high power laser systems, and high quality single longitudinal mode laser systems with different power output and wavelengths.
What is the power output of the FPYL-589-XXT-S?
The power output of the FPYL-589-XXT-S varies depending on the specific product, as FLC offers a range of power outputs for their diode-pumped solid state laser products.
What are some applications of the FPYL-589-XXT-S?
The FPYL-589-XXT-S is used in fluorescence and biomedical imaging, Raman spectroscopy and microscopy, lithography, and other applications.
What is the FPYL-589-XXT-S?
The FPYL-589-XXT-S is a diode-pumped solid state laser product offered by FLC.
