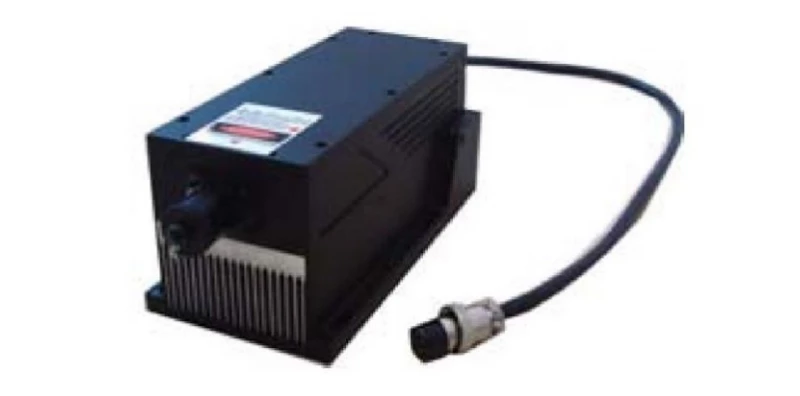

Thumbnail of FPYL-526.5-XXXXT Green High-Power DPSS Laser photo 1

Description

The FPYL-526.5-XXXXT is a high-power green DPSS (Diode-Pumped Solid-State) laser. With a wavelength of 526.5nm and adjustable output power ranging from 300mW to 1000mW, this laser provides a stable and reliable performance. It operates in continuous wave (CW) mode and offers a near TEM00 transverse mode. The laser features a compact design, low power stability, and a quick warm-up time, making it suitable for various applications.

FPYL-526.5-XXXXT Green High-Power DPSS Laser

Visit the FLC - Frankfurt Laser Company GmbH Store

Specifications

Wavelength: 526.5 nm
Max Output Power: 1000 mW
Cooling Method: Other (not specified)
Tunability: Fixed Wavelength
Control Interface: Other (not specified)
Transverse Mode: Near TEM00
Operating Mode: CW
Power Stability (RMS, Over 4 Hours): <5, %
Warm-up Time (minutes): <10
M² Factor: 3.0~5.0
Beam Divergence (full Angle): <1.5 mrad
Beam Diameter At The Aperture: ~3.0 mm
Beam Height From Base Plate: 68.2 mm
Polarisation Ratio: >100:1
Operating Temperature: 10-35 °C
Expected Lifetime (hours): 10000

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-power green DPSS laser
  • Wavelength of 526.5nm
  • Adjustable output power from 300mW to 1000mW
  • Near TEM00 transverse mode
  • Continuous wave (CW) operation
  • Low power stability (<5%, <10%*)
  • Quick warm-up time (<10 minutes)
  • M² factor of 3.0~5.0
  • Beam divergence of less than 1.5mrad
  • Beam diameter at the aperture of approximately 3.0mm
  • Beam height from base plate of 68.2mm
  • Polarisation ratio greater than 100:1
  • Operating temperature range of 10°C to 35°C
  • Expected lifetime of 10,000 hours

Applications

  • Laser displays and shows
  • Laser projectors
  • Biomedical imaging
  • Scientific research
  • Industrial applications
  • Laser marking and engraving
  • Optical communication
  • Spectroscopy

Frequently Asked Questions

What types of laser products does FLC offer?
FLC offers a wide range of diode-pumped solid state laser products, including the smallest DPSS laser heads, low cost modules, low power and high power laser systems, and high quality single longitudinal mode laser systems.
What are some applications of the FPYL-526.5-XXXXT DPSS Laser?
The FPYL-526.5-XXXXT DPSS Laser is used in fluorescence and biomedical imaging, Raman spectroscopy and microscopy, lithography, and other applications.
What is the power output and wavelength of the FPYL-526.5-XXXXT DPSS Laser?
The power output and wavelength of the FPYL-526.5-XXXXT DPSS Laser varies depending on the specific model.
Is the FPYL-526.5-XXXXT DPSS Laser a continuous wave laser?
Yes, the FPYL-526.5-XXXXT DPSS Laser is a continuous wave diode-pumped solid state (DPSS) laser.
What is the FPYL-526.5-XXXXT DPSS Laser?
The FPYL-526.5-XXXXT DPSS Laser is a diode-pumped solid state laser product offered by FLC.
