UV Acousto-optic Q-switched DPSS Laser FPYL-355-XXXT-Q-AO

Name: UV Acousto-optic Q-switched DPSS Laser FPYL-355-XXXT-Q-AO
Brand: Frankfurt Laser Company
Availability: InStock

Description

The FPYL-355-XXXT-Q-AO is a UV (Ultraviolet) acousto-optic Q-switched DPSS (Diode-Pumped Solid-State) laser designed for precise and efficient laser applications that require a pulsed UV laser beam at a wavelength of 355nm.

This laser features a Q-switched operation mode utilizing an acousto-optic modulator, allowing for high pulse energies and adjustable repetition rates. With its compact size, excellent beam quality, and stable performance, this laser is well-suited for applications in research, manufacturing, and other demanding environments.

Specifications

Wavelength:	355 nm
Max Output Power:	100 mW
Cooling Method:	Other (not specified)
Tunability:	Multi-Wavelength Tunable
Control Interface:	Other (not specified)
Expected Lifetime:	>5000 hours
Power Supply Voltage:	90-264 V
Operating Temperature:	10-35 °C

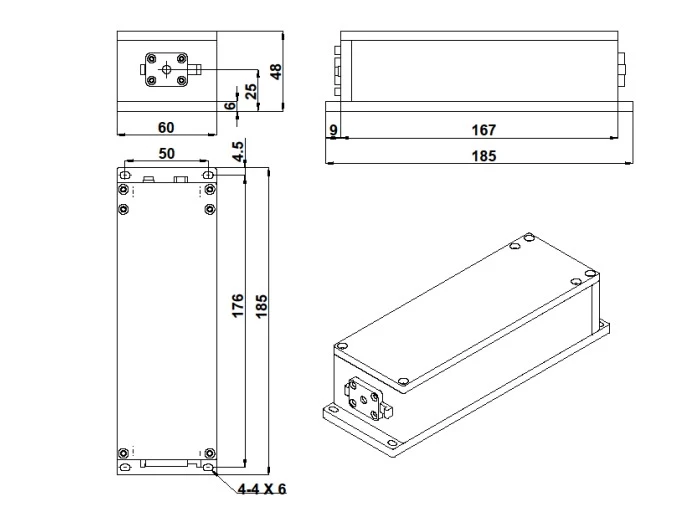

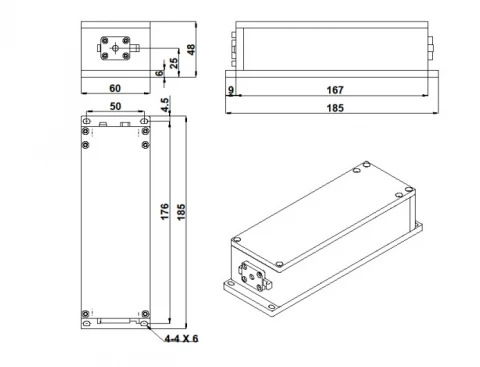

Beam Height From Base Plate:	25 mm
Polarization Ratio:	>100:1 (horizontal ±5°)
Beam Divergence (full Angle):	<5 mrad
Beam Diameter (1/e²):	~0.3 mm
M² Factor:	<1.5
Transverse Mode:	Near TEM00
Power Stability (RMS, Over 4 Hours):	<3 %
Pulse Duration (typical):	5-10 ns
Repetition Rate:	0.1-20 kHz
Single Pulse Energy:	1-40 µJ
Operation Mode:	Q-switched: AO

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Wavelength of 355nm with ±1nm accuracy
Average output power range of 1 - 100mW (to be specified)
Operation mode: Q-switched: AO (Acousto-optic)
Single pulse energy range of 1 - 40µJ
Adjustable repetition rate range of 0.1 - 20kHz
Typical pulse duration of 5~10ns at <10kHz (depends on power and repetition rate)
Power stability of less than 3% (RMS, over 4 hours)
Transverse mode: Near TEM00
M² Factor less than 1.5
Small beam diameter (1/e²) of approximately 0.3mm (1.2mm optional)
Low beam divergence (full angle) of less than 5mrad (1.5mrad optional)
High polarization ratio of greater than 100:1 (horizontal ±5°)
Fast warm-up time of less than 10 minutes
Beam height from the base plate of 25mm
Operating temperature range of 10°C to 35°C
Power supply voltage range of 90 - 264V
Expected lifetime of over 5000 hours

Applications

Micromachining
Laser marking and engraving
PCB (Printed Circuit Board) manufacturing
UV laser-induced fluorescence
Scientific research
Biomedical applications
Spectroscopy
Optical metrology
Material processing

Name

Work Email

Organization (recommended)

Your message to supplier

Ships from:

Germany

Sold by:

Frankfurt Laser Company

On FindLight:

since 2015

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the different types of DPSS laser products offered by FLC?

FLC offers a wide range of diode-pumped solid state laser products, including the smallest DPSS laser heads, low cost modules, low power and high power laser systems, and high quality single longitudinal mode laser systems.

What are the applications of the FPYL-355-XXXT-AOM DPSS Laser?

The FPYL-355-XXXT-AOM DPSS Laser is used in fluorescence and biomedical imaging, Raman spectroscopy and microscopy, lithography, and other applications.

What is the power output and wavelength of the FPYL-355-XXXT-AOM DPSS Laser?

The power output and wavelength of the FPYL-355-XXXT-AOM DPSS Laser vary depending on the specific model.

Is the FPYL-355-XXXT-AOM DPSS Laser a continuous wave laser?

Yes, the FPYL-355-XXXT-AOM DPSS Laser is a continuous wave diode-pumped solid state (DPSS) laser.

What is the FPYL-355-XXXT-AOM DPSS Laser?

The FPYL-355-XXXT-AOM DPSS Laser is a diode-pumped solid state laser product offered by FLC.
