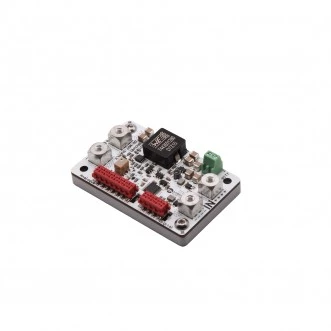

Laser Diode Controller OEM CW 15A 10V Model: SF6015 v2.1
Description
SF6XXX is a series of high power, compact OEM constant current laser diode drivers. This unique laser driver circuit solution allows achieving high efficiency (up to 97%) and high power density. Aluminum base plate provides effective heat removal from laser diode driver module via water or air cooling. This laser current driver has generous amount of protection features for a safe operation of laser diodes.
Laser Diode Controller OEM CW 15A 10V Model: SF6015 v2.1
Specifications |
|
|---|---|
| Output Current Range (I): | 0-15 A |
| Output Voltage Range (0.75*Vin Max) (V): | 1-10 V |
| Setpoint Resolution: | 0.01 A |
| Rise Time: (Iout = 7,5A): | min - 150μs; max - 500μs |
| Rise Time: (Iout = 15A): | min - 140μs; max - 500μs |
| Fall Time: | min - 250μs; max - 1200μs |
| Current Stability: | <0.2 % |
| Current Setpoint Absolute Accuracy: | <1 % |
| Dimensions: | 57.9 mm x 36.8 mm x 15 mm |
| Weight: | 55 g |
| Input Voltage Range (Vin): | 10-14 V |
| User Interface: | Analog/ RS-232 / UART (USB as a paid option 20 €) / Enable / Disable Input Signal Input |
| Laser Diode Protection: | Soft-Start Ramp to Current Setpoint/ User Adjustable Current Limit/ Over-Current Protection Fast Shutdown/ Over-Temperature Thermal Warning and Shutdown /Reverse Current Protection/ Crowbar Circuit Protection/ Disable Input/ Interlock |
Features
- ULTRA-COMPACT 57.9 mm x 36.8 mm x 15 mm
- Very High efficiency up to 97%
- NTC thermistor input (for shutdown driver when the laser diode was overheating)
- Analog Control Signal/ RS-232 / UART/ (USB as a paid option 20 €)
- Soft-Start Current Ramp to User Set-Point
- Possibility to calibrate current within 5%
- Multiple Layers of Laser Diode Protection

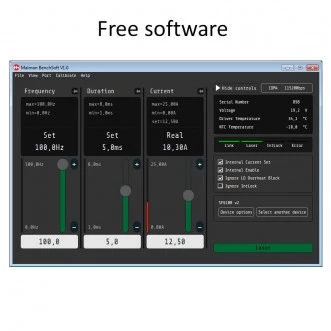

- Free software
Applications
- Driving controlling Laser Diodes through high power laser drivers for laser marking, welding, soldering, and cutting applications, as well as medical equipment, laser measurement equipment, spectrometers, LIDAR, range finders and laboratory test set-ups.
- These devices are an excellent choice for laser diodes from II-VI Laser Enterprise, BWT Beijing Laser Diodes, IPG Photonics, Dilas Diodenlaser, Lumentum and others.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Russia
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
Yes, the SF6015 v2.1 comes with its own software.
The SF6015 v2.1 is used for driving and controlling laser diodes in various applications such as laser marking, welding, soldering, cutting, medical equipment, laser measurement equipment, spectrometers, LIDAR, range finders, and laboratory test set-ups.
The SF6015 v2.1 has ultra-compact dimensions of 57.9 mm x 36.8 mm x 15 mm.
The SF6015 v2.1 has multiple layers of laser diode protection, including thermal warning and shutdown, reverse current protection, and crowbar circuit protection.
The SF6XXX is a series of high power, compact OEM constant current laser diode drivers.
