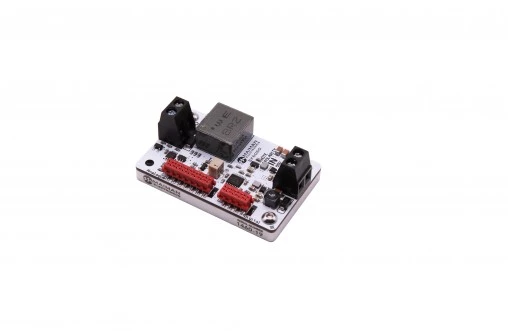

High Power Laser Diode Driver OEM CW 15А 40V Model: SF6060 v1.0
Description
SF6XXX is a series of high power, compact OEM constant current laser diode drivers. This unique laser driver circuit solution allows achieving high efficiency (up to 97%) and high power density. Aluminum base plate provides effective heat removal from laser diode driver module via water or air cooling. This laser current driver has generous amount of protection features for a safe operation of laser diodes.
High Power Laser Diode Driver OEM CW 15А 40V Model: SF6060 v1.0
Specifications |
|
|---|---|
| Output Current Range (I): | 0 ~ 15 A |
| Output Voltage (0.73*Vin Max) (V): | 5 ~ 40 V |
| Minimum Current Set-Point Step Size: | 0.01 A |
| Rise Time (Iout = 7,5A): | min - 60μs; max - 100μs |
| Rise Time (Iout = 15A): | min - 60μs; max - 100μs |
| Fall Time : | min - 30μs; max - 80μs |
| Current Stability: | <0.2 % |
| Current Setpoint Absolute Accuracy: | <1 % |
| Dimensions: | 57.9 mm x 36.8 mm x 21 mm |
| Weight: | 60 g |
| Input Voltage Range (Vin): | 12-55 V |
| User Interface: | Analog/ RS-232 / UART (USB as a paid option 20 €) / Enable / Disable Input Signal Input |
| Laser Diode Protection: | Soft-Start Ramp to Current Setpoint/ User Adjustable Current Limit/ Over-Current Protection Fast Shutdown/ Over-Temperature Thermal Warning and Shutdown /Reverse Current Protection/ Crowbar Circuit Protection/ Disable Input/ Interlock |
Features
- ULTRA-COMPACT 57.9 mm x 36.8 mm x 21 mm
- Very High efficiency up to 97%
- NTC thermistor input (for shutdown driver when the laser diode was overheating)
- Analog Control Signal/ RS-232 / UART (USB as a paid option 20 €)
- Soft-Start Current Ramp to User Set-Point
- Possibility to calibrate current within 5%
- Multiple Layers of Laser Diode Protection

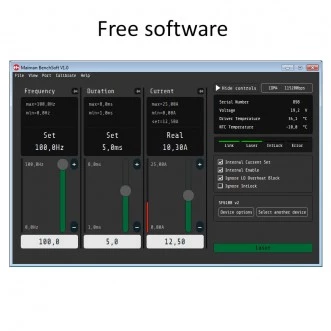

- Free software
Applications
- Driving controlling Laser Diodes through high power laser drivers for laser marking, welding, soldering, and cutting applications, as well as medical equipment, laser measurement equipment, spectrometers, LIDAR, range finders and laboratory test set-ups.
- These devices are an excellent choice for laser diodes from II-VI Laser Enterprise, BWT Beijing Laser Diodes, IPG Photonics, Dilas Diodenlaser, Lumentum and others.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Russia
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
Yes, the SF6060 laser diode driver comes with free software.
The SF6060 laser diode driver is used for driving and controlling laser diodes in applications such as laser marking, welding, soldering, cutting, medical equipment, laser measurement equipment, spectrometers, LIDAR, range finders, and laboratory test set-ups.
The SF6060 laser diode driver has multiple layers of laser diode protection, including thermal warning and shutdown, reverse current protection, and crowbar circuit protection.
The SF6060 laser diode driver is ultra-compact, measuring 57.9 mm x 36.8 mm x 21 mm.
The SF6XXX series is a line of high power, compact OEM constant current laser diode drivers with high efficiency and power density.
