Description

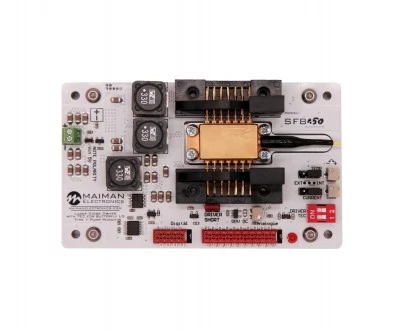

SF8XXX-ZIF14 series laser diode controller is specially designed for laser diodes in butterfly packaging with 14 pin configuration. This driver includes high stability current source (+/-0.01mА) for laser diodes and TEC for precision temperature control through a Peltier element (TEM) (+/-0.01 °C).

The driver has an integrated mounting Azimuth socket for butterfly packaged devices and a large heat sink for stable heat dissipation.

Laser Diode Controller with TEC for Butterfly LD 14 pin Pinout Type 1 or Type 2 Model: SF8XXX-ZIF14

Visit the Maiman Electronics SL Store

Specifications

Drive Regime: CW, Pulsed
Output Current (max): 1.5 A
Output Voltage (max): 3 V
Maximum Current LD (I): 250; 750; 1500 mA
Output Voltage LD (V): 0.5-3 V
Current Stability: 0.1 %
Current Set Accuracy: +/- 1 %
Output Current Noise: 10-15 µA
ТЕС Output Power: ±4 A
TEC Output Voltage: ±4 V
TEC Output Current Ripple: 2 ~ 4 mА
TEC Feedback Sensor: 10 kOhm NTC
Temperature Control Range: +15 to +40 °C
Dimensions: 101.6 x 61 x 28.3 mm
Weight: 142 g
User Interface: RS-232 / UART/ USB/Analog/Trim Potentiometers for Driver Current and TEC Power
Laser Diode Protection: Soft-Start Current Ramp/ Current limit/ Temperature limit/ Reverse current protection/ ESD and transient protection
Input Voltage Supply (Vin): 5 V
Warranty Period: 1-year manufacturer's warranty

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • All-in-One Current Source, Temperature Controller and Mount with Azimuth ZIF Socket for Butterfly
  • Compatible with Type 1 and Type 2 Butterfly 14-pin Laser Diode (depending on the model
  • LD Low current ripple: ≤ 10uA
  • Current stability < 0.1%
  • Integrated PID controller, doesn't require setup
  • Soft-Start Current Ramp, Current Limit, Temperature Limit for Laser Diode Protection
  • Free software

Applications



  • Driving/controlling Butterfly Laser Diodes with 14 pin Pinout Type 1 or Type 2 (depending on the model).
  • The main fields of application is laser pumping, laser spectroscopy, laboratory test set-ups.
  • These devices are an excellent choice for laser diode from II-VI Laser Enterprise, Eblana Photonics, 3SP Technologies, Furukawa and others.



Frequently Asked Questions

Does the SF8XXX-ZIF14 series laser diode controller come with software?
Yes, the SF8XXX-ZIF14 series laser diode controller comes with free software.
What are the features of the SF8XXX-ZIF14 series laser diode controller?
The SF8XXX-ZIF14 series laser diode controller features an all-in-one current source, temperature controller and mount with azimuth ZIF socket for butterfly, low current ripple, current stability of less than 0.1%, integrated PID controller, soft-start current ramp, current limit, and temperature limit for laser diode protection.
What are the main applications of the SF8XXX-ZIF14 series laser diode controller?
The main fields of application are laser pumping, laser spectroscopy, and laboratory test set-ups.
What is the SF8XXX-ZIF14 series laser diode controller designed for?
The SF8XXX-ZIF14 series laser diode controller is specially designed for laser diodes in butterfly packaging with 14 pin configuration.
What type of laser diodes is the SF8XXX-ZIF14 series laser diode controller compatible with?
The SF8XXX-ZIF14 series laser diode controller is compatible with Type 1 and Type 2 Butterfly 14-pin Laser Diode (depending on the model).

Got more questions? Use the inquiry form to ask the supplier directly.
